03- Mechanic - Steering

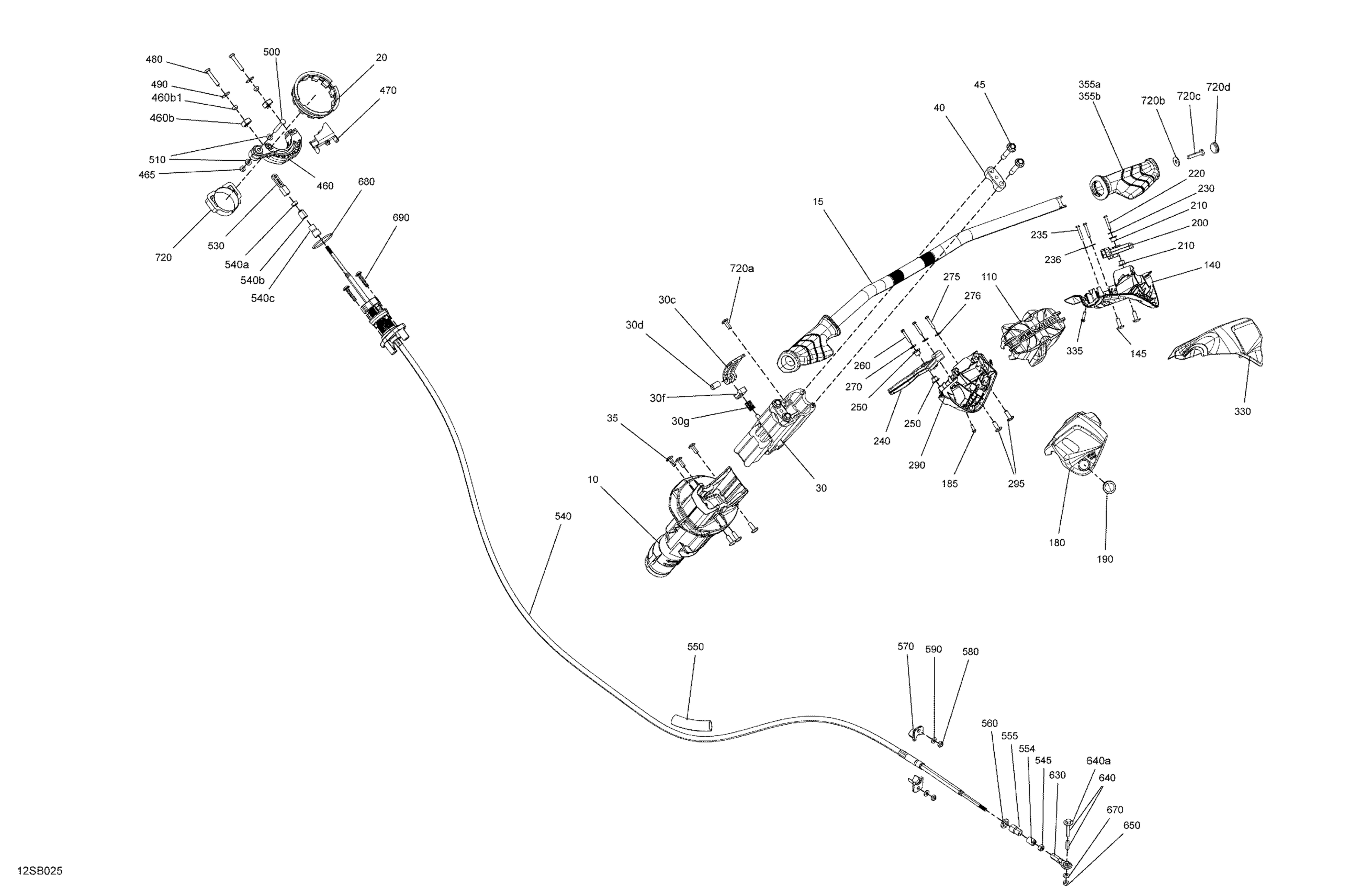

Sea-doo 003 - SPARK TRIXX, 2022 03- Mechanic - Steering Diagram
#
10
Steering Column
277001998
$214.99
15
Dragon Red, Handlebar
277002173
$105.99
15
Dazzling Blue, Handlebar
277002204
$105.99
20
Wear Ring
277001874
$12.17
30
Adjustable Riser Block | Includes 30 to 30g
277002093
$153.49
30c
Anodized Lock Lever
277002094
$38.99
30d
Lever Pin
506153052
$6.89
30f
Compression Bloc
506153045
$3.29
30g
Spring
506152820
$9.09
35
Torx Truss Screw M6 X 16
250000922
$1.90
40
Steering Support | Includes 40 to 40a
506152751
$13.99
45
Hex. Screw Flange DIN.6921 S.Grip
250000834
$3.91
110
Deep Black, Steering Pad
277002005
$28.99
140
RH Lower Housing
277002007
$104.99
145
Torx Truss Screw M6 X 16
250000922
$1.90
180
LH Cover
277002237
$18.99
185
Hex. Flange Screw K40 X 16
241141660
$1.48
190
Red, Knob Switch
277001887
$9.69
200
Hand Lever Accelerator
277002138
$38.99
210
Bushing
293900091
$4.52
220
Hex. Flange Screw K40 X 25
241142560
$2.64
230
Flat Washer 4 mm, Stainless
234042600
$1.15
235
Hex. Flange Screw K40 X 25
241142560
$2.64
236
Flat Washer 4 mm, Stainless
234042600
$1.15
240
Reverse Handle
277001945
$43.99
250
Bushing
293900091
$4.52
260
Hex. Flange Screw K40 X 25
241142560
$2.64
270
Flat Washer 4 mm, Stainless
234042600
$1.15
275
Hex. Flange Screw K40 X 25
241142560
$2.64
276
Flat Washer 4 mm, Stainless
234042600
$1.15
290
Deep Black, LH Lower Housing
277002006
$104.99
295
Torx Truss Screw M6 X 16
250000922
$1.90
330
RH Cover
277002238
$18.99
335
Hex. Flange Screw K40 X 16
241141660
$1.48
355a
Deep Black, LH Handle Grip
277001958
$20.99
355a
Can-Am Red, LH Handle Grip
277002015
$20.99
355b
Deep Black, RH Handle Grip
277001946
$20.99
355b
Can-Am Red, RH Handle Grip
277002014
$20.99
460
Support Ass'y | Includes 460 to 460b
277002179
$22.49
460b
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
460b1
Elastic Stop Nut M6, Brass
232561200
$4.23
465
Elastic Stop Nut M6, Brass
232561200
$4.23
470
Spacer
277001654
$15.99
480
Hex. Screw M6 X 35
207163560
$1.49
490
Flat Washer M6, Stainless
234062600
$0.77
500
Hex. Screw M6 X 40
207064060
$1.69
510
Stainless Flat Washer M6
234061600
$0.33
530
Ball Joint
277001180
$35.99
540
Steering Cable | Includes 540 to 540c
277002065
$259.49
540a
Hex. Nut 1/4"-28
211100056
$0.69
540b
Wiper Rod
277001582
$11.11
540c
End Piece
277001583
$14.49
545
Hex. Nut 1/4"-28
211100056
$0.69
550
Sheat Corrugated 19 MM ID
276000446
$0.55
554
Wiper Rod
277001582
$11.11
555
End Piece
277001583
$14.49
560
Rubber Washer
293830063
$1.90
570
Ring Halves
277001856
$12.99
580
Elastic Stop Nut M6, Brass
232561200
$4.23
590
Stainless Flat Washer M6
234061600
$0.33
630
Ball Joint
277000775
$51.99
640
Hex Sems Screw M6X35
250000970
$2.11
640a
Hex Screw SEMS M6X35, SS
250000969
$2.11
650
Elastic Stop Nut M6, Brass
232561200
$4.23
670
Stainless Flat Washer M6
234061600
$0.33
680
O-Ring
293300176
$1.36
690
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
720
Wear Ring
277002318
$15.99
720a
Torx Truss Screw M6 X 16
250000922
$1.90
720b
Flat Washer M6, Stainless
234062600
$0.77
720c
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
720d
Black, Cap
277000203
$9.39
