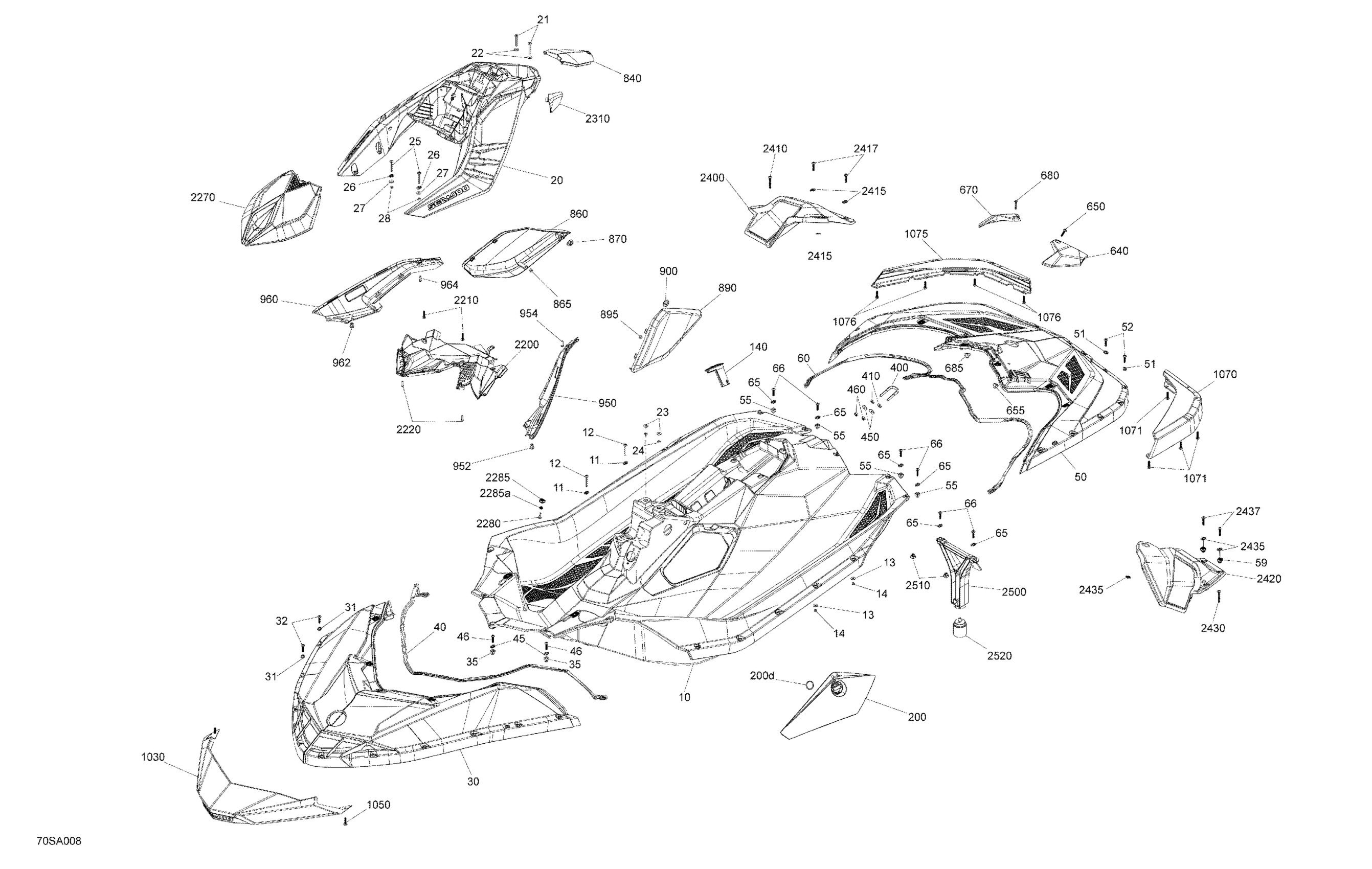

Sea-doo SPARK TRIXX, 2021 Body - System Diagram

#

Description
Price

10

Deep Black, Mid Deck

291004646

$1.00

11

Oval Washer

291003880

$1.77

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

13

Flat Washer M6, Stainless

234062600

$0.77

14

Elastic Stop Nut M6, Brass

232561200

$4.23

20

Can-Am Red, Console

291005484

$139.99

20

Console Front | Includes 20 to 20a

291005057

$184.99

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

22

Flat Washer M6, Stainless

250200150

$3.49

23

Flat Washer M6, Stainless

234062600

$0.77

24

Elastic Stop Nut M6, Brass

232561200

$4.23

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

26

Oval Washer

291003880

$1.77

27

Flat Washer M6, Stainless

234062600

$0.77

28

Elastic Stop Nut M6, Brass

232561200

$4.23

30

Deep Black, Front Deck

291004727

$264.99

30

Quetzal Green, Front Deck | Model Quetzal Green

291004978

$264.99

31

Oval Washer

291003880

$1.77

32

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

35

Insert

291003793

$3.56

40

Seal Joint

293250341

$41.49

45

Oval Washer

291003880

$1.77

46

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

50

Deep Black, Drilled Rear Deck

291005515

$264.99

50

Quetzal Green, Rear Deck | Model Quetzal Green

291004979

$264.99

51

Oval Washer

291003880

$1.77

52

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

55

Insert

291003793

$3.56

59

Insert

291003793

$3.56

60

Seal Joint

293250340

$41.49

65

Oval Washer

291003880

$1.77

66

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

140

Deep Black, Rear Access Cover

291003390

$42.99

200

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$47.99

200d

O-Ring

293300121

$8.32

400

U-Clamp

292000933

$59.49

410

Flat Washer M8.5 x 18

293050001

$3.07

450

Flat Washer 8 mm, Stainless

234082600

$2.43

460

Hex. Elastic Nut M8 Brass

232581200

$2.22

640

Black, Rear Support LH

291004545

$76.99

650

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

655

Insert

291003793

$3.56

670

Black, RH Rear Support

291004546

$76.99

680

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

685

Insert

291003793

$3.56

840

Deep Black, Glove Box Cover

291003378

$65.99

860

RH Molded Knee Pad

291005094

$126.99

860

Manta Green, RH Knee Pads | Model Manta Green

291004732

$111.49

865

Rubber Bumper

293830005

$8.09

870

Oval Washer

705000321

$5.61

890

LH Molded Knee Pad

291005093

$126.99

890

Manta Green, LH Knee Pads | Model Manta Green

291004736

$110.99

895

Rubber Bumper

293830005

$8.09

900

Oval Washer

705000321

$5.61

950

LH Panel Trim This part replaces 291003696.

291004576

$28.99

952

Tuflok Plastic Rivet

293150230

$1.47

954

Hex. Screw 10-14 X 7/8”

211000023

$3.59

960

Deep Black, RH Panel Trim

291004577

$28.99

962

Tuflok Plastic Rivet

293150230

$1.47

964

Hex. Screw 10-14 X 7/8”

211000023

$3.59

1030

Front Bumper

291004567

$116.49

1050

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1070

Black, LH Rear Bumper

291004568

$37.99

1071

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

1075

Black, RH Rear Bumper

291004569

$37.99

1076

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2200

Black, Inferior Cover

291004575

$93.99

2210

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2220

Hex. Screw 10-14 X 7/8”

211000023

$3.59

2270

Deep Black, Console Trim

291005518

$80.99

2270

Manta Green, Frontal Trim | Model Manta Green

291004981

$28.99

2280

Torx-Truss M/S Stlss M6 X 20

250000829

$3.35

2285

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

2285a

Elastic Stop Nut M6, Brass

232561200

$4.23

2310

Cap

291003702

$18.99

2310

Cap

291005556

$15.49

2400

Can-Am Red, RH Footrest Ass'y

291004539

$76.99

2410

Plastite Torx Screw Cone HD. M6.81X

250001144

$4.76

2415

Oval Washer

291003880

$1.77

2417

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2420

Black, LH Footrest Ass'y

291004540

$76.99

2430

Plastite Torx Screw Cone HD. M6.81X

250001144

$4.76

2435

Oval Washer

291003880

$1.77

2437

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

2500

Rear Support

291003440

$25.99

2510

Insert

291003793

$3.56

2520

Rear Support Mount

291003694

$20.99
