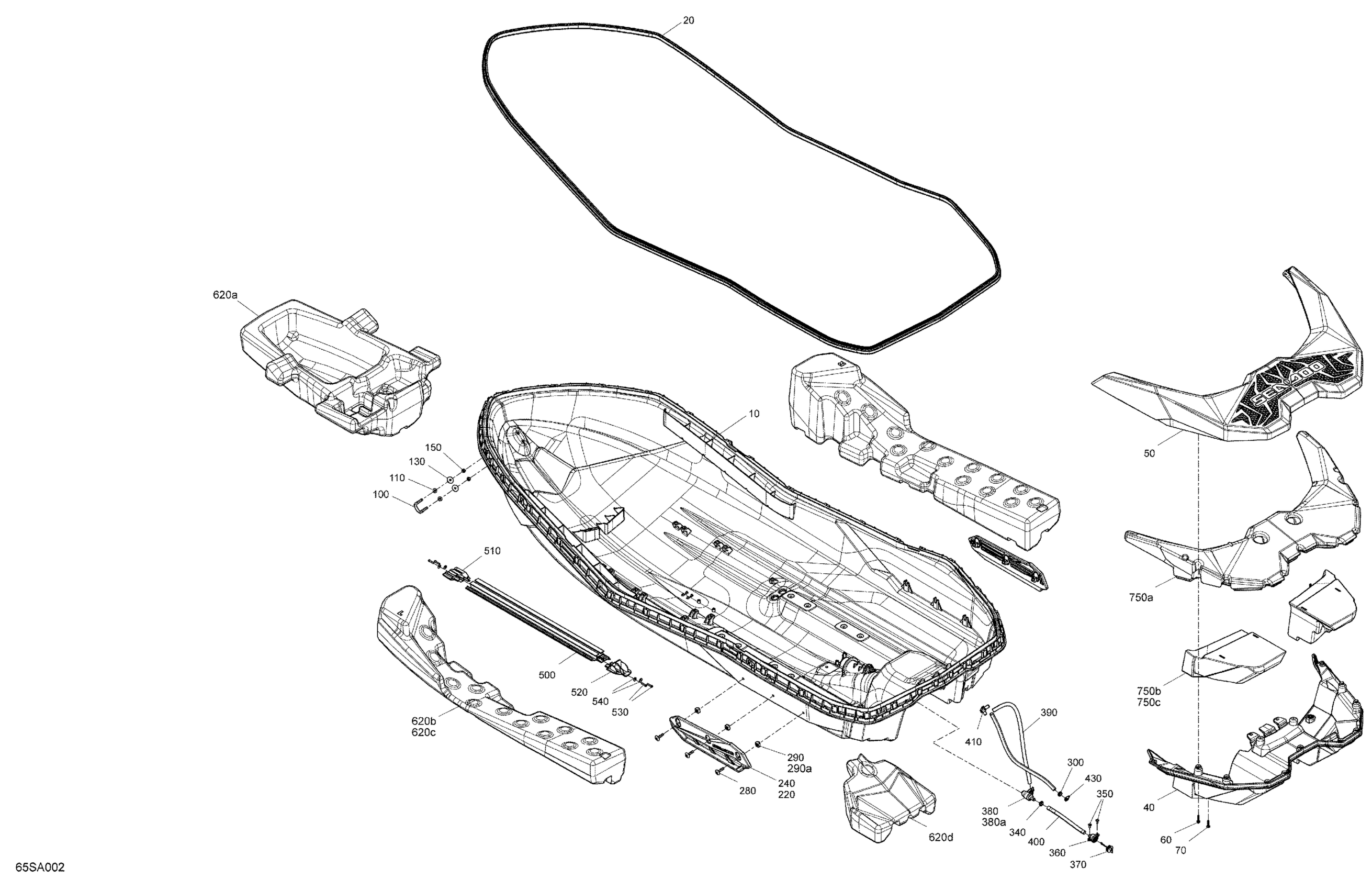

Sea-doo SPARK TRIXX, 2021 Body - Hull Diagram

#

Description
Price

10

Hull | Includes 10 to 10a

295501188

$1.00

10a

Hull Insert Kit | Includes 10a to 10a3

295501139

$43.99

10a1

Torx-Truss M/S Stlss M6 X 20

250000829

$3.35

10a2

Drill Bite N Size

529036505

Unavailable

20

Seal Joint

293250338

$64.99

40

Hull Extension Black

292002010

$144.99

50

Deck

291004596

$204.99

60

Hex. Flange Screw M6.81 X 30

243163060

$2.32

70

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

100

U-Clamp

292000933

$59.49

110

Flat Washer M8.5 x 18

293050001

$3.07

130

Flat Washer 8 mm, Stainless

250200175

$3.06

150

Hex. Elastic Nut M8 Brass

232581200

$2.22

220

RH Sponson

292002009

$82.99

240

LH Sponson

292002008

$82.99

280

Torx Screw M8 X 35

250000697

$3.91

290

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

290a

Hex. Elastic Nut M8 Brass

232581200

$2.22

300

Rubber Washer

293830063

$1.90

340

Rubber Washer

293830063

$1.90

350

Torx Screw M6 X 14

250000384

$7.51

360

Neck Drain

292001552

$14.49

370

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

380

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

380a

Floating Ball

293830080

$7.19

390

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

400

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

410

Fitting Elbow 90°

293710152

$18.49

430

Tridon Gear Clamp

293650171

$3.09

500

Hull Reinforcement

292001549

$92.99

510

Front End Piece Reinforcement

292001550

$12.99

520

Rear End Piece Reinforcement

292001551

$12.99

530

Hex. Flange Screw K50 X 25

250000680

$1.89

540

Flat Washer 5 mm, Stainless

234052600

$0.77

620a

Front Float

292001439

$92.99

620b

LH Float

292001467

$76.99

620c

RH Float

292001468

$76.99

620d

Rear Float

292001469

$27.99

750a

Rear Deck Extension Float

292001504

$75.99

750b

LH Extension Float

292001505

$27.99

750c

RH Extension Float

292001506

$27.99
