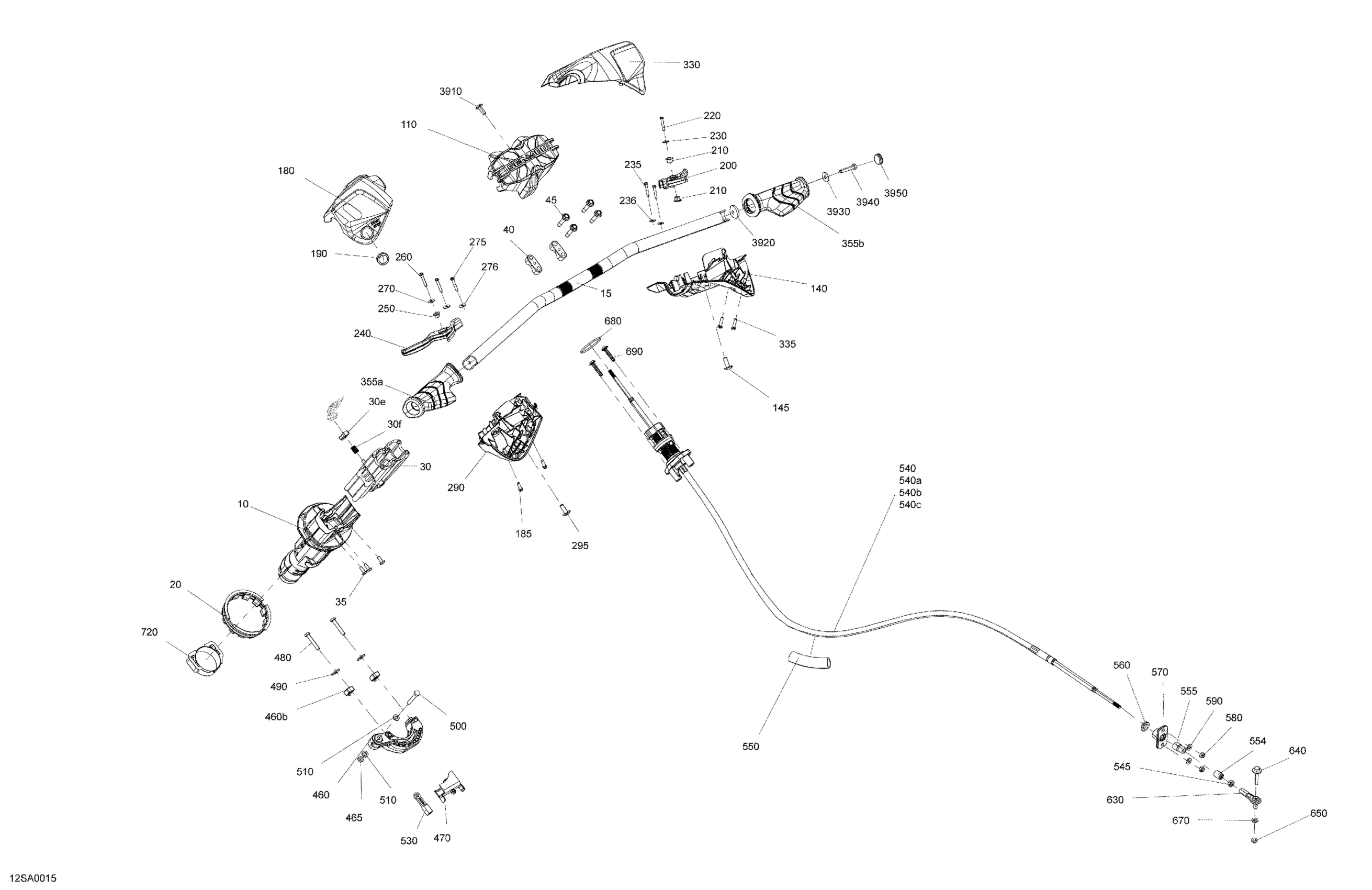

Sea-doo SPARK TRIXX, 2021 Mechanic - Steering Diagram

#

Description
Price

10

Steering Column

277001998

$167.02

15

Dragon Red, Handlebar

277002173

$96.24

15

Brighht White, Handlebar

277002172

$98.48

20

Wear Ring

277001874

$9.74

30

Adjustable Riser Block | Includes 30 to 30g

277002093

$124.12

30e

Compression Bloc

506153045

$2.64

30f

Spring

506152820

$6.59

35

Torx Truss Screw M6 X 16

250000922

$1.56

40

Steering Support | Includes 40 to 40a

506152751

$10.09

45

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.25

110

Deep Black, Steering Pad

277002005

$22.07

140

RH Lower Housing

277002007

$79.92

145

Torx Truss Screw M6 X 16

250000922

$1.56

180

LH Cover

277002237

$13.62

185

Hex. Flange Screw K40 X 16

241141660

$1.25

190

Red, Knob Switch

277001887

$7.54

200

Hand Lever Accelerator

277002138

$30.52

210

Bushing

293900091

$3.34

220

Hex. Flange Screw K40 X 25

241142560

$2.17

230

Flat Washer 4 mm, Stainless

234042600

$0.92

235

Hex. Flange Screw K40 X 25

241142560

$2.17

236

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

250

Bushing

293900091

$3.34

260

Hex. Flange Screw K40 X 25

241142560

$2.17

270

Flat Washer 4 mm, Stainless

234042600

$0.92

275

Hex. Flange Screw K40 X 25

241142560

$2.17

276

Flat Washer 4 mm, Stainless

234042600

$0.92

290

Deep Black, LH Lower Housing

277002006

$79.92

295

Torx Truss Screw M6 X 16

250000922

$1.56

330

RH Cover

277002004

$13.62

335

Hex. Flange Screw K40 X 16

241141660

$1.25

355a

Can-Am Red, LH Handle Grip

277002015

$15.57

355a

Deep Black, LH Handle Grip

277001958

$15.57

355b

Can-Am Red, RH Handle Grip

277002014

$15.57

355b

Deep Black, RH Handle Grip

277001946

$15.57

460

Support Ass'y | Includes 460 to 460b

277002179

$17.52

460b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

465

Elastic Stop Nut M6, Brass

232561200

$3.51

470

Spacer

277001654

$11.40

480

Hex. Screw M6 X 35

207163560

$1.17

490

Flat Washer M6, Stainless

234062600

$0.64

500

Hex. Screw M6 X 40

207064060

$1.40

510

Stainless Flat Washer M6

234061600

$0.25

530

Ball Joint

277001180

$27.92

540

Steering Cable | Includes 540 to 540c

277002065

$210.57

540a

Hex. Nut 1/4"-28

211100056

$0.56

540b

Wiper Rod

277001582

$8.83

540c

End Piece

277001583

$11.14

545

Hex. Nut 1/4"-28

211100056

$0.56

550

Sheat Corrugated 19 MM ID

276000446

$0.51

554

Wiper Rod

277001582

$8.83

555

End Piece

277001583

$11.14

560

Rubber Washer

293830063

$1.51

570

Ring Halves

277001856

$9.85

580

Elastic Stop Nut M6, Brass

232561200

$3.51

590

Stainless Flat Washer M6

234061600

$0.25

630

Ball Joint

277000775

$40.27

640

Hex Sems Screw M6X35

250000970

$1.74

650

Elastic Stop Nut M6, Brass

232561200

$3.51

670

Stainless Flat Washer M6

234061600

$0.25

680

O-Ring

293300176

$0.94

690

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

720

Wear Ring

277002318

$12.43

3910

Torx Truss Screw M6 X 16

250000922

$1.56

3920

Insert Grip Handle

277001863

$7.70

3930

Flat Washer M6, Stainless

234062600

$0.64

3940

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

3950

Black, Cap

277000203

$7.48
