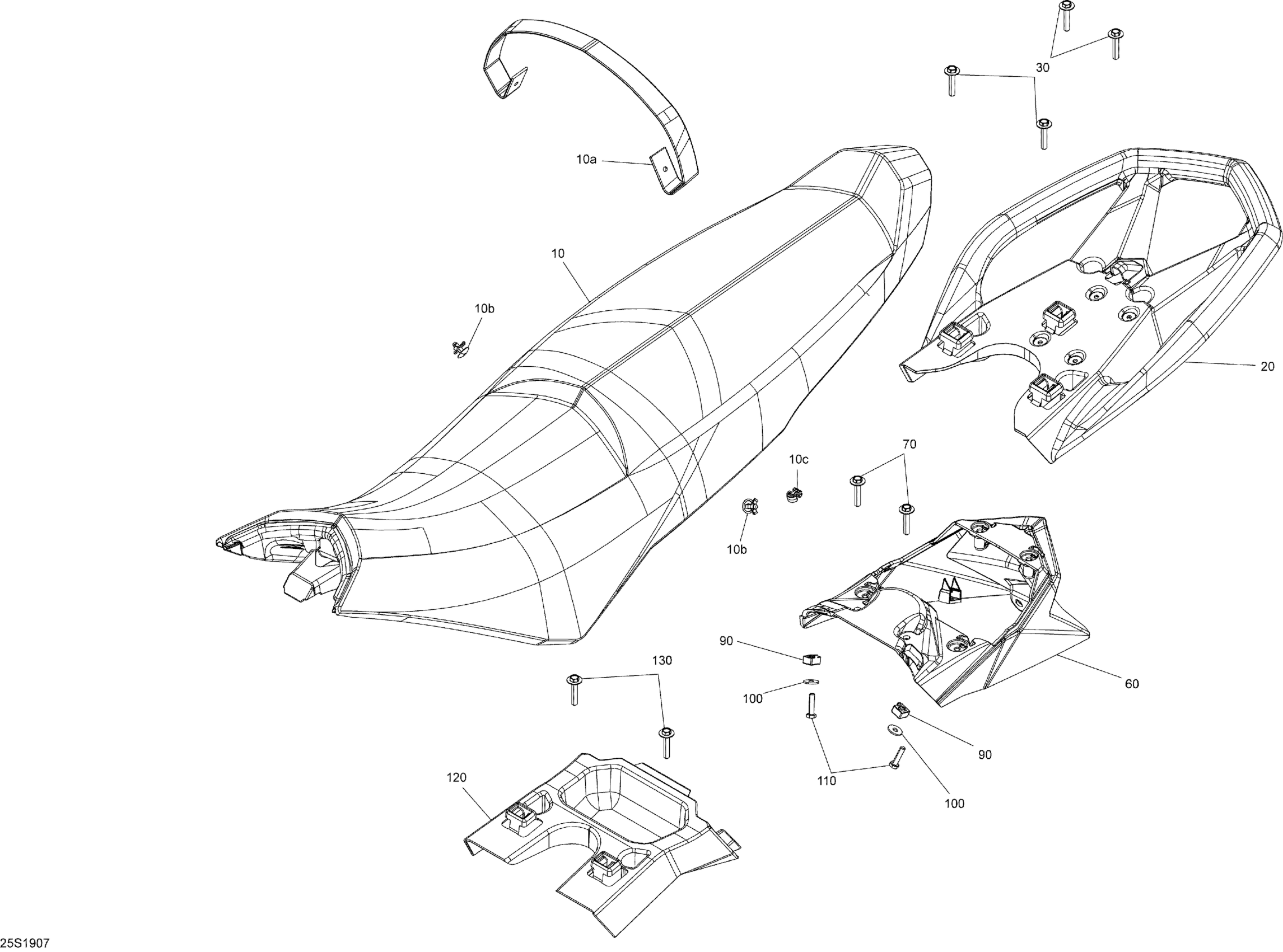

Sea-doo Spark TRIXX, 2019 Seat Diagram

Seat Assembly | Package 2UP IBR, Model Can-Am Red B-101

269003044

$375.02

Seat Ass'y | Package 3UP IBR, Model Can-Am Red B-101

269003136

$364.58

Manta Green, Seat Ass'y 2 Places | Package 2UP IBR, Model Manta Green B-357

269003254

$369.20

Manta Green, Seat Ass'y 3 Places | Package 3UP IBR, Model Manta Green B-357

269003255

$438.43

Can-Am Red, Seat Strap

269002967

$36.89

Can-Am Red, Seat Strap

269002973

$35.72

Seat Strap

269003115

$42.28

Manta Green, Seat Strap

269003139

$42.28

Rivet | Model-T3

293150067

$2.29

Rubber Stopper

293720100

$3.61

Grab Handle

291004527

$142.97

Hex. Cap Screw M6.8

250000689

$2.35

Handle Support

291003556

$29.87

Hex. Cap Screw M6.8

250000689

$2.35

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

Flat Washer M6, Stainless

234062600

$0.64

Hex. Screw M6 X 25

207162560

$1.22

Seat Support

291003789

$23.37

Hex. Cap Screw M6.8

250000689

$2.35
