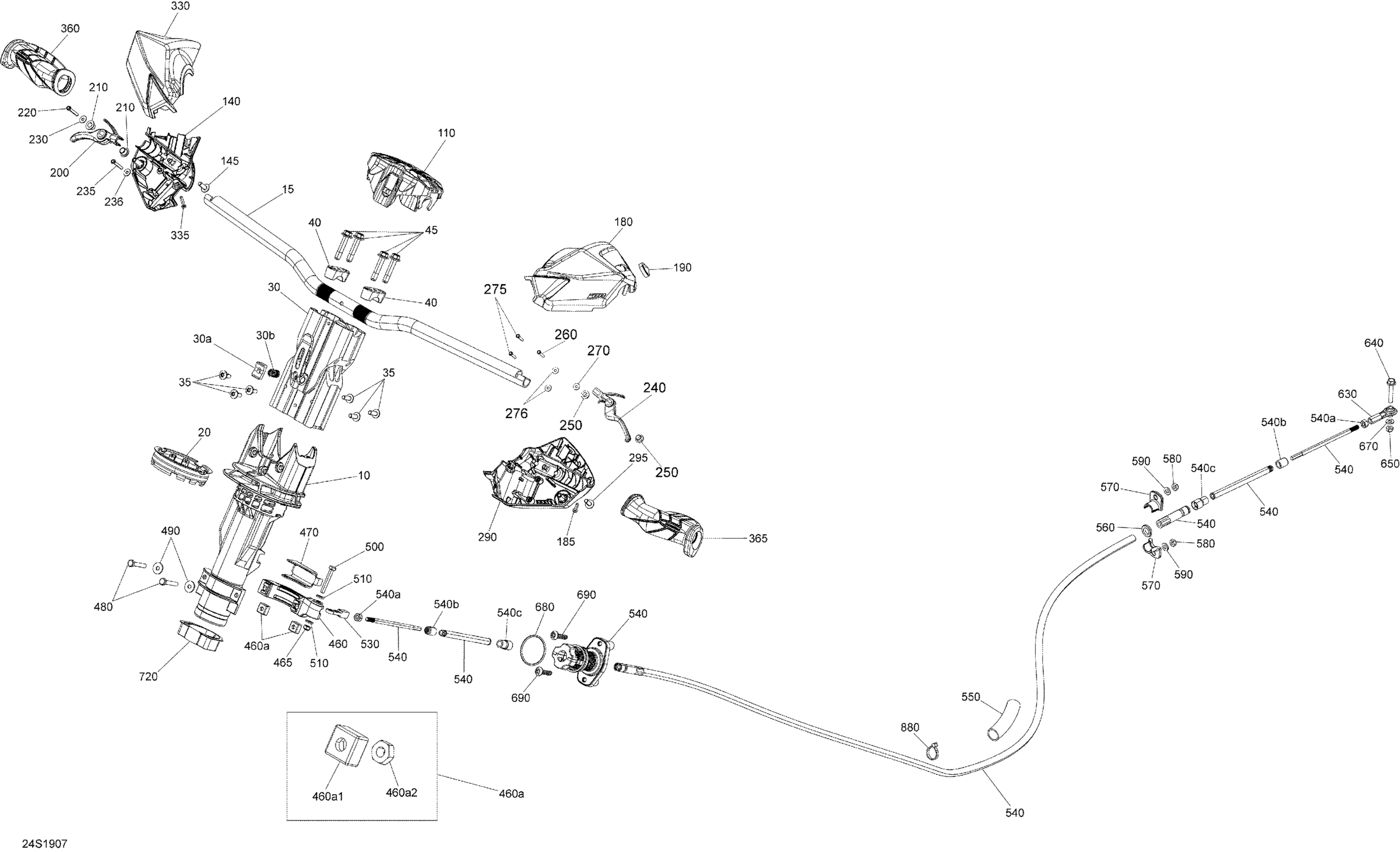

Sea-doo Spark TRIXX, 2019 Steering Diagram

Steering Column

277001998

$191.76

Liquid Titan, Handlebar This part replaces 277002345.

277002424

Unavailable

Wear Ring

277001874

$11.18

Adjustable Riser Block | Includes 30 to 30g

277002093

$142.51

Compression Bloc

506153045

$3.03

Spring

506152820

$7.57

Torx Truss Screw M6 X 16

250000922

$1.79

Steering Support | Includes 40 to 40a

506152751

$11.58

Hex. Screw Flange DIN.6921 S.Grip

250000834

$3.73

Deep Black, Steering Pad

277002005

$25.34

RH Lower Housing

277002007

$91.76

Torx Truss Screw M6 X 16

250000922

$1.79

LH Cover

277002237

$15.64

Hex. Flange Screw K40 X 16

241141660

$1.43

Red, Knob Switch

277001887

$8.66

Throttle Handle

277001944

$35.04

Bushing

293900091

$3.84

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Reverse Handle

277001945

$39.52

Bushing

293900091

$3.84

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Hex. Flange Screw K40 X 25

241142560

$2.49

Flat Washer 4 mm, Stainless

234042600

$1.06

Deep Black, LH Lower Housing

277002006

$91.76

Torx Truss Screw M6 X 16

250000922

$1.79

RH Cover

277002004

$15.64

Hex. Flange Screw K40 X 16

241141660

$1.43

Can-Am Red, RH Handle Grip

277002014

$17.88

Can-Am Red, LH Handle Grip

277002015

$17.88

Flat Washer M6, Stainless

234062600

$0.73

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.87

Black, Cap

277000203

$8.58

Support Ass'y | Includes 460 to 460b

277002179

$20.12

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

Elastic Stop Nut M6, Brass

232561200

$4.03

Spacer

277001654

$13.09

Hex. Screw M6 X 35

207163560

$1.34

Flat Washer M6, Stainless

234062600

$0.73

Hex. Screw M6 X 40

207064060

$1.61

Stainless Flat Washer M6

234061600

$0.28

Ball Joint

277001180

$32.06

Steering Cable | Includes 540 to 540c

277002065

$241.76

Hex. Nut 1/4"-28

211100056

$0.64

Wiper Rod

277001582

$10.13

End Piece

277001583

$12.79

Sheat Corrugated 19 MM ID

276000446

$0.51

Rubber Washer

293830063

$1.73

Ring Halves

277001856

$11.31

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

Ball Joint

277000775

$46.24

Hex. Screw M6 X 35

207663560

$1.88

Elastic Stop Nut M6, Brass

232561200

$4.03

Stainless Flat Washer M6

234061600

$0.28

O-Ring

293300176

$1.07

Screw Torx M6.81 X 30

250001007

$1.85

Wear Ring

277002318

$14.27

Tie-Rap 180 mm

414115200

$0.10
