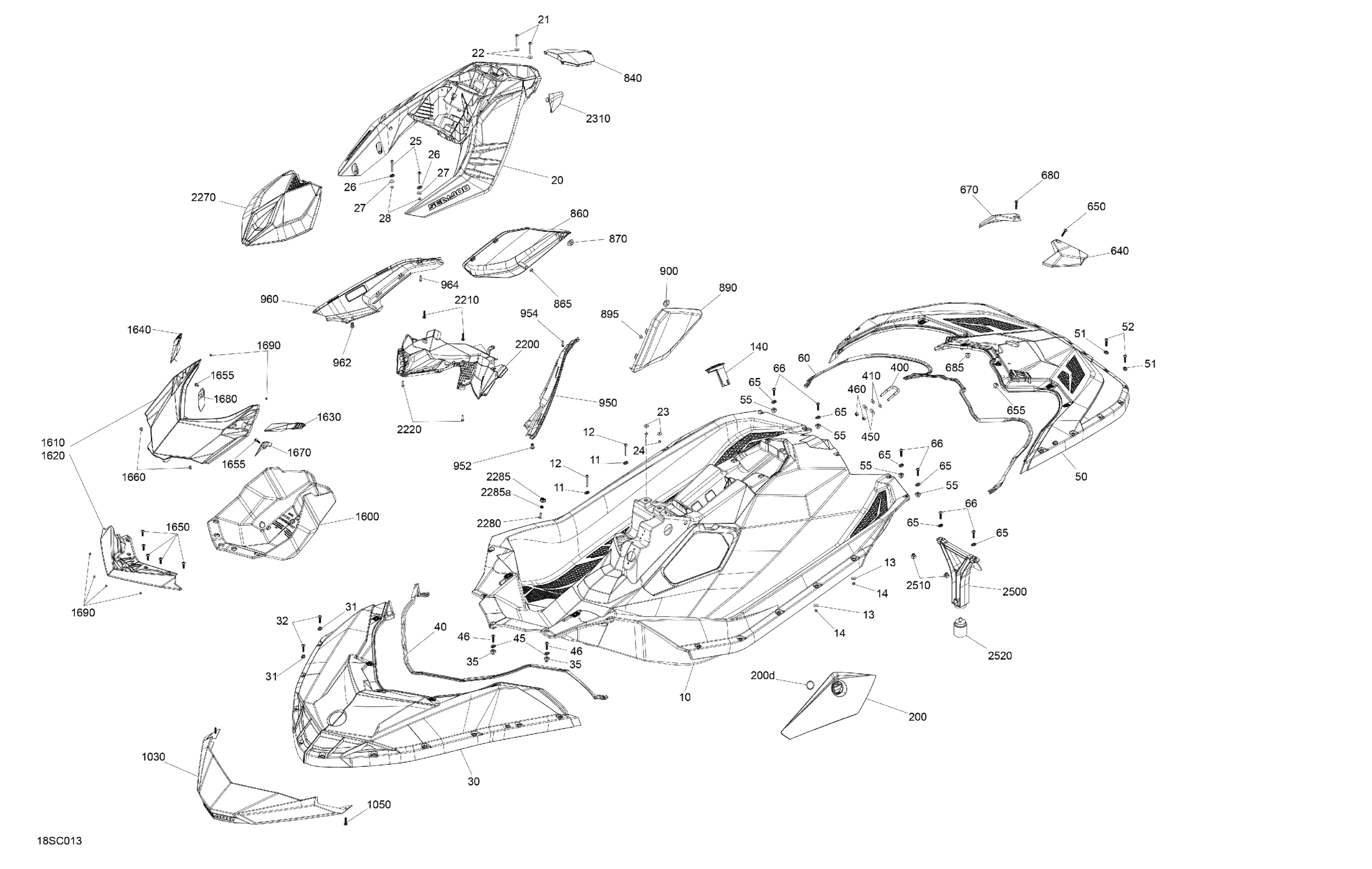

Sea-doo SPARK 90 - 3UP, 2023 Body - System Diagram

#

Description
Price

10

Central Body

291006043

$1,374.60

11

Oval Washer

291003880

$1.18

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

13

Flat Washer M6, Stainless

234062600

$0.64

14

Elastic Stop Nut M6, Brass

232561200

$3.51

20

Manta Green, Console

291005485

$109.82

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

22

Flat Washer M6, Stainless

250200150

$2.87

23

Flat Washer M6, Stainless

234062600

$0.64

24

Elastic Stop Nut M6, Brass

232561200

$3.51

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

26

Oval Washer

291003880

$1.18

27

Flat Washer M6, Stainless

234062600

$0.64

28

Elastic Stop Nut M6, Brass

232561200

$3.51

30

Bright White, Front Deck

291004581

$207.32

31

Oval Washer

291003880

$1.18

32

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

35

Insert

291003793

$2.44

40

Gasket

293250599

$38.78

45

Oval Washer

291003880

$1.18

46

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

50

Bright White, Rear Deck

291004586

$207.32

51

Oval Washer

291003880

$1.18

52

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

55

Insert

291003793

$2.44

60

Gasket

293250598

$33.77

65

Oval Washer

291003880

$1.18

66

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

140

Deep Black, Rear Access Cover

291003390

$33.12

200

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$37.02

200d

O-Ring

293300121

$6.18

400

U-Clamp

292000933

$32.47

410

Flat Washer M8.5 x 18

293050001

$1.29

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

640

Deep Black, LH Rear Panel Trim

291003883

$22.07

650

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

655

Insert

291003793

$2.44

670

Deep Black, RH Rear Panel Trim

291003884

$22.07

680

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

685

Insert

291003793

$2.44

840

Deep Black, Glove Box Cover

291003378

$51.32

860

Knee Pads RH

291004571

$63.02

865

Rubber Bumper

293830005

$5.33

870

Oval Washer

705000321

$4.64

890

Knee Pads LH

291004570

$90.32

895

Rubber Bumper

293830005

$5.33

900

Oval Washer

705000321

$4.64

950

LH Panel Trim This part replaces 291003696.

291004576

$22.07

952

Tuflok Plastic Rivet

293150230

$1.21

954

Hex. Screw 10-14 X 7/8”

211000023

$2.91

960

Deep Black, RH Panel Trim

291004577

$22.07

962

Tuflok Plastic Rivet

293150230

$1.21

964

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1030

Front Bumper

291004567

$94.87

1050

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1600

Storage Bin Kit

295100864

$208.62

1610

Black, Front Deflector Kit

295100865

Unavailable

1620

Black, Front Deflector Kit

295100865

Unavailable

1630

LH Retaining Strap

269800472

$20.77

1640

RH Retaining Strap

269800498

$20.77

1650

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1655

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1660

Rubber Bumper

293830005

$5.33

1670

LH Hook

269800541

$3.24

1680

RH Hook

269800542

$3.24

1690

Rubber Bumper

269800662

$0.74

2200

Black, Inferior Cover

291004575

$73.42

2210

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

2270

Front Trim Bright White

291004590

$52.62

2280

Torx-Truss M/S Stlss M6 X 20

250000829

$2.30

2285

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

2285a

Elastic Stop Nut M6, Brass

232561200

$3.51

2310

Manta Green, Cap

291005557

$13.78

2500

Rear Support

291003440

$20.77

2510

Insert

291003793

$2.44

2520

Rear Support Mount

291003694

$16.22
