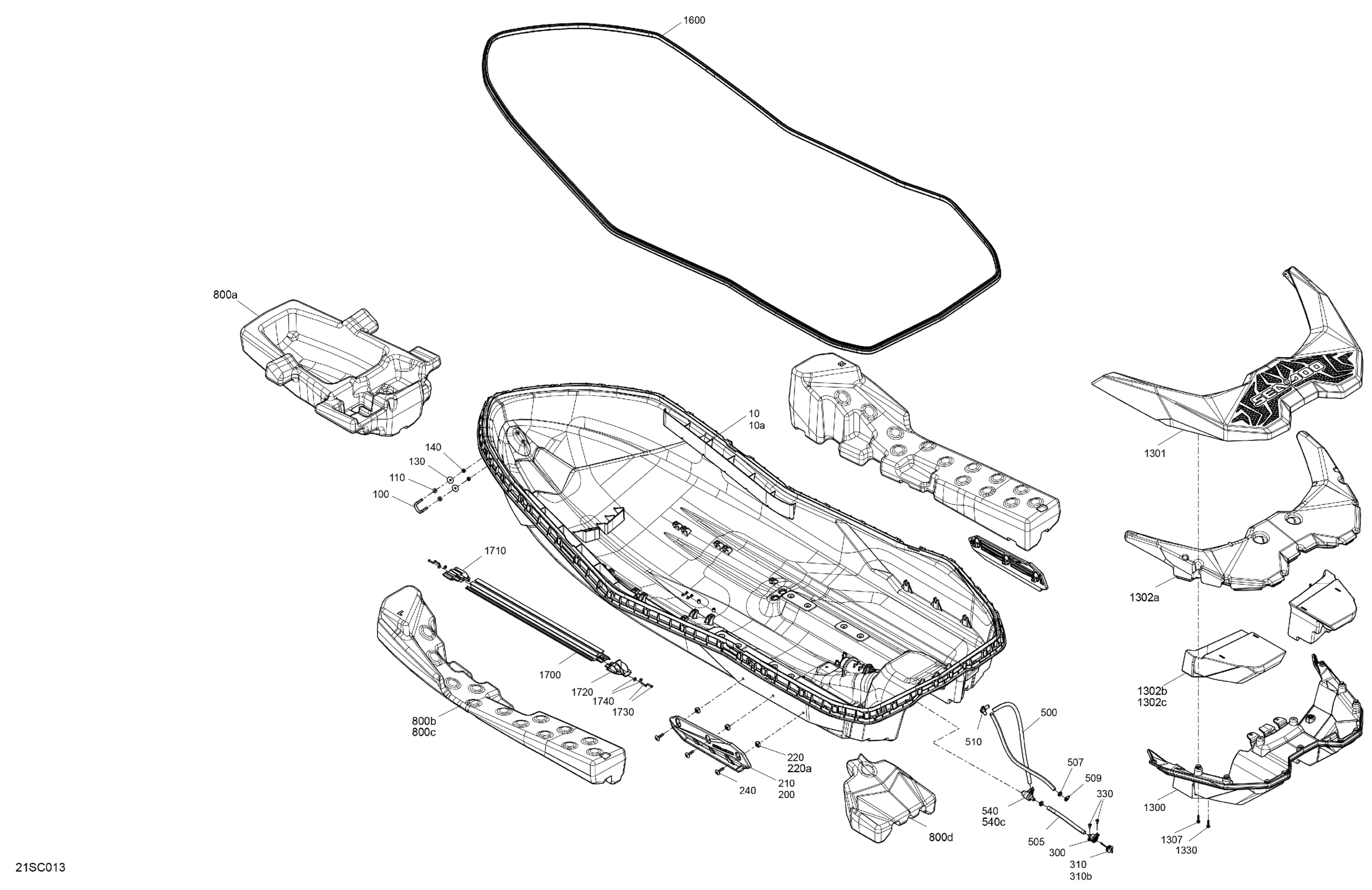

Sea-doo SPARK 90 - 3UP, 2023 Body - Hull Diagram

Hull | Includes 10 to 10a

295501188

$1,280.57

Hull | Includes 10 to 10a

295501188

$1,280.57

Hull Insert Kit | Includes 10a to 10a3

295501139

$34.42

Hull Insert Kit | Includes 10a to 10a3

295501139

$34.42

Torx Screw M6 X 20

250000711

$2.64

Drill Bite N Size

529036505

Unavailable

U-Clamp

292000933

$32.47

Flat Washer M8.5 x 18

293050001

$1.29

Flat Washer 8 mm, Stainless

250200175

$1.29

Hex. Elastic Nut M8 Brass

232581200

$1.29

RH Sponson

292002009

$64.32

LH Sponson

292002008

$64.32

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

Hex. Elastic Nut M8 Brass

232581200

$1.29

Torx-Head Screw M8 X 35

250001276

$4.84

Neck Drain

292001552

$11.14

Plug Drain Ass'y | Includes 310 to 310b

292002024

$10.28

O-Ring

293300067

$0.85

Torx Screw M6 X 14

250000384

$6.15

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$5.94

Rubber Washer

293830063

$1.51

Clamp Gear

293650285

$2.68

Fitting Elbow 90°

293710152

$14.92

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

Floating Ball

293830080

$5.56

Front Float

292001439

$72.12

LH Float

292001467

$68.63

RH Float

292001468

$68.63

Rear Float

292001469

$24.60

Hull Extension Black

292002010

$111.77

Deck

291004596

$159.87

Rear Deck Extension Float

292001504

$59.12

LH Extension Float

292001505

$21.42

RH Extension Float

292001506

$21.42

Hex. Flange Screw M6.81 X 30

243163060

$1.90

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

Seal Joint

293250338

$50.67

Hull Reinforcement

292001549

$72.12

Front End Piece Reinforcement

292001550

$9.45

Rear End Piece Reinforcement

292001551

$9.45

Hex. Flange Screw K50 X 25

250000680

$1.67

Flat Washer 5 mm, Stainless

234052600

$0.64
