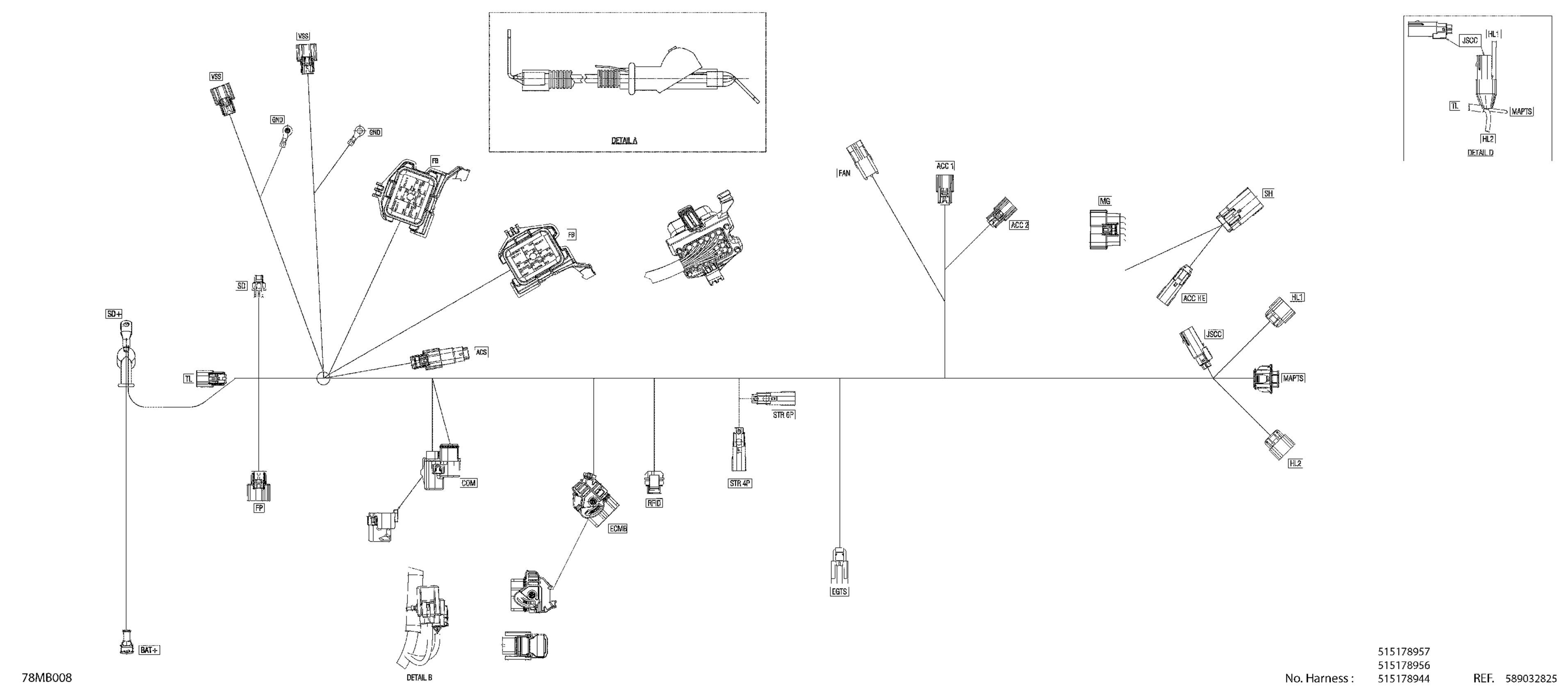

Ski-Doo SKANDIC WT 600R E-TEC - 2022 Electric - Main Harness - 515178956 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515178956

$329.99

ACC 1

2 Circuits Female Housing

278002853

$17.99

ACC 1

Female Terminal

515178014

$2.39

ACC 2

2 Circuits Female Housing

278002853

$17.99

ACC 2

Female Terminal

515178014

$2.39

ACS

Coil Connector

515178202

$13.24

ACS

Housing 6 Circuits

278003866

$13.75

ACS

Sealing Cap

278002860

$1.79

ACS

Female Terminal

515178018

$1.19

ACS

Female Terminal

515178014

$2.39

BAT+

Open Barrel

710000508

Unavailable

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

48 Circuits Female Housing

515178168

$46.49

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

EGTS

Clip

293650187

$4.97

EGTS

Male Housing, 2 Circuits

515177204

$6.32

EGTS

Seal

710001233

$3.19

EGTS

Terminal

710001224

$3.19

F1

Little Fuse, 5 Amperes

710000742

$8.79

F2

Little Fuse, 20 Amperes

710000746

$8.49

F3

Little Fuse, 15 Ampere

710000745

$8.49

F4

Little Fuse, 10 Amperes

710000744

$8.79

F5

Little Fuse, 15 Ampere

710000745

$8.49

F6

Little Fuse, 15 Ampere

710000745

$8.49

F7

Little Fuse, 15 Ampere

710000745

$8.49

F8

Little Fuse, 10 Amperes

710000744

$8.79

FA

Cap

515178471

$8.69

FA

Cushion

278000805

$3.28

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FAN

Female Housing, 2 Circuits

278000217

$9.59

FAN

Wire Seal

278000218

$4.39

FAN

Male Terminal

409004300

$5.61

FB

Case Ass'y with seal, 24 positions

278002824

$35.99

FB

Seal Plug

278002880

$7.86

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FBC

Fuse Box Cover

515178963

$12.59

FBC

Little Fuse, 10 Amperes

710000744

$8.79

FBC

Little Fuse, 15 Ampere

710000745

$8.49

FBC

Little Fuse, 20 Amperes

710000746

$8.49

FP

Female Housing

515178474

$34.99

FP

Female Terminal

515178018

$1.19

GND

Open Barrel Terminal

278001392

$4.79

HL1

Female Housing

515178006

$15.28

HL1

Seal Wire

710001332

$3.28

HL1

Terminal

710001228

$3.28

HL2

Female Housing

515178006

$15.28

HL2

Seal Wire

710001332

$3.28

HL2

Terminal

710001228

$3.28

MAPTS

Male Connector

515176410

$51.49

MAPTS

Seal

415128501

$1.89

MAPTS

Female Terminal

710001137

$4.55

MG

Female Housing 20 Circuits

278002858

$22.49

MG

Female Terminal

515178018

$1.19

MG

Female Terminal

515178014

$2.39

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RY2

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Terminal

515177214

$7.86

SH

Block 12

515178578

$13.16

SH

Male Terminal

515178013

$3.19

STR 4P

Clip Connector

515178223

$2.09

STR 4P

Male Housing Connector 4 Pins

515178347

$14.28

STR 4P

Male Terminal

515178013

$3.19

STR 6P

Clip Connector

515178223

$2.09

STR 6P

Housing 6 Circuits

278003866

$13.75

STR 6P

Male Terminal

515178013

$3.19

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

TL

Female Terminal

515178018

$1.19

TL

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19
