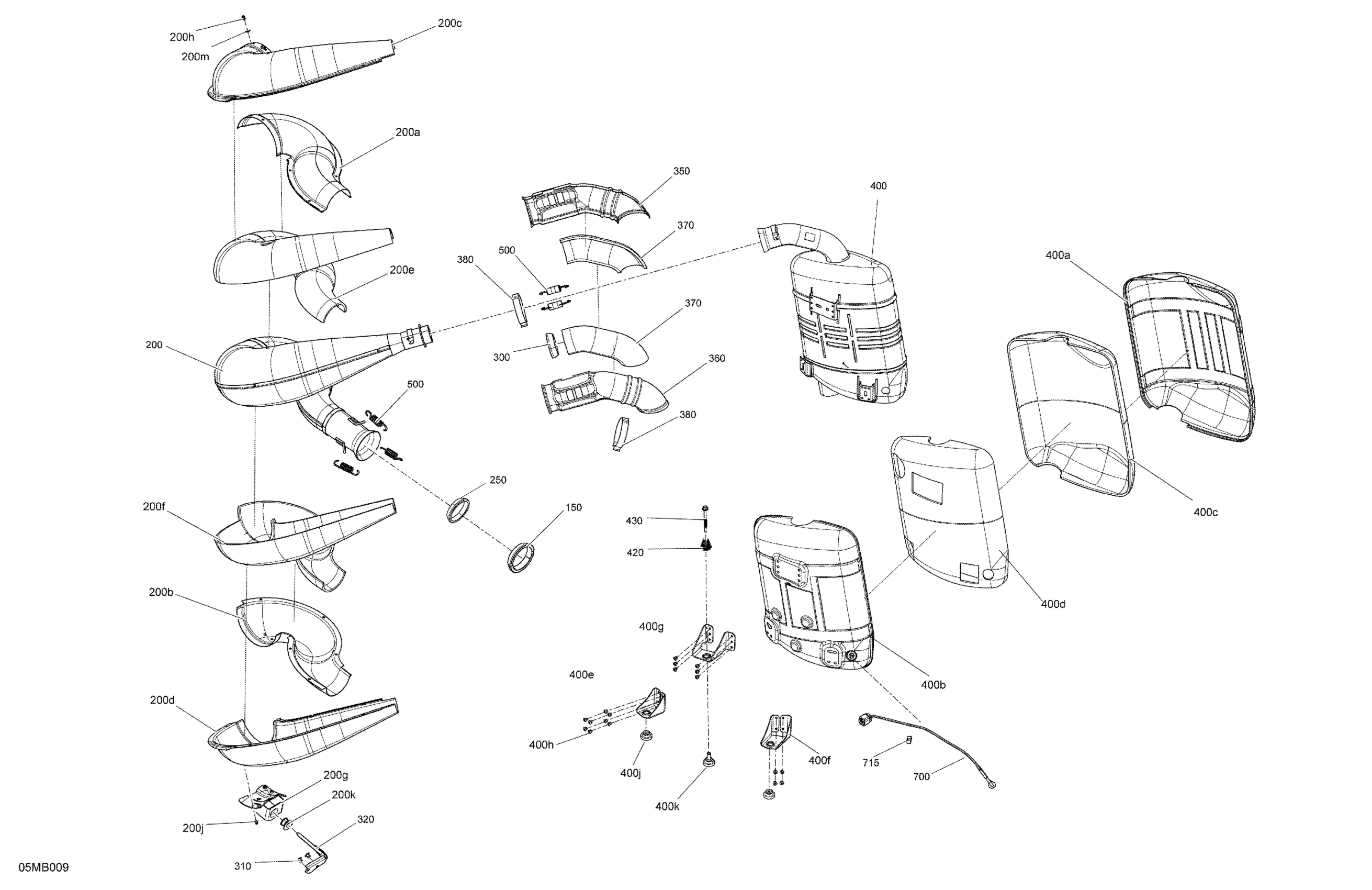

Ski-Doo SKANDIC WT 600R E-TEC - 2022 Engine - Exhaust Diagram

#

Description
Price

150

Exhaust Gasket

514053487

$25.34

200

Pipe_Tuned

514056275

$626.84

200a

Front Upper Aluminum Shell

514055222

$36.54

200b

Shell

514056282

$34.30

200c

Rear Upper Aluminum Shell

514055859

$75.34

200d

Rear Lower Aluminum Shell

514056141

$75.34

200e

Insulated Wool

514055715

$18.63

200f

Glass Wool

514056352

$6.75

200g

Plate

514055844

$5.13

200h

Avex Rivet

390909200

$0.28

200j

Avex Rivet

390909200

$0.28

200k

Rubber

514055632

$2.00

200m

Washer 3/16

514055537

$0.96

250

Seal

514055965

$17.88

300

Exhaust Gasket

514055294

$23.85

310

Hemlock Rivet, 6.5 mm

293150119

$3.88

320

Support

514055214

$9.27

350

Front Shield

514055558

$37.28

360

Rear Shield

514055559

$37.28

370

Wool

514055285

$13.27

380

Clip

514056035

$14.90

400

Muffler Ass'y | Includes 400 to 400n

514056204

$698.48

400a

RH Deflector

514055980

$52.96

400b

LH Deflector

514056199

$52.96

400c

Wool

514055201

$17.88

400d

LH Wool

514056021

$6.97

400e

Front Muffler Support

514056022

$5.07

400f

Rear Muffler Support

514056038

$5.07

400g

Muffler Support

514056024

$17.13

400h

Pop Rivet 3/16"

390402200

$0.30

400j

Stopper

514055203

$18.63

400k

Stopper Ass'y

514056138

$12.21

420

Spring

514055282

$6.01

430

Hex. Flange Screw M6

250000926

$0.96

500

Spring

514055198

$6.01

700

Exhaust Temperature Sensor

514055884

$137.28

715

Clip

414227300

$1.40
