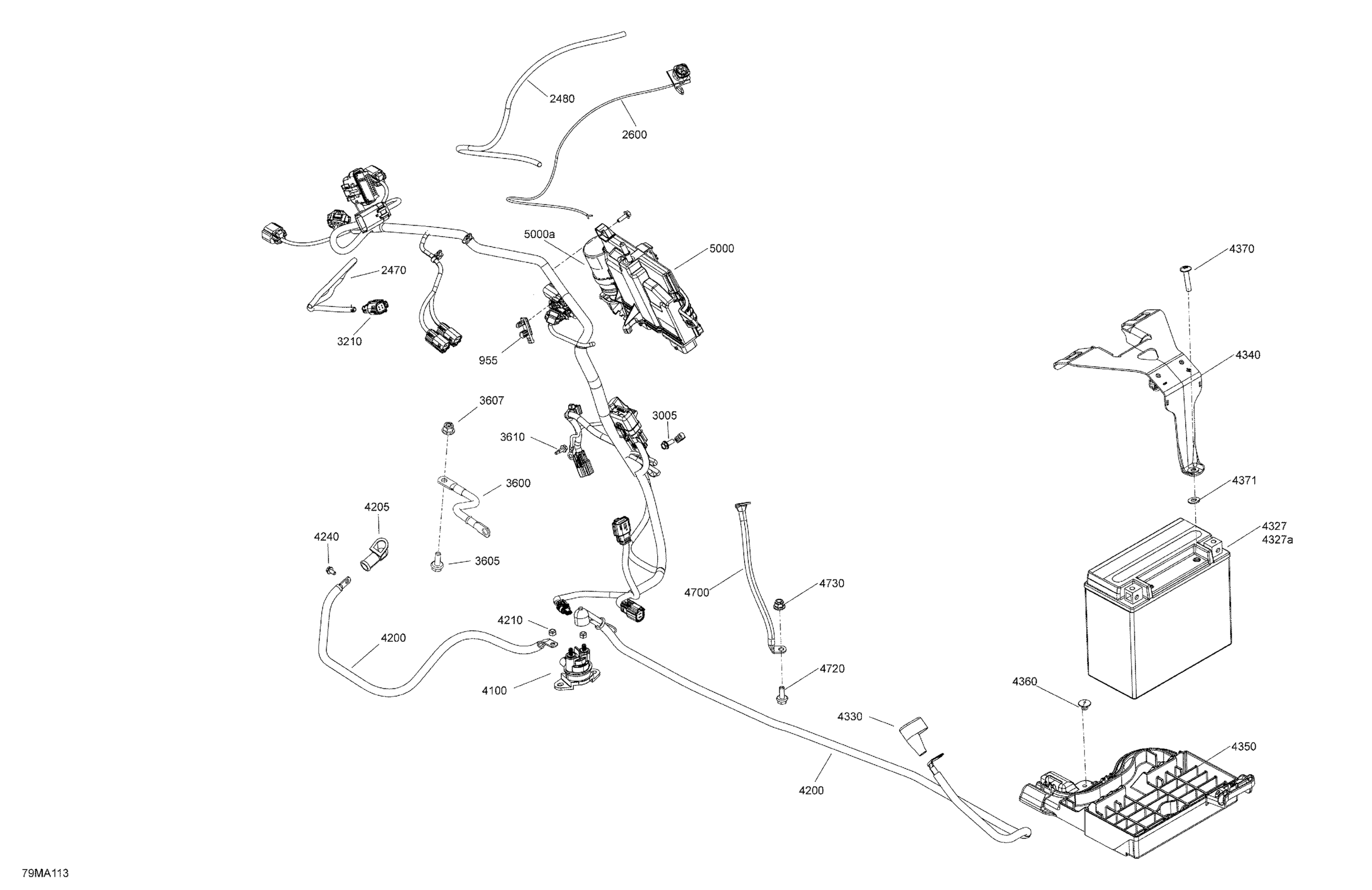

Ski-Doo SKANDIC WT 600R E-TEC - 2021 Electric - Lower Section Diagram

Description

Price

955

Clip Connector

515178223

$2.09

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Cable

515178919

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561434

$1.99

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4327

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4327a

Battery Bolt Kit

250000282

$7.29

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip

515178695

$31.99

4350

Battery Support Under

515178690

$14.99

4360

Pop Rivet 3/16"

293150103

$0.55

4370

Torx Truss Screw M6 X 30

250000843

$2.11

4371

Flat Washer

224061121

$0.53

4700

Cable

515178564

$20.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

5000

Engine Control Module | Includes 5000 to 5000a

512061392

$589.99

5000a

Capacitor

515177272

$90.99
