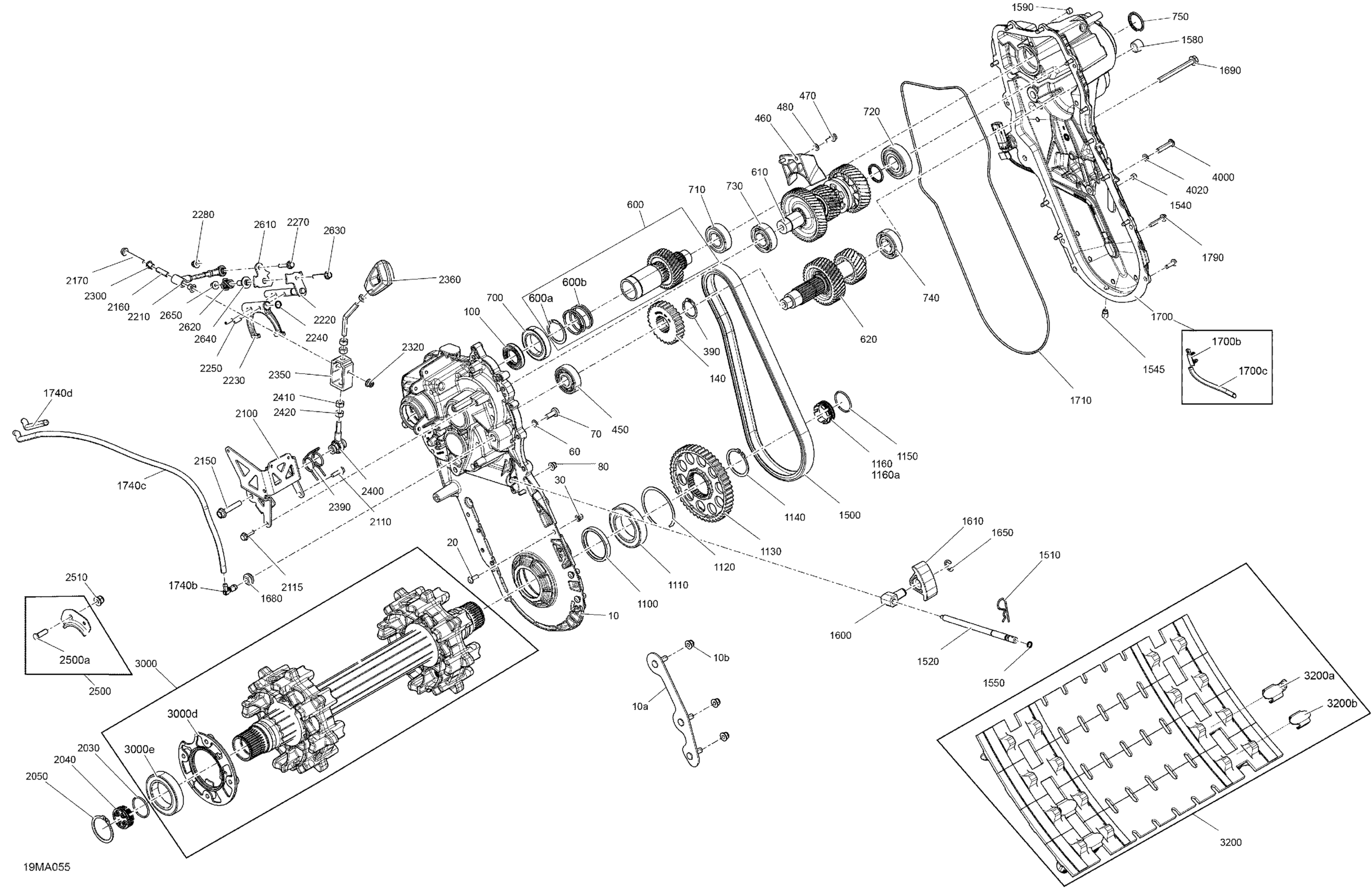

Ski-Doo SKANDIC WT 600R E-TEC - 2021 Drive - System Diagram

#

Description
Price

10

Case Gearbox Ass'y

504154169

$284.58

10a

Plate Ass'y | Not shown

504154136

$73.05

10b

Flange Elastic Nut M6

233261434

$3.61

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

30

Collar Huck Magna-Grip 6.4

293150149

$0.37

60

Washer

504082900

$2.58

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

80

Flange Elastic Nut M6

233261434

$3.61

100

Oil Seal

293200168

$13.65

140

Sprocket 23 Teeth

504153686

$50.74

390

External Snap Ring

293370133

$6.78

450

Ball Bearing

293350131

$26.12

460

Oil Deflector

504153793

$4.42

470

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

480

Flat Washer 6 mm

234061410

$1.04

600

Shaft Gearbox In Ass'y | Includes 600 to 600d

504154125

$180.74

600a

Circlip

293370055

$7.31

600b

External Snap Ring

293370133

$6.78

610

Shaft Gearbox Selection Ass'y

504154126

$379.20

620

Shaft Gearbox Out Ass'y

504154127

$379.20

700

Ball Bearing

293350053

$36.12

710

Ball Bearing

293350115

$11.15

720

Ball Bearing

293350117

$16.89

730

Ball Bearing | Package-2X4, 4X4

504153165

$15.35

740

Ball Bearing | Package-2X4, 4X4

504153165

$15.35

750

Cap

504154145

$10.15

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

Sprocket 45 Teeth

504153995

$46.12

1140

Circlip

504152572

$6.26

1150

O-Ring

293300201

$0.98

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$26.12

1160a

Cap

504154043

$2.09

1500

Drive Chain 96 Links

504153679

$147.66

1510

Hair Pin

414575600

$1.51

1520

Adjustment Screw

504153627

$23.05

1540

Hex. Countersunk Drain Plug

250500013

$6.78

1545

Magnetic Plug

504153704

Unavailable

1550

O-Ring

293300202

$0.98

1580

Black, Plastic Plug

267000469

$5.99

1590

Hex. Countersunk Drain Plug

250500013

$6.78

1600

Tensioner

504153559

$16.12

1610

Slider Chain

504153312

$67.66

1650

Circlip

293370105

$2.06

1680

Grommet

414036300

$2.22

1690

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.29

1700

Gearbox Cover Ass'y | Includes 1700 to 1700f

504154651

$179.97

1700b

Clip Connector

515178223

$1.63

1700c

Braided Sleeve

415130141

$56.12

1710

O Ring

293300197

$11.42

1740b

Male Connector

414580700

$3.38

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

1740d

Protector Tube | Not shown

503195447

$12.58

1790

Hex. Flange Screw M6 X 35

250001015

$1.07

2030

O-Ring

293300201

$0.98

2040

Cap

504154043

$2.09

2050

Circlip

504152572

$6.26

2100

Speed Selector Support

504153662

$42.28

2110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

2115

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

2150

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

2160

Spacer

504153648

$3.37

2170

Hex. Flange Screw M6 X 45

207664544

$1.07

2210

Actuating Rod Ass'y

504154245

$36.12

2220

Axle Fork

504154100

$12.02

2230

Fork

504154101

$38.43

2240

O-Ring

293300202

$0.98

2250

Spring Pin M5 X 16

250400045

$3.73

2270

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

2280

Flange Elastic Nut M6

233261434

$3.61

2300

Bushing

504153735

$0.52

2320

Flange Elastic Nut M6

233261434

$3.61

2350

Extrusion

504153664

$18.43

2360

Lever & Rod Ass'y

504154138

$75.35

2390

Lever Arm Spring

504153984

$5.89

2400

Ball Joint

504153977

$39.20

2410

Hex. Nut M8

232081414

$0.60

2420

Hex. Nut M8

232081414

$0.60

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$18.43

2500a

Clinch Stud, M8 X 25

250300028

$4.28

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

2610

Plate

504153980

$10.37

2620

Spring

707000310

$9.37

2630

Hex. Flange Screw M6 X 40

207664044

$2.18

2640

Sapcer

504153981

$10.20

2650

Flange Elastic Nut M6

233261434

$3.61

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154435

$369.20

3000d

Retaining Ring

504153886

$18.43

3000e

Ball Bearing

293350059

$30.74

3200

Track 20 X 154 X 1,5 | Includes 3200 to 3200b

504154261

$1,279.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

4020

Washer

504082900

$2.58
