Description

Price

10

Black, Frame | Includes 10 to 10ay

518329696

$5.00

10p

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

10q

Socket Screw | Not Shown

205061244

$2.11

10s

LH Rear Side Support

518329683

Unavailable

10t

Rear Arm Bracket

518329083

$19.49

10u

RH Rear Side Support

518329684

Unavailable

10v

Rear Arm Bracket

518329083

$19.49

10w

Fastening rail

518326107

$18.49

10x

LH Footrest

518328821

$88.99

10y

RH Footrest

518328822

$88.99

10z

Fastening Bracket

605355235

$56.99

10aa

LH Drive Axle Cover

518328016

$209.99

10ab

RH Drive Axle Cover

518328017

$209.99

10ac

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$78.99

10ad

Seat Box Bracket

518329164

$29.99

10ap

LH Frame Corner

518325524

$56.99

10aq

RH Frame Corner

518328024

$52.99

10ar

Adhesive Patch

518325560

$4.69

10as

Rear Profile

518328748

$234.99

10at

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

10au

Rivet Hucklok

293150163

$2.99

10av

Avex Rivet

390909100

$0.30

10aw

Avex Rivet

390909200

$0.30

10ax

Hemlock Rivet, 6.5 mm

293150119

$4.29

10ay

Rivet

293150183

$2.11

20

Adhesive Patch

518325560

$4.69

30

Gearbox Front Plate

518326123

$17.49

40

Gearbox Rear Plate

518326124

$17.99

50

Pop Rivet 3/16"

390402200

$0.35

90

LH Footboard Support Tube

518326963

$139.99

94

Rivet Hucklok

293150163

$2.99

95

Avex Rivet

390909100

$0.30

100

RH Footboard Support Tube

518326964

$139.99

104

Rivet Hucklok

293150163

$2.99

105

Avex Rivet

390909100

$0.30

110

Hex. Flange Screw M6 x 20

207662056

$1.01

120

Black Rear Footrest

520001208

$19.99

125

Rivet 3/16"

293150102

$0.70

130

Black, LH Toe Hook

518328819

$93.99

131

Avex Rivet

390909200

$0.30

132

Clinch Nut M6 Hexsert

605636003

$4.23

133

Black, Dart

414644300

$0.98

140

Black, RH Toe Hook

518328820

$93.99

141

Avex Rivet

390909200

$0.30

142

Clinch Nut M6 Hexsert

605636003

$4.23

145

Hex. Flange Screw M6 x 20

207662056

$1.01

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

155

Torx Head Screw M6 X 16

250000717

$2.11

160

Spring Bracket

514054846

$4.69

170

Avex Rivet

390909200

$0.30

1240

Adhesive Patch

518325560

$4.69

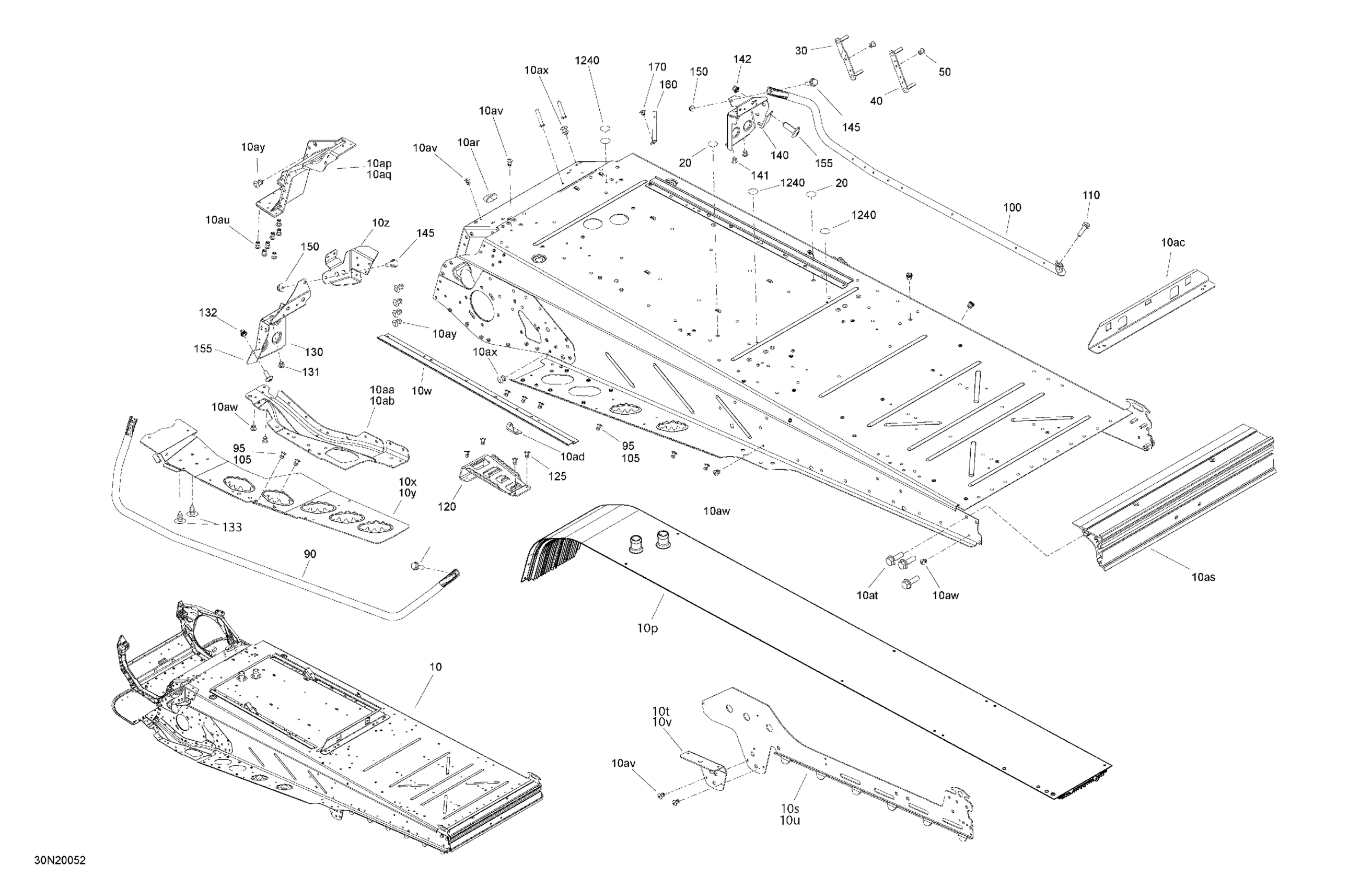

Ski-Doo 003 - SKANDIC WT 600 ACE - North America, 2020 09- Frame - System - Rear Section Diagram

Black, Frame | Includes 10 to 10ay

Tunnel Radiator | Includes 10p to 10q

Socket Screw | Not Shown

LH Rear Side Support

Rear Arm Bracket

RH Rear Side Support

Rear Arm Bracket

Fastening rail

LH Footrest

RH Footrest

Fastening Bracket

LH Drive Axle Cover

RH Drive Axle Cover

BATTERY SUPPORT PLATE - Call your local BRP dealership

Seat Box Bracket

LH Frame Corner

RH Frame Corner

Adhesive Patch

Rear Profile

Hex Flange Screw M8 X 25 S.Grip

Rivet Hucklok

Avex Rivet

Avex Rivet

Hemlock Rivet, 6.5 mm

Rivet

Adhesive Patch

Gearbox Front Plate

Gearbox Rear Plate

Pop Rivet 3/16"

LH Footboard Support Tube

Rivet Hucklok

Avex Rivet

RH Footboard Support Tube

Rivet Hucklok

Avex Rivet

Hex. Flange Screw M6 x 20

Black Rear Footrest

Rivet 3/16"

Black, LH Toe Hook

Avex Rivet

Clinch Nut M6 Hexsert

Black, Dart

Black, RH Toe Hook

Avex Rivet

Clinch Nut M6 Hexsert

Hex. Flange Screw M6 x 20

Hex. Flange Elastic Nut M6 x 1.0

Torx Head Screw M6 X 16

Spring Bracket

Avex Rivet

Adhesive Patch
