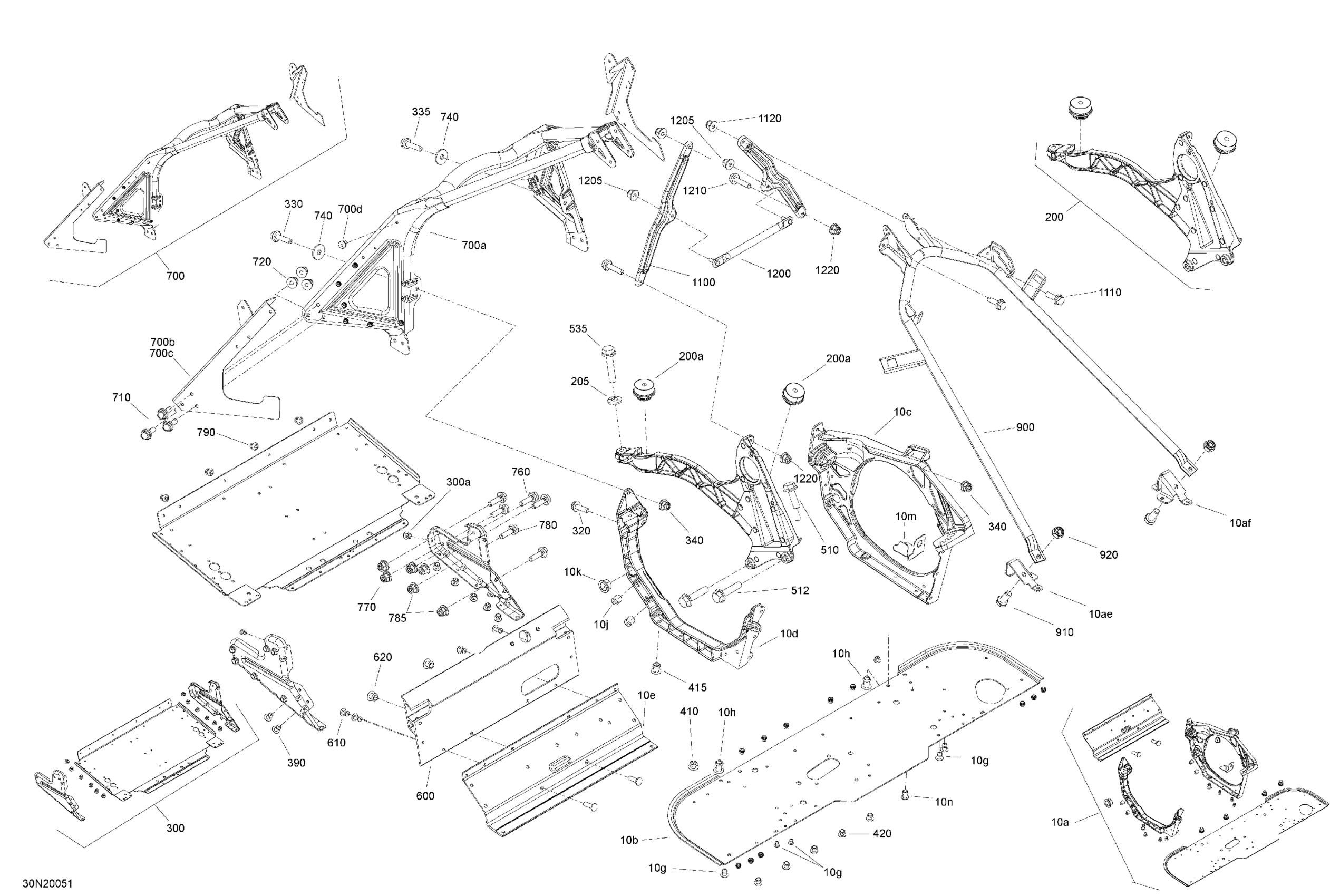

Ski-Doo SKANDIC WT 600 ACE - 2020 Frame - System - Front Section Diagram

#

Description
Price

10a

Module E | Includes 10a to 10n

518329825

$855.94

10b

Bottom Plate

518329826

Unavailable

10c

RH Side Member

518326328

$252.21

10d

LH Side Member

518326330

$252.21

10e

Front Member

518326198

$58.18

10g

Avex Rivet

390909100

$0.28

10h

Hemlock Rivet 6.5 mm

293150120

$7.01

10j

Hemlock Rivet, 6.5 mm

293150119

$3.88

10k

Leg Bushing

505072690

$5.75

10m

Muffler Support

518327983

$17.88

10n

Rivet Hucklok

293150163

$2.73

10ae

LH Support Tube Bracket

518329109

$43.25

10af

RH Support Tube Bracket

518329110

$43.25

200

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

200a

Vibration Damper

512061516

$55.94

205

Conical Spring Washer M8

250200146

$0.96

300

S Module | Includes 300 to 300a

518326213

$752.96

300a

Avex Rivet

390909200

$0.28

320

Hexagonal Head Screw

210262050

$2.00

330

Hex. Flange Screw M6 X 25

207662544

$0.61

335

Hex. Flange Screw M6 X 25

207662544

$0.61

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

390

Avex Rivet

390909100

$0.28

410

Hemlock Rivet, 6.5 mm

293150119

$3.88

415

Rivet

293150183

$2.00

420

Avex Rivet

390909200

$0.28

510

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.22

512

Hex. Flange Screw M8 X 35

250000986

$2.00

535

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

600

Engine Support

518326140

$112.66

610

Avex Rivet

390909100

$0.28

620

Hemlock Rivet, 6.5 mm

293150119

$3.88

700

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

700a

Front Member, S Module

518326557

$326.84

700b

LH Bumper Fastener

502007077

$51.46

700c

RH Bumper Fastener

502007078

$51.46

700d

Avex Rivet

390909200

$0.28

710

Hex. Flange Screw M6 X 20

207662044

$1.91

720

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

740

Flat Washer

224061201

$1.27

760

Hex. Flange Screw M6 X 20

207662044

$1.91

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

780

Hex. Flange Screw M6 X 20

207662044

$1.91

785

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

790

Avex Rivet

390909200

$0.28

900

Upper Support Tube

518329105

$184.30

910

Hex. Screw M8 X 20

207182044

$0.70

920

Hex. Elastic Stop Nut M8

232581414

$0.54

1100

Upper Column Support

518326848

$12.67

1110

Hex. Flange Screw M6 x 20

207662056

$0.96

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1200

Center Column Support

518326355

$20.12

1205

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

1210

Hex. Flange Screw M6 X 25

207662556

$4.15

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
