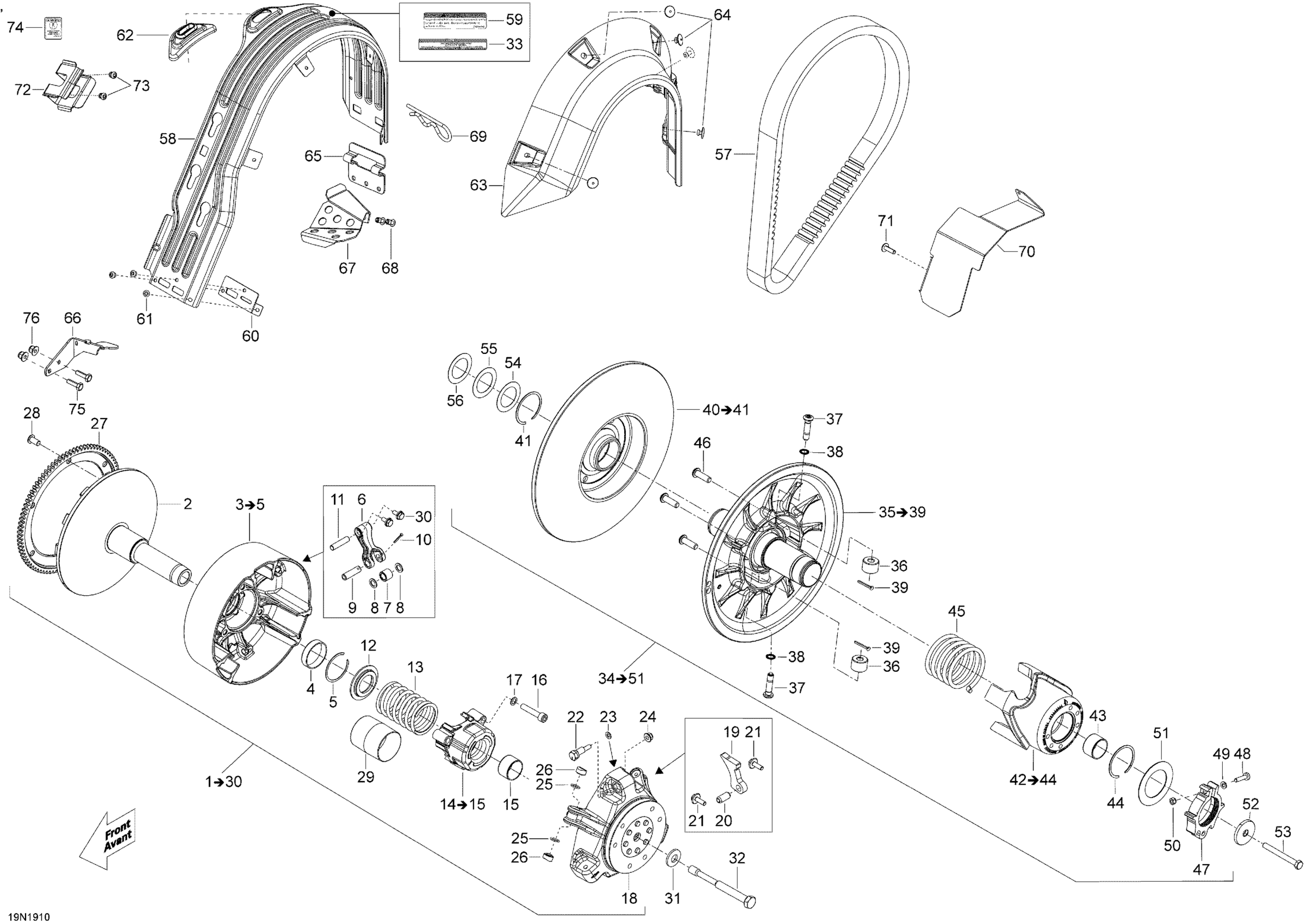

Ski-Doo SKANDIC WT 600 ACE - 2020 Pulley - System Diagram

#

Description
Price

2

Fixed Flange Ass'y

417222937

$214.90

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$188.03

4

Bushing

417222758

$20.12

5

Circlip

293370037

$2.93

6

Lever | Includes 10f to 10g

417222671

$46.24

7

Roller

417222947

$19.37

8

Stopper Washer

417004302

$15.64

9

Pin

417222594

$13.69

10

Cotter Pin

250400060

$1.84

11

Lever Axle

417223164

$4.12

11.1

Spring Seat

417222312

$8.03

12

Tra Spring

414993000

$52.96

13

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

15

Bushing

417009204

$15.64

14

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

16

Lock Washer 8 mm

250200009

$2.00

17

Governor Cup Ass'y

417223669

$435.04

18

Ramp 600

417222444

$32.81

19

Spring Pin M10 X 22

250400050

$2.73

20

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

21

Calibration Screw

417223501

$11.73

22

Washer

417005600

$3.75

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

24

O-Ring

732401030

$0.93

24.1

Slider Shoe

417223271

$8.49

25

Ring Gear_Starter This part replaces 417223738.

417225070

$216.39

26

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.72

27

Guard

417009205

$16.39

28

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.75

31

Conical Spring Washer M14

250200144

$4.16

32

Drive Pulley Bolt

417120000

$61.91

33

Decal English

516005503

Unavailable

35

Fixed Flange Ass'y

417127466

$405.94

40

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$143.25

42

Cam Ass'y

417127411

$160.42

45

Spring, White

417127243

$41.01

46

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

47

Calibration Ass'y

415129604

$22.49

48

Socket Screw M5 X 25

205052544

$1.54

49

Flat Washer M5

234051410

$0.51

50

Elastic Stop Nut M5

232551414

$0.82

51

Washer

417127155

$7.79

52

Strength Washer

517302322

$10.76

53

Hex. Cap Screw M8 X 75

207287544

$4.87

54

Spacer

417300252

$5.01

55

Spacer

417300265

$2.06

56

Shim

504112000

$5.87

57

Drive Belt

417300551

$167.13

58

Belt Guard

417300357

$83.55

59

Security Label, Belt Guard

516006900

Unavailable

60

Reinforcement

417300380

$5.01

61

Avex Rivet

390909200

$0.28

62

Guide

417300381

$8.73

63

Side Protector

417300356

$12.85

64

Pop Rivet 3/16"

293150103

$0.52

65

Belt Guard Bracket | Except Package SWT

417300363

$11.84

65

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

66

Belt Guard Bracket

417300364

$27.58

67

Brake Hose Cover | Except Package SWT

518325626

$27.58

68

Rivet Hucklok

293150163

$2.73

69

Hair Pin

114045200

$10.37

70

Air Duct | North America

417300468

$45.49

70.1

Clinch Nut M6 Hexsert

605636003

$4.00

71

Torx Screw M6 X 20

250000722

$1.54
