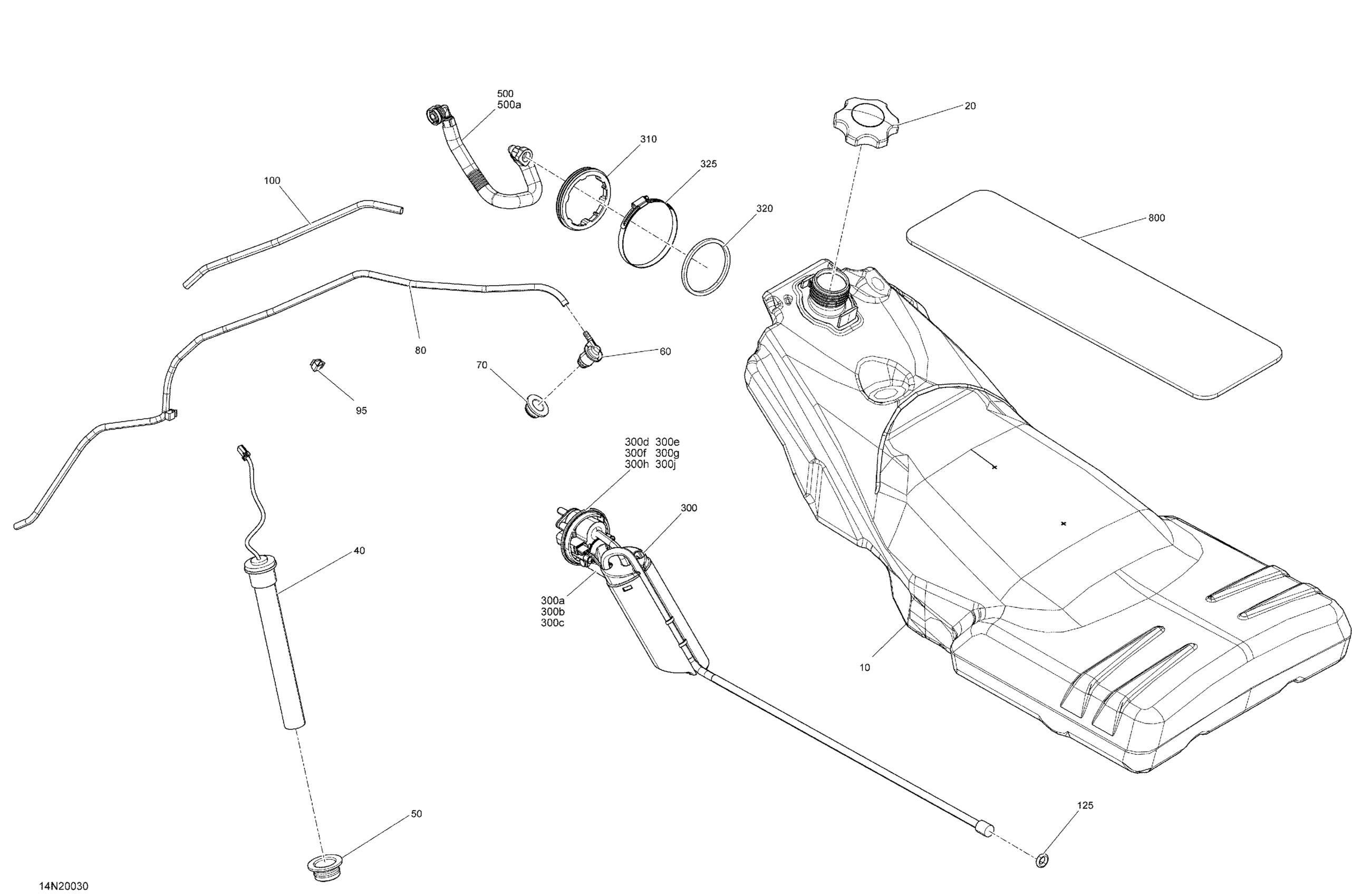

Ski-Doo 003 - SKANDIC WT 600 ACE - North America, 2020 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

513033757

$589.99

Fuel Tank Cap

513033969

$26.99

Fuel Sensor

513033902

$82.99

Grommet

293720113

$11.99

Check Valve

513033842

$35.99

Grommet

513033596

$21.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

Clip

414227300

$1.67

100

Protector Tube

504153468

$19.49

125

O Ring

293300184

$3.38

300

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$259.99

300a

O-Ring

415129509

$19.99

300b

Fuel Filter

415129510

$25.99

300c

O-Ring

415129511

$18.49

300d

Wave Washer

415129512

$19.99

300e

Screw

415129513

$9.59

300f

Cover

415129685

$29.99

300g

Fuel Pump Ring

415129569

$19.49

300h

Fuel Filter

415129451

$25.99

300j

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

310

Ring

513033180

$19.99

320

Gasket

513033334

$24.49

325

Clamp

513033628

$20.49

500

Hose Ass'y | Includes 500 to 500a

513033582

$77.99

500a

Locking Clip

513033135

$5.89

800

Insulate Foam

513033788

$10.49
