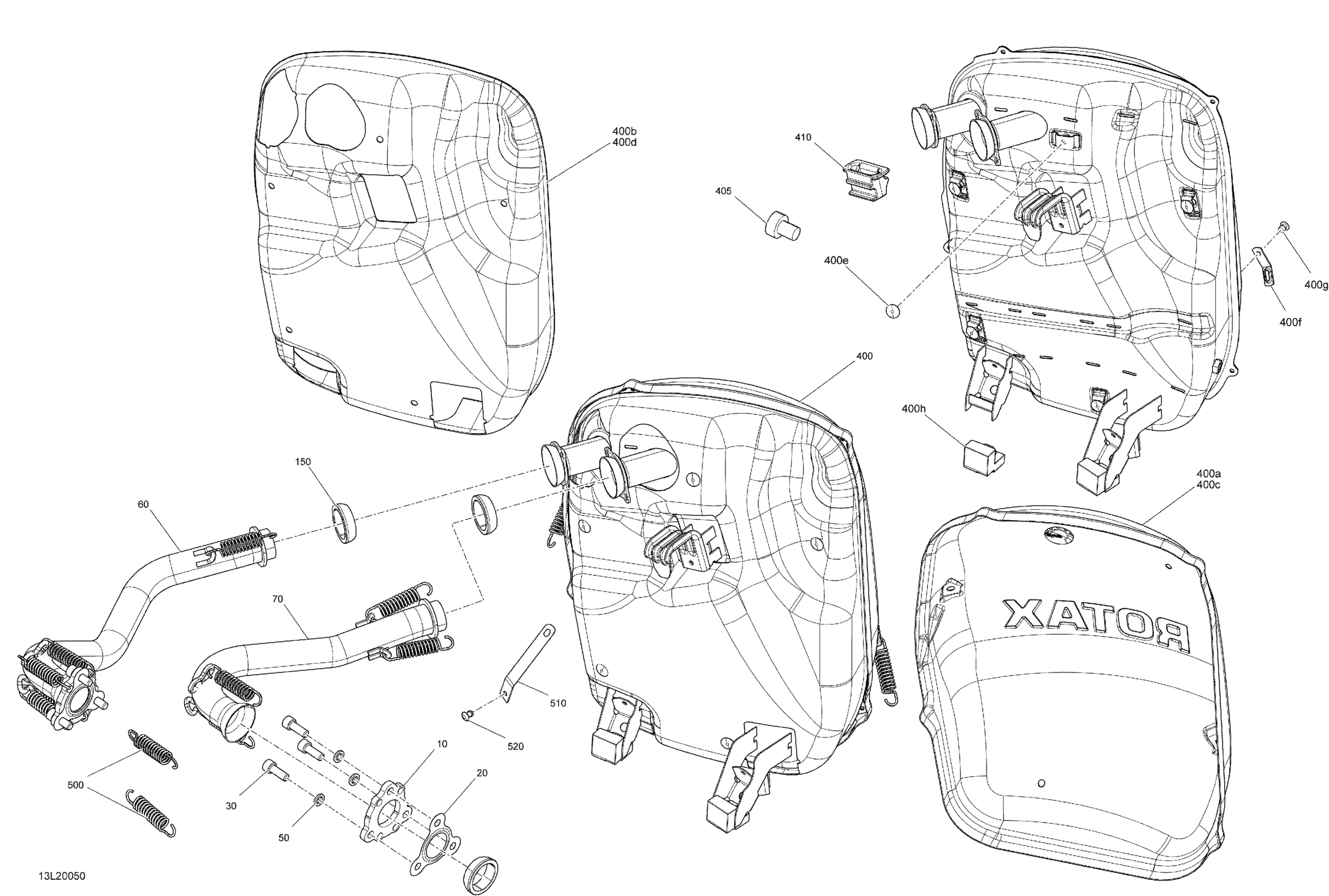

Ski-Doo SKANDIC WT 600 ACE - 2020 Engine - Exhaust Diagram

Description

Price

Exhaust Manifold

514054673

$69.20

Gasket

514055112

$5.86

Socket Head Screw M8 X 22

250000414

$2.06

Washer

250200111

$1.74

Welded Tube

514054733

$94.58

Welded Tube

514054734

Unavailable

150

Exhaust Gasket

514054807

$15.35

400

Muffler Ass'y | Includes 400 to 400h

514055370

$738.43

400a

RH Heat Shield

514055325

$54.58

400b

LH Heat Shield

514054645

$54.58

400c

RH Insulating Wool

514054769

$11.63

400d

LH Insulating Wool

514054770

$13.77

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Spring Bracket

514054522

$6.28

400g

Avex Rivet

390909200

$0.29

400h

Lower Stopper

514054529

$17.66

405

Rubber Bumper

570044700

$10.55

410

Upper Stopper

514054737

$11.58

500

Spring

415107100

$6.20

510

Spring Bracket

514055317

Unavailable

520

Avex Rivet

390909100

$0.29
