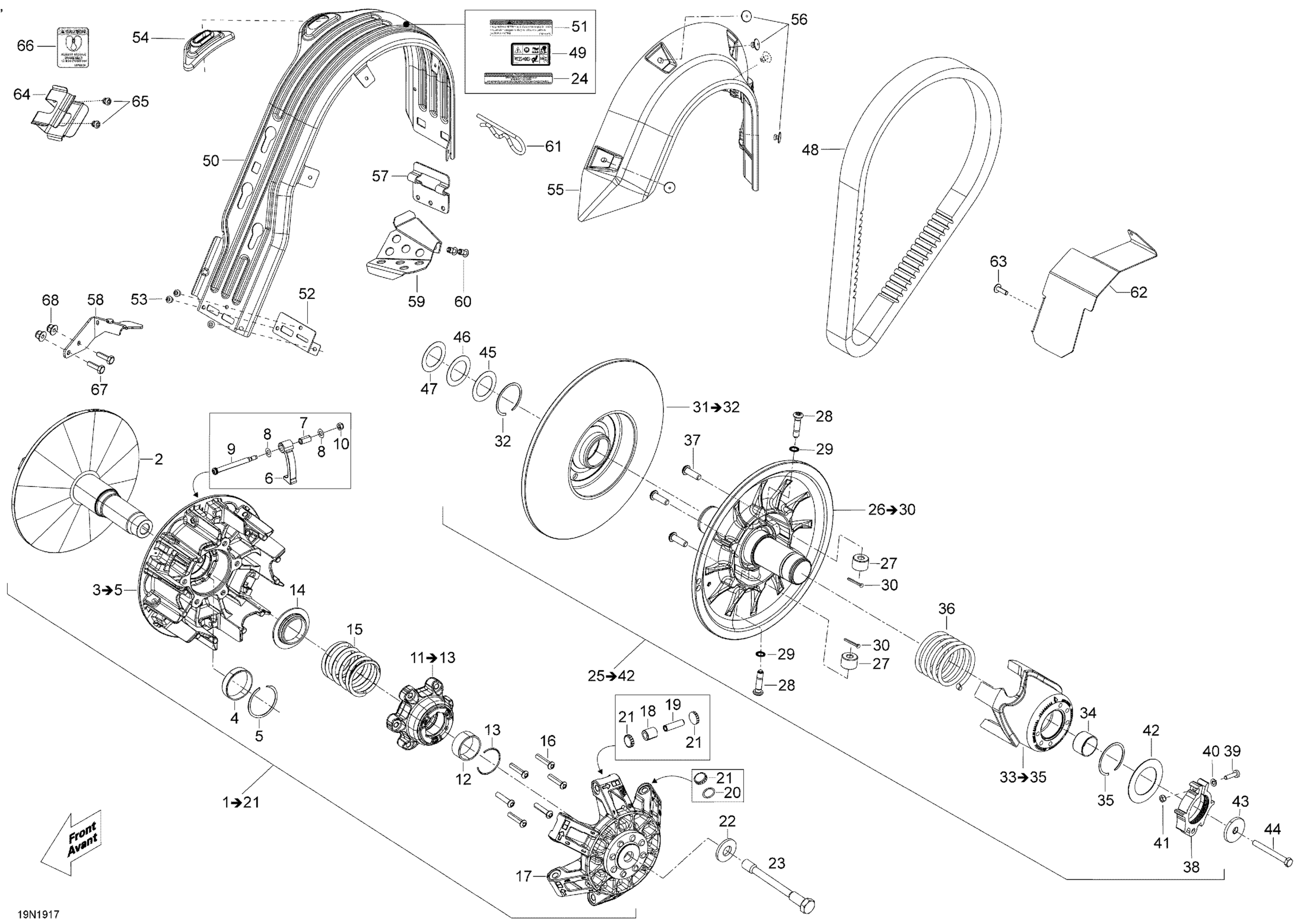

Ski-Doo 003 - Skandic WT 600 ACE, 2019 05- Pulley - 600 ACE Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Fixed Flange Ass'y

417224091

$309.99

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$319.99

4

Bushing

417222758

$22.49

5

Circlip

293370037

$3.19

6

Ramp 716 Ass'y

417223508

$38.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$2.00

9

Ramp Axle

417223694

$11.05

10

Elastic Stop Nut M5

232551414

$0.87

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$45.99

12

Bushing

417222758

$22.49

13

Circlip

293370065

$0.98

14

Seat Spring

417223752

$15.27

15

Clutch Spring

417223747

$17.39

16

Torx Screw M6 X 30

250000580

$6.08

17

Governor Cup Ass'y

417223865

$274.99

18

Roller

417223767

$11.59

19

Roller Axle

417223257

$6.99

20

O-Ring

293300185

$0.98

21

Slider Shoe

417223919

$6.83

22

Conical Spring Washer M14

250200144

$4.44

23

Pulley Drive Bolt

417300432

$41.49

24

Decal English

516005503

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Fixed Flange Ass'y

417127433

$629.99

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$159.99

32

Not Available As Spare Parts

XXX

Unavailable

33

Cam Ass'y

417127413

$159.49

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Release Spring

417127344

$45.49

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

38

Calibration Ass'y

415129604

$21.49

39

Socket Screw M5 X 25

205052544

$1.68

40

Flat Washer M5

234051410

$0.53

41

Elastic Stop Nut M5

232551414

$0.87

42

Washer

417127155

$8.26

43

Strength Washer

517302322

$12.63

44

Hex. Cap Screw M8 X 75

207287544

$5.18

45

Spacer

417300252

$5.49

46

Spacer

417300265

$2.29

47

Shim

504112000

$8.59

48

Drive Belt

417300585

$154.99

50

Belt Guard

417300382

$90.99

51

Security Label, Belt Guard

516006900

Unavailable

52

Reinforcement

417300380

$7.29

53

Avex Rivet

390909200

$0.30

54

Guide

417300381

$11.99

55

Side Protector

417300356

$14.76

56

Pop Rivet 3/16"

293150103

$0.55

57

Belt Guard Bracket | Except Package SWT

417300363

$14.49

58

BELT GUARD BRACKET - Call your local BRP dealership

417300451

$31.99

59

Brake Hose Cover | Except Package SWT

518325626

$29.99

60

Rivet Hucklok

293150163

$2.99

61

Hair Pin

114045200

$11.11

62

Air Duct | North America

417300468

$49.99

62,1

Clinch Nut M6 Hexsert

605636003

$4.23

63

Torx Screw M6 X 20

250000722

$1.68

63

Hemlock Rivet, 6.5 mm

293150096

$3.27

64

Bracket

517281905

$18.49

65

Avex Rivet

390909100

$0.30

66

Belt Decal, English

516005511

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable
