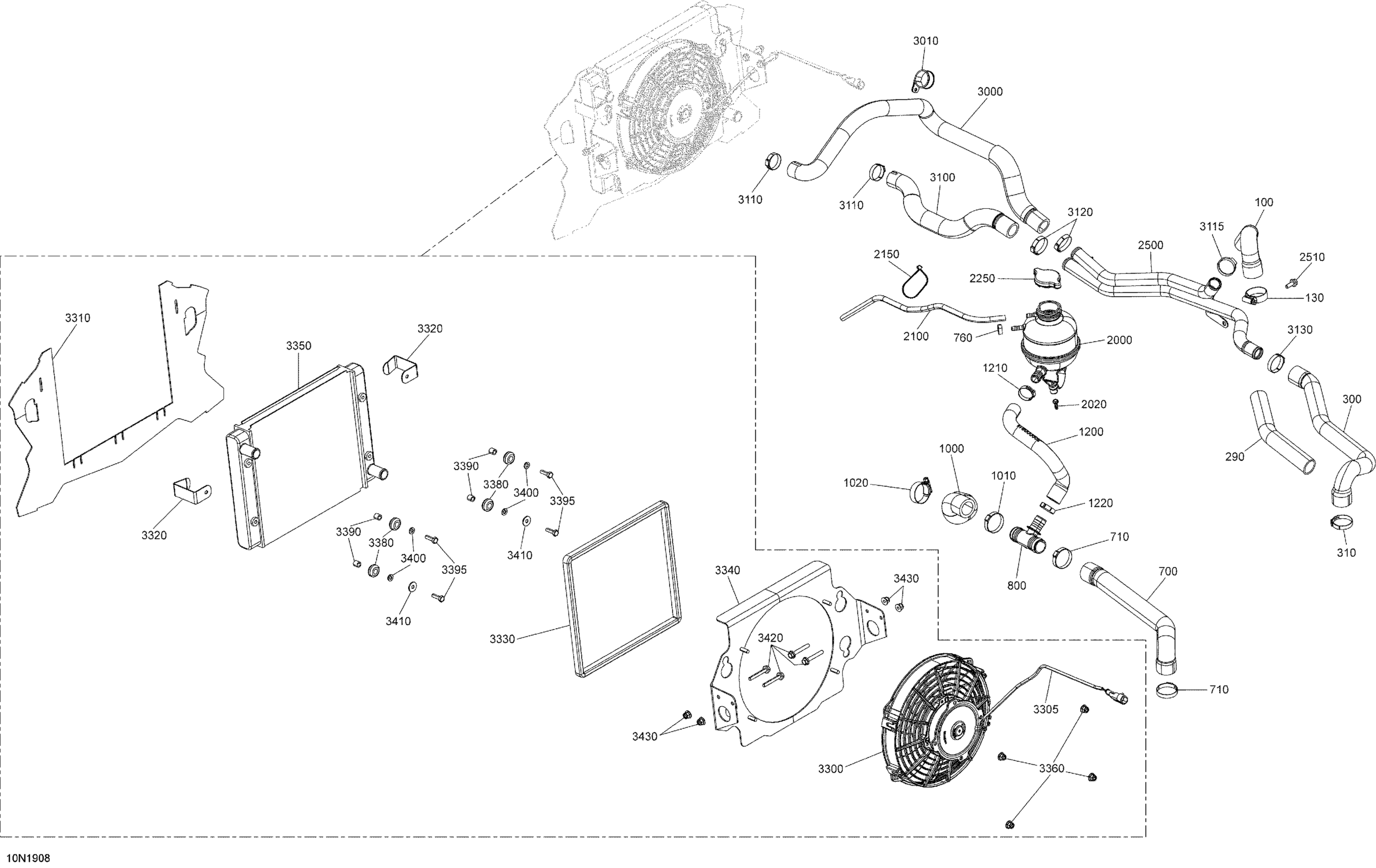

Ski-Doo Skandic WT 600 ACE, 2019 Cooling - 600 ACE Diagram

#

Description
Price

100

Engine Outlet Hose

509000932

$20.99

130

Aba Gear Clamp, 26-38 MM

509000443

$12.72

290

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

300

Hose

509001061

$23.99

310

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

700

Radiator Return Hose

509001062

$16.33

710

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

760

Oetiker Gear Clamp

293650025

$3.09

800

T-Fitting

509000372

$10.33

1000

Engine Inlet Hose

509001060

$15.28

1010

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

1020

Aba Gear Clamp, 26-38 MM

509000443

$12.72

1200

Filling Hose

509001063

$15.28

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Crimp Clamp

293650099

$4.29

2000

Cooling Tank

509000881

$92.99

2020

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

2100

Hose

509000775

$11.49

2150

Tie-Rap 180 mm

414115200

$0.11

2250

Radiator Pressure Cap

509000180

$20.49

2489

Clip

710000992

$4.29

2500

Water Pipe

509000800

$110.99

2510

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

3000

Air Radiator Hose

509001000

$98.49

3010

Clamp With Rubber D=30

605627008

$20.49

3100

Frint Air Radiator Hose

509001001

$15.28

3110

Crimp Clamp

293650099

$4.29

3115

Oetiker Clamp

293650141

$4.29

3120

Clamp

509000735

$7.49

3130

Clamp

509000735

$7.49

3300

Cooling Fan

509000838

$217.49

3310

Air Deflector

509001002

$109.99

3320

Deflector Clip

509000703

$41.49

3330

Insulation

509000718

$61.49

3340

Radiator support | Includes 3340 to 3340a

509000791

$94.49

3340a

Clinch Stud M6 X 20

250300027

$2.09

3350

Radiator

509000980

$222.49

3360

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3380

Grommet

709000582

$4.69

3390

Bushing

605453745

$13.16

3395

Torx Screw M6 X 20

250000722

$1.68

3410

Flat Washer 6 mm

234062410

$0.77

3420

Hex. Flange Screw M6 X 40

207664044

$2.22

3430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
