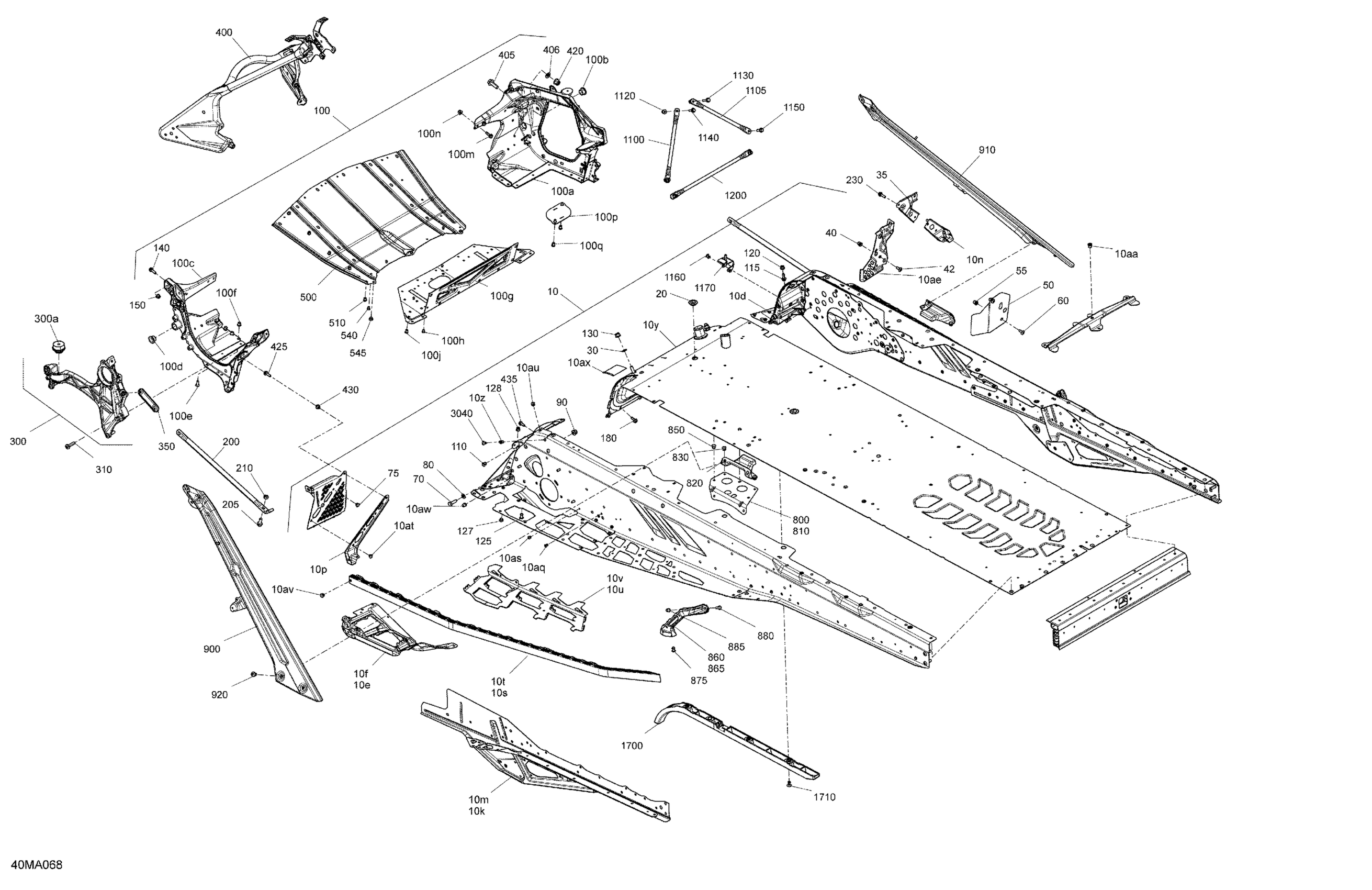

Ski-Doo 003 - SKANDIC SWT 900 ACE - Europe, 2021 06- Frame - System - SWT Diagram

Deep Black, Chassis Tunnel Module 154" | Includes 10 to 10ax

518332566

Unavailable

Clinch Stud M6 X 20

250300027

$2.09

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

RH Rear Suspension Support

518332254

$109.99

LH Rear Suspension Support

518332253

$109.99

RH Footrest Reinforcement

518329789

$19.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518329648

$194.99

LH Roller

518328452

$194.99

RH Tunnel Liner

518329646

$35.99

LH Tunnel Liner

518329647

$35.99

Radiator Tunnel 154

518335121

$625.49

Clinch Nut M6 Hexsert

605636003

$4.23

Insert

293450275

$12.99

RH Footrest

518331822

$24.49

Avex Rivet

390909100

$0.30

Avex Rivet

390909200

$0.30

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Collar Huck Magna-Grip 6.4

293150149

$0.48

Aluminum foil

44110

Unavailable

Black, Plug

293730052

$9.19

Flat Washer M8

234081430

$2.11

RH Stirrup Reinforcement

518331727

$19.99

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Hex Screw M8 X 30

250000942

$1.15

Hemlock Rivet, 6.5 mm

293150096

$3.27

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100q

518331984

Unavailable

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332715

$36.99

Avex Rivet

390909100

$0.30

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Oil Plate

518332276

$19.99

Torx Truss Screw M6 X 12

250000767

$2.00

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hemlock Rivet 6.5 mm

293150120

$7.41

Rivet 6,4 mm

293150173

$4.29

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661646

$1.36

Lateral Reinforcement

518332541

$19.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Nut M8

232081414

$0.72

Hex. Flange Screw M6 X 20

207662046

$2.11

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

Chassis Suspension Module

518335308

$379.99

Screw Hex M10 X 30

250001148

$1.69

Flat Washer 10 mm

234001410

$1.26

Hex. Flange Elastic Nut M10

250100165

$0.85

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Front Bottom Plate

518331615

$31.99

Insert M5 X 0.8

293450268

$2.09

Avex Rivet

390909100

$0.30

Rivet 6,4 mm

293150173

$4.29

LH Under Chassis Reinforcement

518332514

$12.99

RH Under Chassis Reinforcement

518332516

$12.99

Cross Member Support

518331733

$33.99

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.5 mm

293150119

$4.29

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

Rivet

293150183

$2.11

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$119.99

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329370

$22.49

Upper Side Column Support

518330916

$22.49

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Hemlock Rivet, 6.5 mm

293150119

$4.29

Muffler Support Ass'y

518334031

$21.99

Center Column Support

518329906

$3.59

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$2.09
