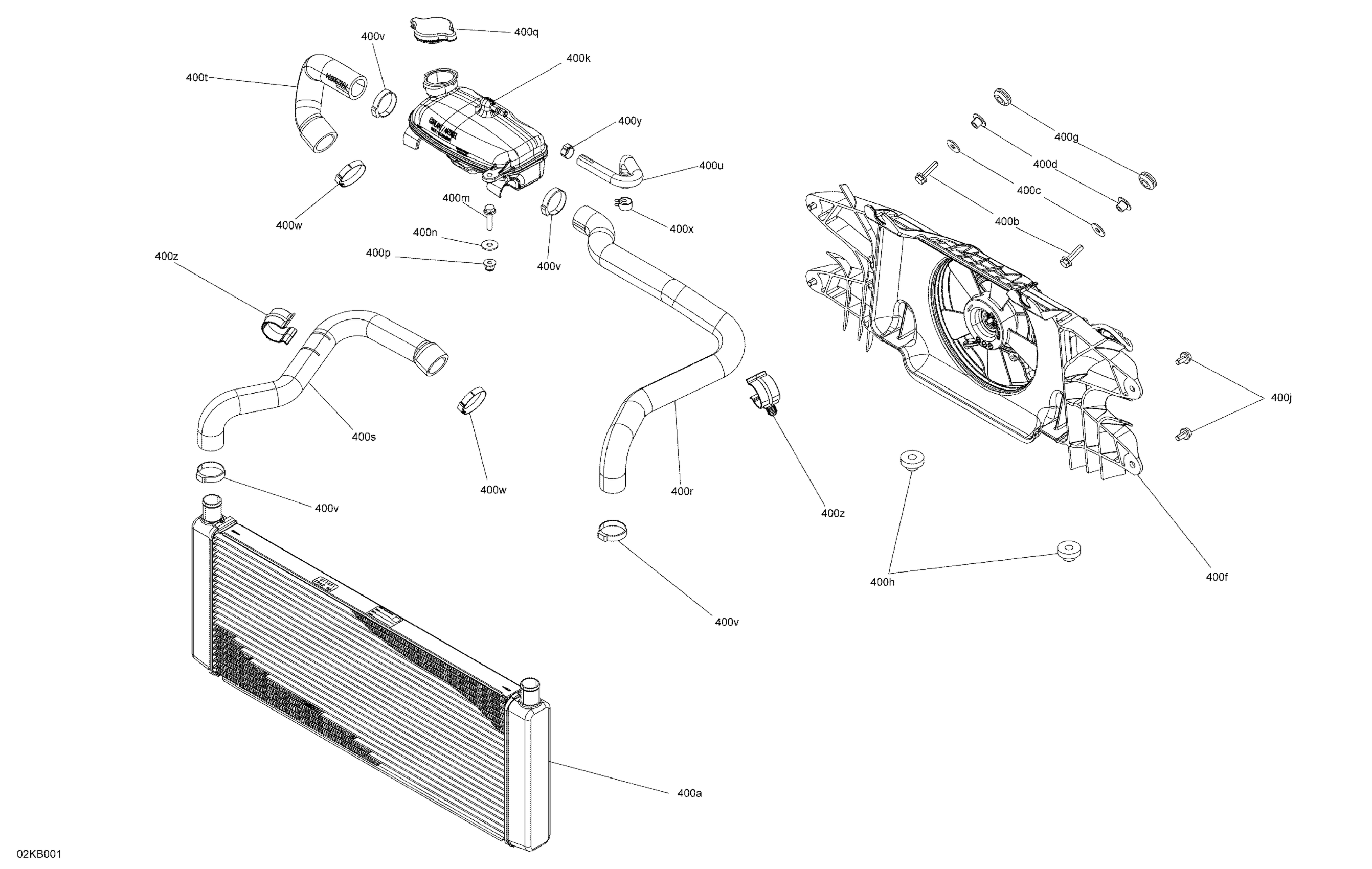

Can-Am RYKER STD 900 ACE - 2022 Engine - Cooling Diagram

Description

Price

400a

Radiator

709200724

$349.99

400b

Hex. Flange Screw M6 X 25

207662534

$2.11

400c

Flat Washer

250200082

$0.42

400d

Bushing

709001288

$9.09

400f

Fan Ass'y With Shroud

709200719

$219.99

400g

Grommet

709000582

$4.69

400h

Grommet

709200948

$8.89

400j

Hex. Flange Screw M6 X 12

207661244

$2.11

400k

Coolant Tank

709200963

$43.99

400m

Hex. Flange Screw M6 X 25

207662534

$2.11

400n

Flat Washer

250200082

$0.42

400p

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

400q

Radiator Pressure Cap

709200207

$25.49

400r

Formed Cooling Hose

709200682

$31.99

400s

Formed Cooling Hose

709200685

$31.99

400t

Formed Cooling Hose

709200684

$17.49

400u

Formed Cooling Hose

709200686

$13.99

400v

Oetiker Clamp

293650141

$4.29

400w

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

400x

Universal Spring Clamp

513033029

$5.39

400y

Oetiker Clamp

293650046

$2.89

400z

Retainer

275500526

$4.55
