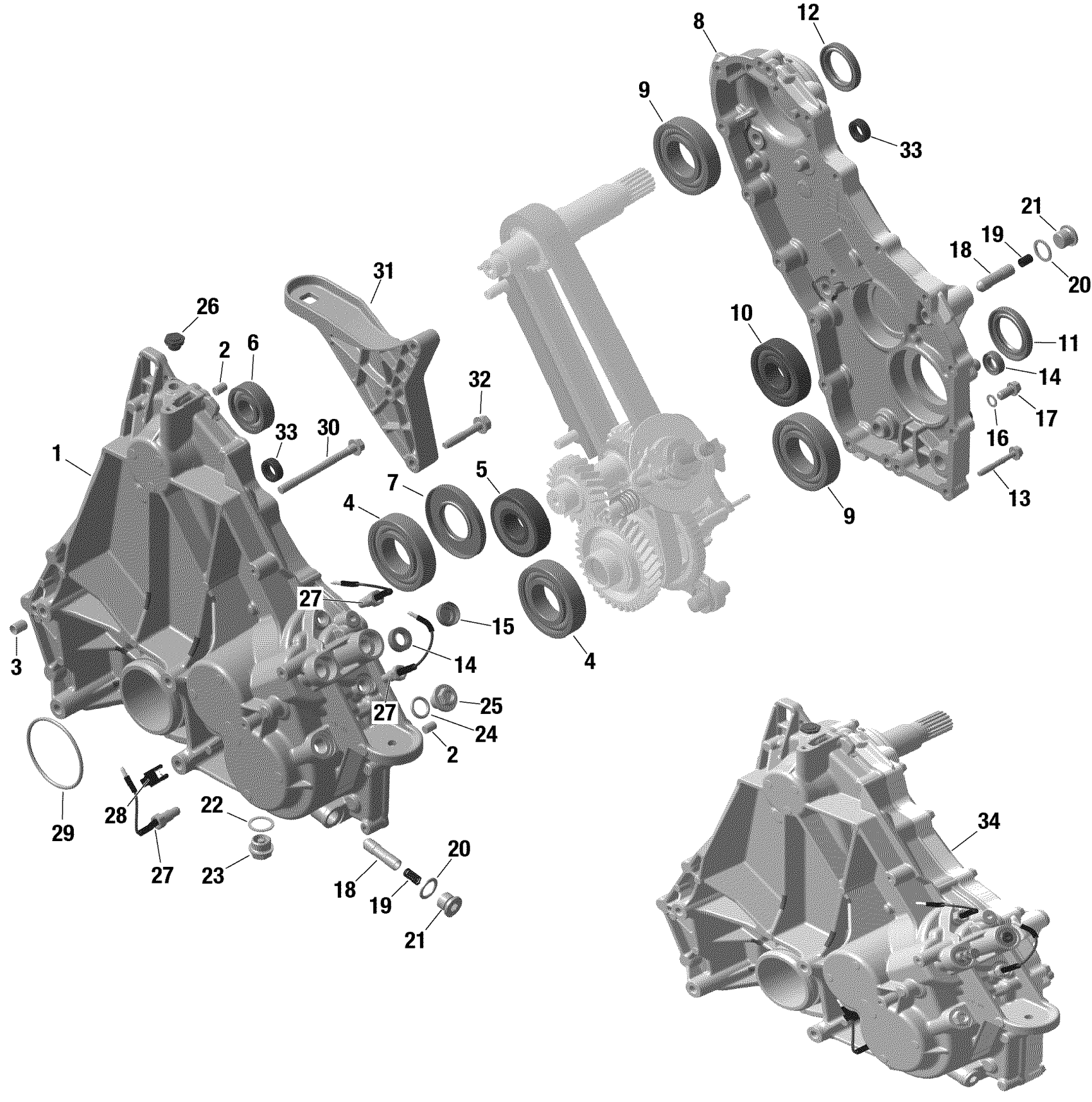

Can-Am RYKER STD 900 ACE - 2022 ROTAX - GearBox Housing Diagram

#

Description
Price

1

Transmission Housing Ass'y

420213008

$659.99

2

Center Pin 8 X 12

420632010

$4.01

3

Dowel Pin 10 X 13

420929670

$11.60

4

Ball Bearing

420632745

$25.99

5

Ball Bearing

420832098

$28.49

6

Ball Bearing 6204

420932433

$23.49

7

Oil Seal

420431402

$19.49

8

Transmission Cover

420213015

$217.49

9

Ball Bearing

420632745

$25.99

10

Ball Bearing

420832098

$28.49

11

Oil Seal

420831187

$17.38

12

Oil Seal

420950089

$19.49

13

Collar Screw M6 X 45

420441921

$2.19

14

Oil Seal

420250457

$17.38

15

Plug

420460031

$4.97

16

Sealing Ring

420950141

$2.00

17

Torx Flange Screw M8 X 16

420440852

$4.12

18

Index Pin

420637990

$14.81

19

Spring

420238065

$2.32

20

Gasket Ring

420430624

$1.89

21

Plug Screw M16 X 1.5

420240234

$14.28

22

Crush Washer

420552280

$3.70

23

Drain Plug M18 X 1.5

420840278

$23.99

24

O-Ring

420650350

$12.11

25

Plug Screw M14 X 1.5

420241662

$15.81

26

Breather Plug

420956590

$12.16

27

3 Position Switch

420640192

$42.49

28

Tie-Rap With Mount

420651810

$6.39

29

O-Ring

420450520

$3.19

30

Collar Hex Screw M8 X 95

420941565

$3.70

31

Engine Bracket Rear Inl

420911783

$22.49

32

Torx Flange Screw M8 X 45

420441932

$1.79

33

Rubber Grommet

420260255

$5.92

34

Transmission Ass'y

420686717

$2,859.99
