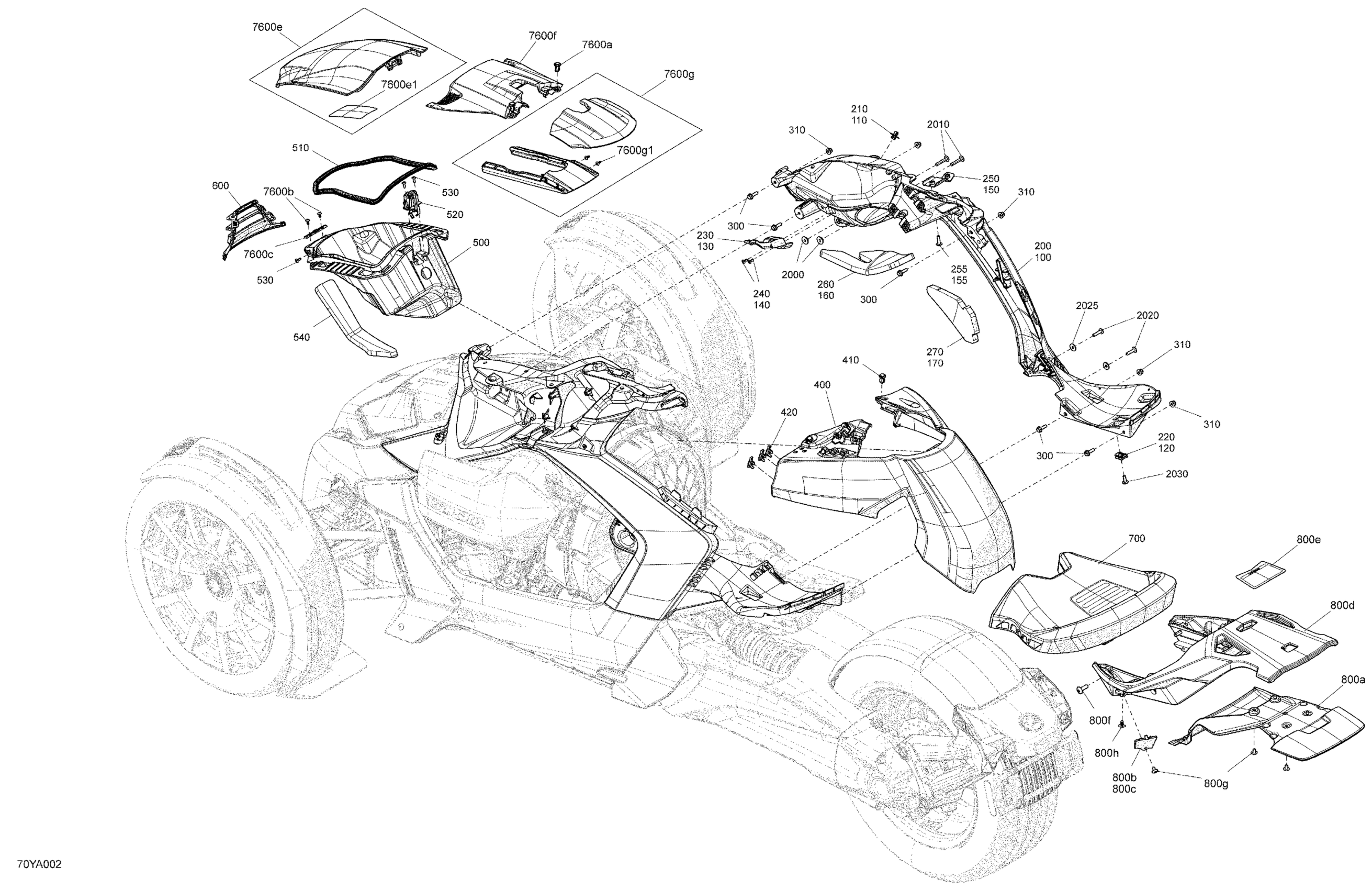

Can-Am RYKER Rally Edition 900 ACE 2021 Body - Upper Section Diagram

#

Description
Price

100

LH Upper Frame

705208901

$145.00

110

Dart Clip

293730080

$1.00

120

Panel Nut M6 X 1.0

250100208

$1.07

130

LH Holder (support)

705013415

$4.00

140

Torx Truss PT K40 x 12

250001131

$1.74

150

Low Beam Support Ass'y

705207855

$21.00

155

Torx Screw M6 X 20

250000722

$1.34

160

LH Upper Front Acoustic Foam

705013944

$4.00

170

LH Upper Rear Acoustic Foam

705013946

$19.00

200

RH Upper Frame

705208902

$145.00

210

Dart Clip

293730080

$1.00

220

Panel Nut M6 X 1.0

250100208

$1.07

230

RH Holder (support)

705013416

$4.00

240

Torx Truss PT K40 x 12

250001131

$1.74

250

Low Beam Support Ass'y

705207855

$21.00

255

Torx Screw M6 X 20

250000722

$1.34

260

RH Upper Front Acoustic Foam

705013945

$5.00

270

RH Upper Rear Acoustic Foam

705013947

$19.00

300

Hex. Flange Screw M6 X 20

207662054

$0.83

310

Hex. Flange Elastic Nut M6

233261466

$1.66

400

Tank Cover | International

705016403

$215.00

400

Tank Cover | North America

705016405

$215.00

410

Tuflok Plastic Rivet

293150230

$1.21

420

Clip Connector

515178223

$1.63

500

Storage Compartment Front

705205819

$110.00

510

Neoprene Seal Joint

708200794

$16.00

520

Push Latch

705007380

$63.00

530

Torx Truss PT K40 x 12

250001131

$1.74

540

Acoustic Foam, Storage Compartment

705013943

$4.00

600

Center Front Fairing

705013110

$21.00

700

Driver Seat | Package AR

708002641

$250.00

800a

Upper Rear Fender

705013197

$205.00

800b

LH Cover

705013619

$7.00

800c

RH Cover

705013620

$7.00

800d

Rear Frame

219400800

$417.00

800e

Warning Decal, Passenger

704907499

Unavailable

800f

Torx Truss M8 X 25

250000874

$1.74

800g

Torx-truss M/s M6 X 10

250000995

$3.61

800h

Rivet, Plastic

293730084

$4.00

2000

Large Shoulder Nut M6

705014119

$6.00

2010

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$1.74

2020

Torx Truss Screw M6 X 25

250000807

$1.74

2025

Stainless Steel Flat Washer

234062670

$1.74

2030

Torx Truss Screw M6 X 16

250000721

$1.39

7600a

Tuflok Plastic Rivet

293150230

$1.21

7600b

Torx-Truss Screw K40 X 10

250001034

$0.81

7600c

Pivot

705013475

$1.00

7600d

Torx Truss PT K40 x 12

250001131

$1.74

7600e

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$81.00

7600e1

Decal Aesthetic Notice

704907056

Unavailable

7600f

Deep Black, Upper Fairing

705012727

$39.00

7600g

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$52.00

7600g1

Torx-Truss Screw K40 X 10

250001034

$0.81
