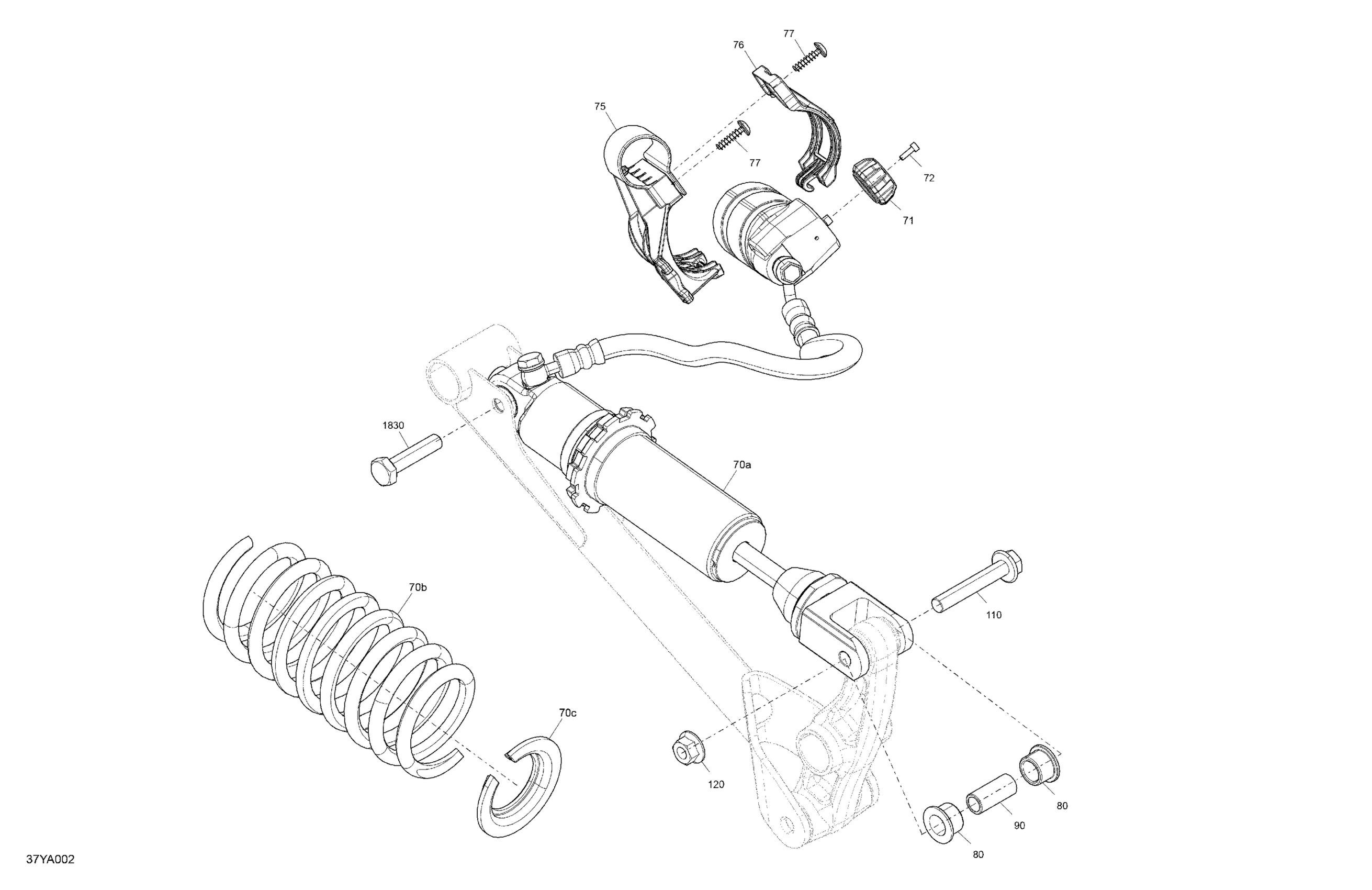

Can-Am RYKER Rally Edition 900 ACE 2021 Suspension - Rear Shocks Diagram

#

Description

Price

70a

Rear Shock Ass'y | Comes with hose & reservoir

706002889

$444.99

70b

Spring Compression, Rear

706002890

$50.99

70c

Spring Stopper

706000567

$15.99

71

Button Adjustment

706003499

$2.99

72

Allen Screw M3 X 0.5 X 10

250000644

$2.11

75

Support Shock Absorber Tank Interior

706003311

$4.19

76

Support Shock Absorber Tank Exterior

706003312

$4.19

77

Torx Screw Truss Head K50X20 T20

250000760

$2.11

80

Urethane Bushing

503189117

$8.19

90

Spacer

706002678

$3.99

110

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$4.50

120

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

1830

Hexagonal Screw M10 x 45

207204556

$2.64
