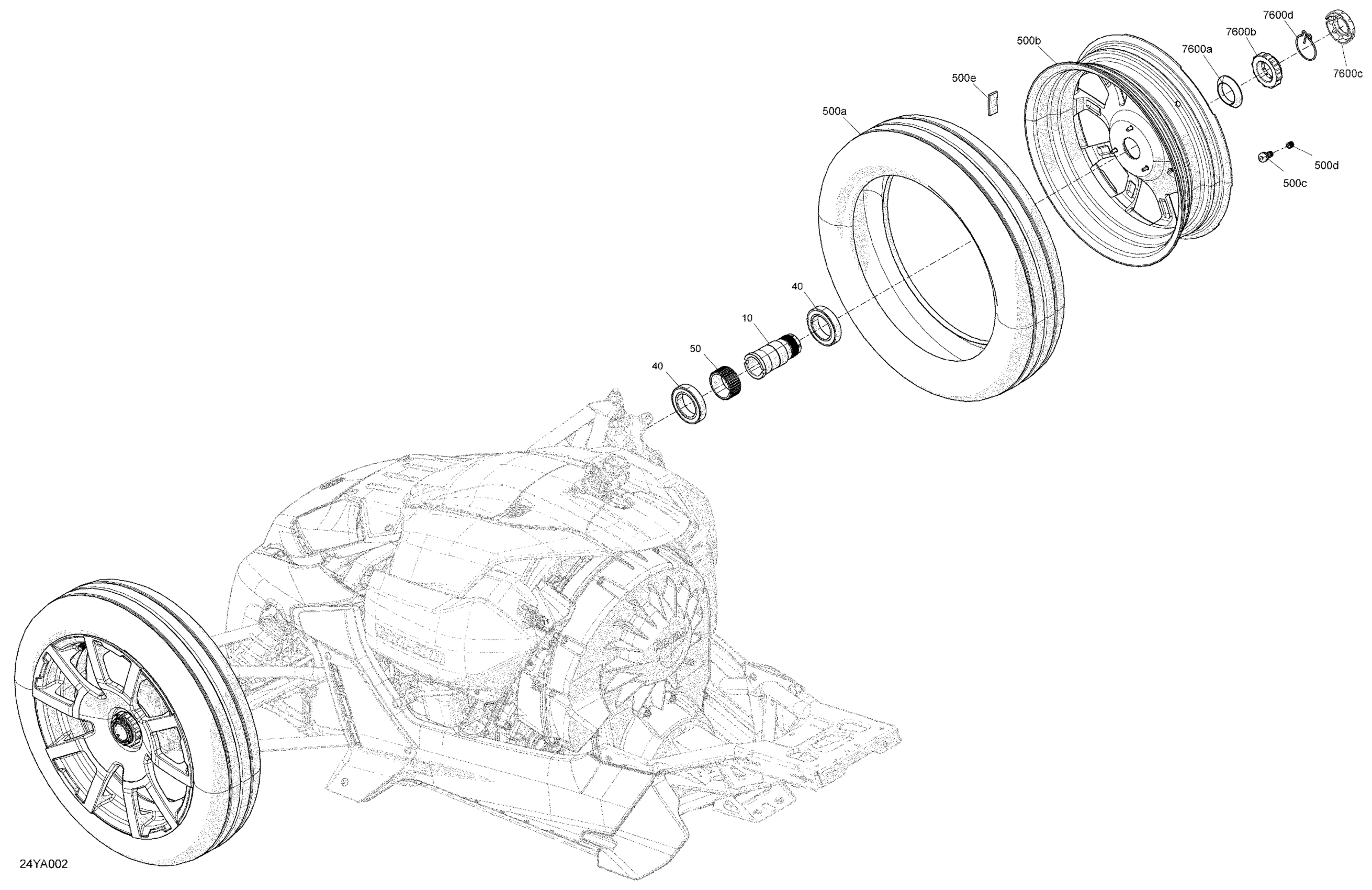

Can-Am On-Road 003 - RYKER Rally Edition 900 ACE 2021 04- Drive - Front Wheels Diagram

#

Description
Price

10

LH Front Wheel Axle

706204864

$78.49

40

Ball Bearing

293350059

$30.99

50

Tone Ring (trigger wheel) | Includes 60 to 60e

705601557

$38.99

500a

Front Tire

705402051

$116.49

500b

Carbon Black, Front Wheel | Machined face

705402662

$370.49

500c

Rim Valve With Cap

705400193

$8.69

500d

Valve Cap

293000110

$1.59

500e

Balancing Weight

705503182

$4.69

7600a

Conical Support Ring

705401983

$17.59

7600b

Wheel Nut M45

705402730

$31.99

7600c

Hub Cap

705402677

$6.39

7600d

External Retaining Ring

293370168

$2.32
