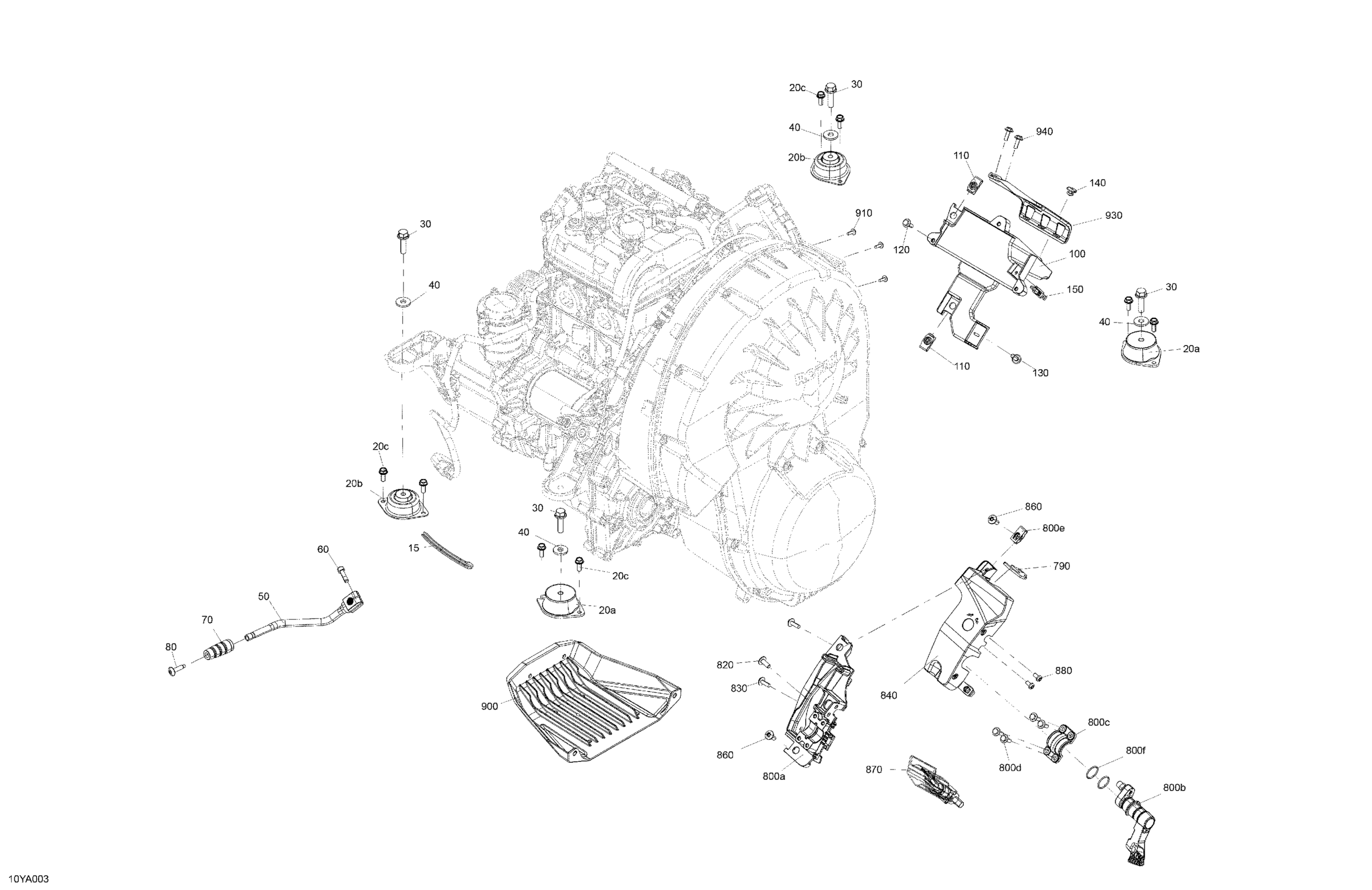

Can-Am RYKER Rally Edition 900 ACE 2021 Engine - System Diagram

#

Description
Price

15

Trim 1000Mm Long

219704354

$15.99

20a

Rubber Mount

512061145

$54.99

20b

Rubber Mount

512060448

$51.99

20c

Hex. Flange Screw M6 X 16

210261650

$1.67

30

Hex. Flange Screw S.GRIP M8 X 30

207583054

$2.19

40

Yellow, Washer

503183200

$3.19

50

Shift Lever

707002045

$88.99

60

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

70

End Clutch Pedal

707000456

$8.89

80

Torx Screw M6 X 25 | XT Models

250000728

$4.44

100

Support Module

707002214

$10.49

110

Panel Nut M6 X 1.0

250100198

$2.11

120

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

130

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

140

Pop Rivet 3/16"

390406500

$0.88

150

Clip Connector

515178223

$2.09

790

Bracket

707002273

$2.75

800a

Support Parking Brake

707002218

$15.49

800b

Parking Brake Lever | Includes 100w2 to 100w2a

707002827

$19.09

800c

Clamp

707002240

$2.11

800d

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

800e

Panel Nut M6 X 1.0

250100198

$2.11

800f

O-Ring

293300079

$6.66

820

Torx Head Screw M6 X 16

250000717

$2.11

830

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

840

Cover

707002239

$4.23

840

Cover

707002241

$5.18

860

Torx Head Screw M6 X 16

250000717

$2.11

900

Plate Skid, Polyone | Package AR

707002350

$8.50

870

Padlock with Key

707000666

$25.99

880

Socket Head Screw M5 X 10

205951046

$2.43

910

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

900

Plate Skid, Polyone | Package AR

707002350

$8.50

910

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

930

Deflector

707002582

$16.49

940

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
