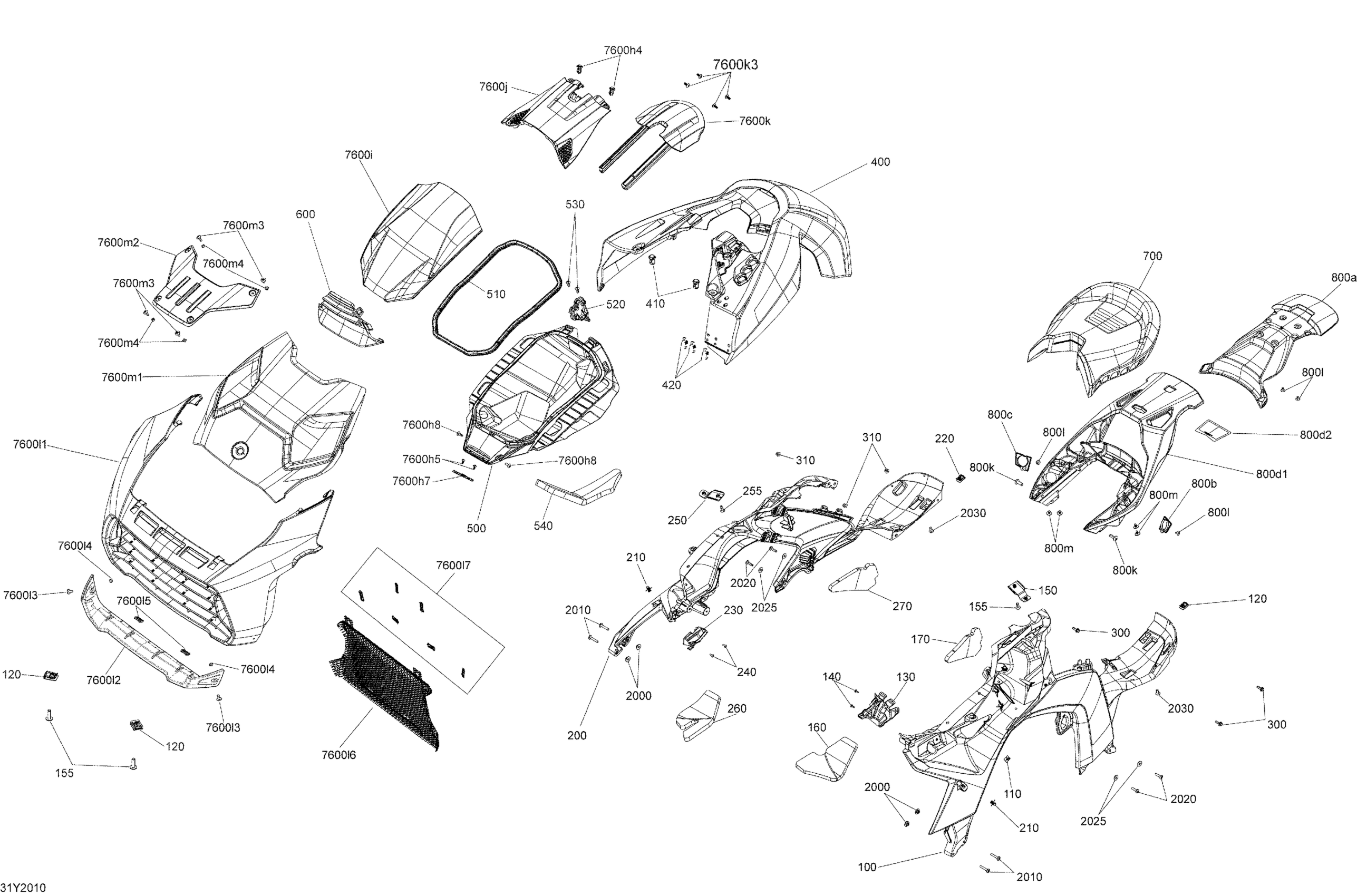

Can-Am RYKER Rally Edition 900 ACE, 2020 Body - Hood / Grill / Driver Seat / Upper Body Module Diagram

LH Upper Frame

705205817

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

LH Holder (support)

705013415

$4.19

Torx Truss Screw K40 X 12

250000577

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

LH Upper Front Acoustic Foam

705013944

$4.39

LH Upper Rear Acoustic Foam

705013946

$19.49

RH Upper Frame

705205818

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

RH Holder (support)

705013416

$4.19

Torx Truss Screw K40 X 12

250000577

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

RH Upper Front Acoustic Foam

705013945

$5.49

RH Upper Rear Acoustic Foam

705013947

$19.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Tank Cover | North America

705016405

$214.99

Tank Cover | International

705016403

$214.99

Tuflok Plastic Rivet

293150230

$1.47

Clip Connector

515178223

$2.09

Storage Compartment Front

705205819

$109.99

Neoprene Seal Joint

708200794

$15.99

Push Latch

705007380

$62.99

Torx Truss Screw K40 X 12

250000577

$2.11

Acoustic Foam, Storage Compartment

705013943

$4.39

Center Front Fairing

705013110

$20.99

Driver Seat | Package AR

708002641

$249.99

Upper Rear Fender

705013197

$204.99

LH Cover

705013619

$6.99

RH Cover

705013620

$6.99

Rear Frame

219400800

$417.49

Warning Decal, Passenger

704907499

Unavailable

Torx Truss M8 X 25

250000874

$2.11

Torx-truss M/s M6 X 10

250000995

$4.44

Rivet, Plastic

293730084

$4.39

Large Shoulder Nut M6

705014119

$6.14

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Tuflok Plastic Rivet

293150230

$1.47

Torx-Truss Screw K40 X 10

250001034

$0.98

Pivot

705013475

$1.49

Torx Truss Screw K40 X 12

250000577

$2.11

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$80.99

Decal Aesthetic Notice

704907056

Unavailable

Deep Black, Upper Fairing

705012727

$38.99

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$51.99

Torx-Truss Screw K40 X 10

250001034

$0.98

Deep Black, Front Fascia

705013345

$98.99

Front Trim, Sterling Silver Satin | P-AR

705013450

$229.99

Torx Truss Head Screw W Nylon M5X14

250001059

$2.11

Square Nut M5 X 0.8

232852411

$1.47

Flat Clip

705004838

$7.73

Black Epoxy, Protective Steel Grille

705013347

$58.99

Flat Clip

705004838

$7.73

Deep Black, Hood | P-AR

705013349

$37.99

Hood Accent, Sterling Silver Satin | P-AR

705013451

$224.99

Torx Truss Head Screw W Nylon M5X14

250001059

$2.11

Square Nut M5 X 0.8

232852411

$1.47

Waranty Registration Form

219400038

Unavailable

2020 English Operator's Guide | Not shown

219002074

Unavailable

Roadside Assistance Booklet | Canada/USA

219002015

Unavailable
