Description

Price

100

LH Upper Frame

705205817

$144.99

110

Dart Clip

293730080

$1.15

120

Panel Nut M6 X 1.0

250100208

$1.46

130

LH Holder (support)

705013415

$4.19

140

Torx Truss Screw K40 X 12

250000577

$2.11

150

Low Beam Support Ass'y

705207855

$20.99

155

Torx Screw M6 X 20

250000722

$1.68

160

LH Upper Front Acoustic Foam

705013944

$4.39

170

LH Upper Rear Acoustic Foam

705013946

$19.49

200

RH Upper Frame

705205818

$144.99

210

Dart Clip

293730080

$1.15

220

Panel Nut M6 X 1.0

250100208

$1.46

230

RH Holder (support)

705013416

$4.19

240

Torx Truss Screw K40 X 12

250000577

$2.11

250

Low Beam Support Ass'y

705207855

$20.99

255

Torx Screw M6 X 20

250000722

$1.68

260

RH Upper Front Acoustic Foam

705013945

$5.49

270

RH Upper Rear Acoustic Foam

705013947

$19.49

300

Hex. Flange Screw M6 X 20

207662054

$1.01

310

Hex. Flange Elastic Nut M6

233261466

$2.00

400

Tank Cover | North America

705016405

$214.99

401

Tank Cover | International

705016403

$214.99

410

Tuflok Plastic Rivet

293150230

$1.47

420

Clip Connector

515178223

$2.09

500

Storage Compartment Front

705205819

$109.99

510

Neoprene Seal Joint

708200794

$15.99

520

Push Latch

705007380

$62.99

530

Torx Truss Screw K40 X 12

250000577

$2.11

540

Acoustic Foam, Storage Compartment

705013943

$4.39

600

Center Front Fairing

705013110

$20.99

630

Torx Truss Screw M6 X 25

250000807

$2.11

700

Driver Seat | Package AR

708002641

$249.99

800a

Upper Rear Fender

705013197

$204.99

800b

LH Cover

705013619

$6.99

800c

RH Cover

705013620

$6.99

800da

Rear Frame

219400800

$417.49

800db

Warning Decal, Passenger

704907499

Unavailable

800e

Torx Truss M8 X 25

250000874

$2.11

800f

Torx-truss M/s M6 X 10

250000995

$4.44

800g

Rivet, Plastic

293730084

$4.39

2010

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

2020

Torx Truss Screw M6 X 25

250000807

$2.11

2025

Stainless Steel Flat Washer

234062670

$2.11

2030

Torx Truss Screw M6 X 16

250000721

$1.69

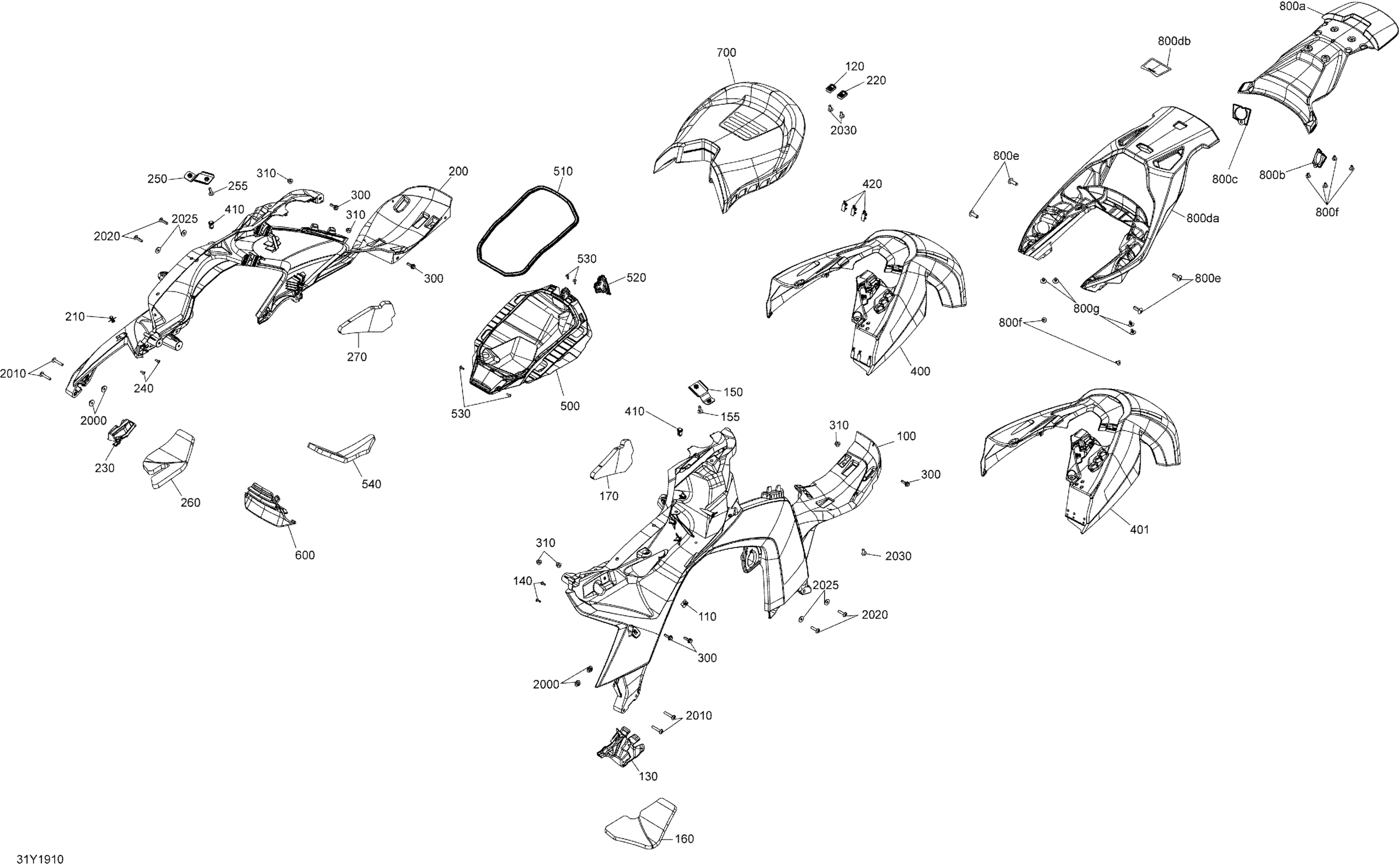

Can-Am RYKER Rally Edition 900 ACE, 2019 Body - Driver Seat / Upper Body Module Diagram

LH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

LH Holder (support)

Torx Truss Screw K40 X 12

Low Beam Support Ass'y

Torx Screw M6 X 20

LH Upper Front Acoustic Foam

LH Upper Rear Acoustic Foam

RH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

RH Holder (support)

Torx Truss Screw K40 X 12

Low Beam Support Ass'y

Torx Screw M6 X 20

RH Upper Front Acoustic Foam

RH Upper Rear Acoustic Foam

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6

Tank Cover | North America

Tank Cover | International

Tuflok Plastic Rivet

Clip Connector

Storage Compartment Front

Neoprene Seal Joint

Push Latch

Torx Truss Screw K40 X 12

Acoustic Foam, Storage Compartment

Center Front Fairing

Torx Truss Screw M6 X 25

Driver Seat | Package AR

Upper Rear Fender

LH Cover

RH Cover

Rear Frame

Warning Decal, Passenger

Torx Truss M8 X 25

Torx-truss M/s M6 X 10

Rivet, Plastic

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Torx Truss Screw M6 X 16
