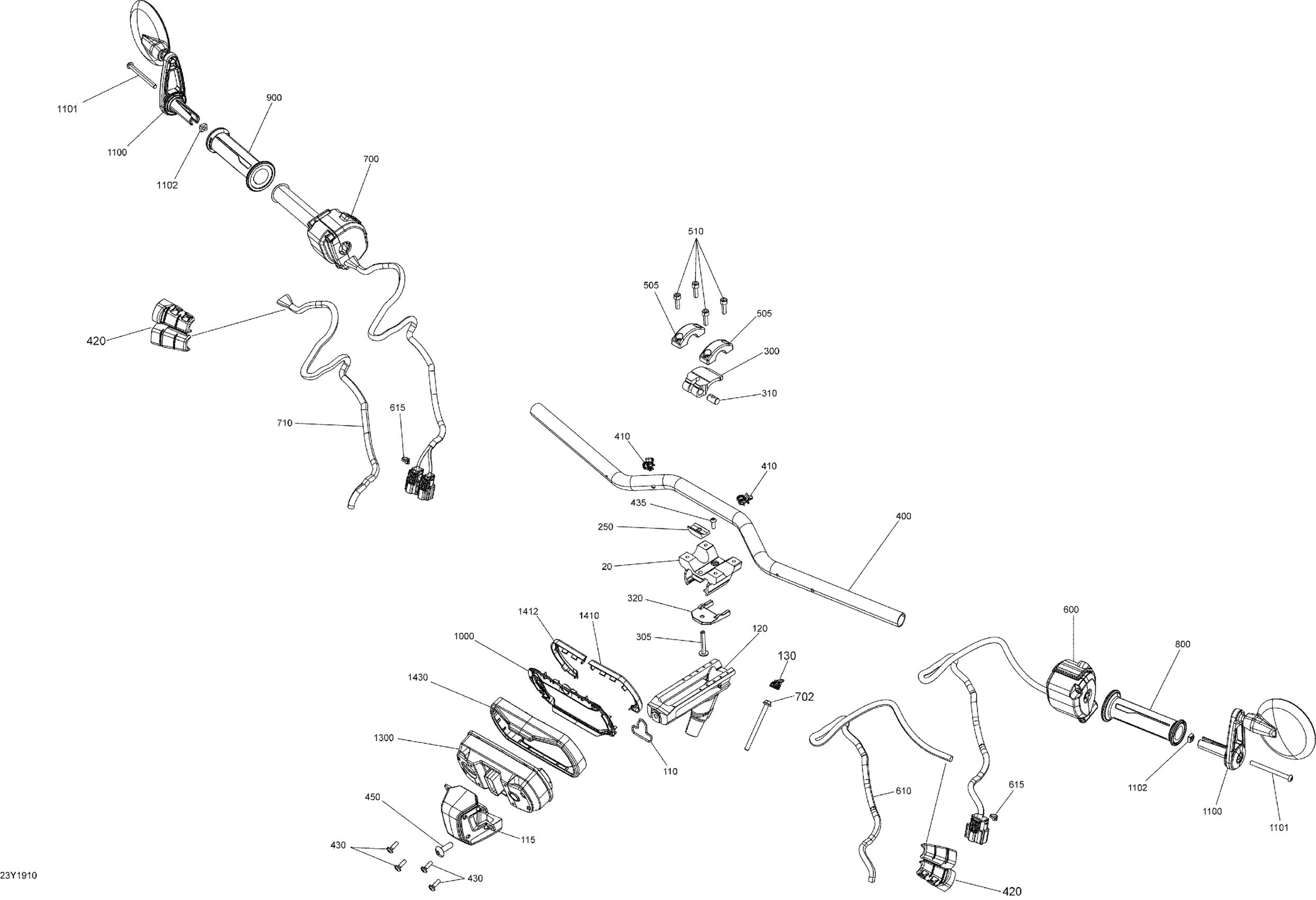

Can-Am On-Road 003 - RYKER Rally Edition 900 ACE, 2019 07- Steering - Handlebar / Cluster Support Diagram

Description

Price

Slide

709402452

$33.99

110

Steel Cable Support

709402267

$14.99

115

Deep Black, Cluster Support

709402243

$33.99

120

Deep Black, Stem

709402683

$129.99

130

Cap

709402276

$0.99

250

Compression Block

506153054

$0.78

255

Shim

709402378

$5.89

300

Deep Black, Release Lever

709402279

$24.49

305

Torx-Truss M/S M6 X 40

709402320

$4.65

310

Pin Lever

709402454

$8.50

320

Rocker Arm

709402273

$14.22

400

Carbon Black, Handle Bar

709402265

$41.49

410

Wire Guide

709402101

$3.09

420

Wire Guide

709402370

$3.09

430

Torx Screw K50 X 16

250000720

$1.69

435

Screw-Torx Button Head M5 X 14

235551454

$7.51

450

Torx Truss M8 X 25

250000874

$2.11

505

Deep Black, Handle Bar Clamp

709402255

$4.59

510

Socket Head Screw M6 X 20 S.Grip

205562054

$1.90

600

LH Multifunction Switch

710005274

$148.49

610

Braided Sleeve

415130141

$55.99

615

Tie Wrap 94 mm | 4X4

293750001

$1.03

700

RH Multifunction Switch & Throttle

710005275

$264.99

702

Hex. Flange Screw M8 X 100

230680054

$8.05

710

Braided Sleeve

415130141

$55.99

800

LH Handle Grip

709401984

$20.49

900

RH Handle Grip

709401985

$20.49

950>950d

Hand Guard Kit

219400998

$106.49

950a

Not Available As Spare Part - Friction Washer

Unavailable

950b

Not Available As Spare Part - Friction Washer

Unavailable

950c

Deep Black, Outside Fixing Clamp

709402171

$4.86

950d

Black, Socket Head Screw M4 X 16

250001011

$1.47

1000

Gauge Trim

709402742

$13.99

1100

Rear-View Mirror Ass'y

705018904

$19.49

1101

Torx Screw Button Head M6 X 70

235567084

$7.51

1102

Square Nut M6

232862412

$1.49

1300

Multifunction Gauge

710005165

$224.99

1410

Deep Black, LH Trim Gauge

709402210

$28.99

1412

Deep Black, RH Trim Gauge

709402211

$28.99

1430

Rear Cluster Cap

709402092

$13.99
