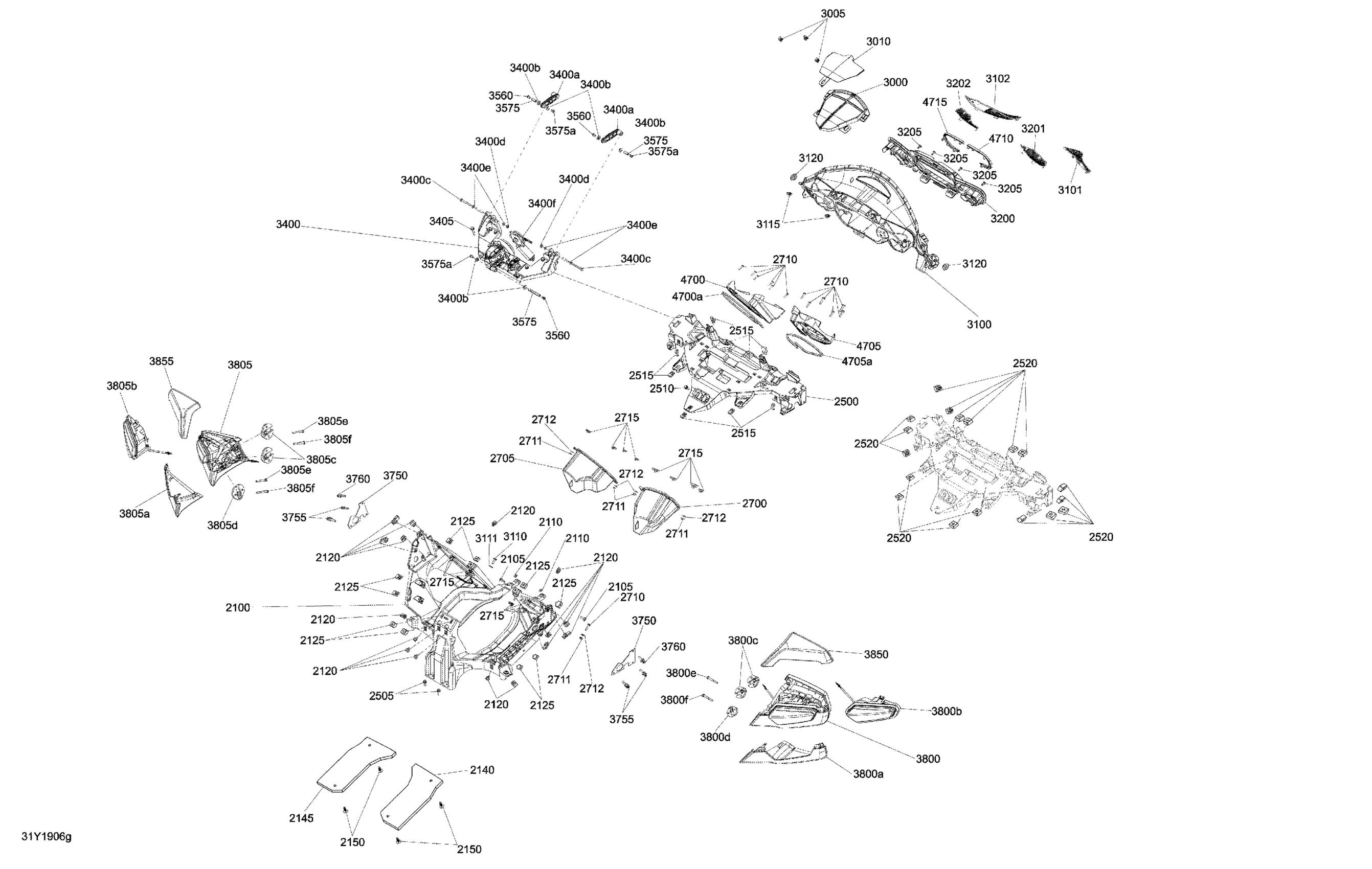

Can-Am RT LTD SE6, 2019 System Console - Front Console, Mirrors & Supports Diagram

Console Support

705002743

$99.99

Torx Screw M6 X 20

250000712

$2.11

Torx Screw M6 X 20

250000712

$2.11

Square Nut M6

232862412

$1.49

Panel Nut M6 X 1.0

250100198

$2.11

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

LH Acoustic Foam

707800349

$18.49

RH Acoustic Foam

707800341

$18.49

Black, Dart

293730006

$0.99

Console Cross-support

705012150

$82.99

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Screw M6 X 20

207662044

$2.00

Panel Nut M6 X 1.0

250100198

$2.11

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

LH Speaker Housing Ass'y

705011996

$20.99

RH Speaker Housing Ass'y

705011997

$19.49

Torx Screw M5 X 25

250000762

$2.11

Hex. Flange Nut M5

250100071

$2.11

Washer M5

250200025

$0.74

Panel Nut M5 X 0.8

250000958

$4.23

Guide Chart Support

705002746

$27.99

Edge Clip

517302785

$0.88

Guide Chart

705009360

$27.99

Dashboard

705006656

$114.99

LH Lower Speaker Grille

705011416

$13.69

RH Lower Speaker Grille

705011417

$14.69

Torx Screw M6 X 20

250000722

$1.68

Flat washer M6

250200164

$1.01

Panel Nut M5 X 0.8

250000958

$4.23

Oval Washer

705000321

$5.61

Dashboard Bezel

705011418

$49.99

LH Upper Speaker Grille

705011603

$4.66

RH Upper Speaker Grille

705011605

$4.66

Torx Screw M5 X 14

250000742

$1.47

Motor Support Ass'y

705011453

$759.99

Rear Arm Ass'y

219800432

$83.99

Sleeve

705003267

$9.48

Hex. Screw M6 X 50

207065060

$2.22

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

Windshield Motor

278002579

$234.99

Hex. Flange Screw M6 X 35

207663544

$0.90

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

Console Support Plate

705003779

$27.99

Spherical Head Stud

705004322

$17.26

Spherical Head Stud

705004323

$17.26

Housing with Spring | Includes 3 to 5

219800156

$21.99

Housing with Spring

219800158

$11.49

Screw

219800118

$6.35

Screw 2.9 X 12.5

219800157

$6.89

LH Mirror, Dark | All Except Option Chrome

708400304

Unavailable

LH Lower Mirror Shell

705003148

$144.99

LH Front Flasher Unit

710006197

$164.49

Housing with Spring | Includes 3 to 5

219800156

$21.99

Housing with Spring

219800158

$11.49

Screw

219800118

$6.35

Screw 2.9 X 12.5

219800157

$6.89

RH Mirror Assembly | Includes 10 to 18

708400147

$306.99

RH Lower Mirror Shell

705003159

$144.99

RH Front Flasher Unit

710001511

$163.99

Housing with Spring | Includes 3 to 5

219800156

$21.99

Housing with Spring

219800158

$11.49

Screw

219800118

$6.35

Screw 2.9 X 12.5

219800157

$6.89

RH Mirror, Dark | All Except Option Chrome

708400305

$306.99

RH Lower Mirror Shell

705003159

$144.99

RH Front Flasher Unit

710006198

$164.49

Housing with Spring | Includes 3 to 5

219800156

$21.99

Housing with Spring

219800158

$11.49

Screw

219800118

$6.35

Screw 2.9 X 12.5

219800157

$6.89

LH Upper Mirror Shell, Chrome | Model-RT LTD

705007399

$119.99

Carbon Black, LH Mirror Shell | Model with Package SPE

705008716

$139.99

RH Upper Mirror Shell, Chrome | Model-RT LTD

705007400

$119.99

Carbon Black, RH Mirror Shell | Model with Package SPE

705008717

$139.99

RH Speaker Support Ass'y | Includes 4700 to 4700a

708400242

$13.62

Seal 1000Mm Long

219704373

$8.26

LH Speaker Support Ass'y | Includes 4705 to 4705a

708400243

$12.99

Seal 1000Mm Long

219704373

$8.26

Deep Black, LH Trim Gauge

705012349

$5.59

Hyper Silver, LH Trim Gauge

705012755

$49.99

Deep Black, RH Trim Gauge

705012351

$5.59

Hyper Silver, RH Trim Gauge

705012756

$49.99
