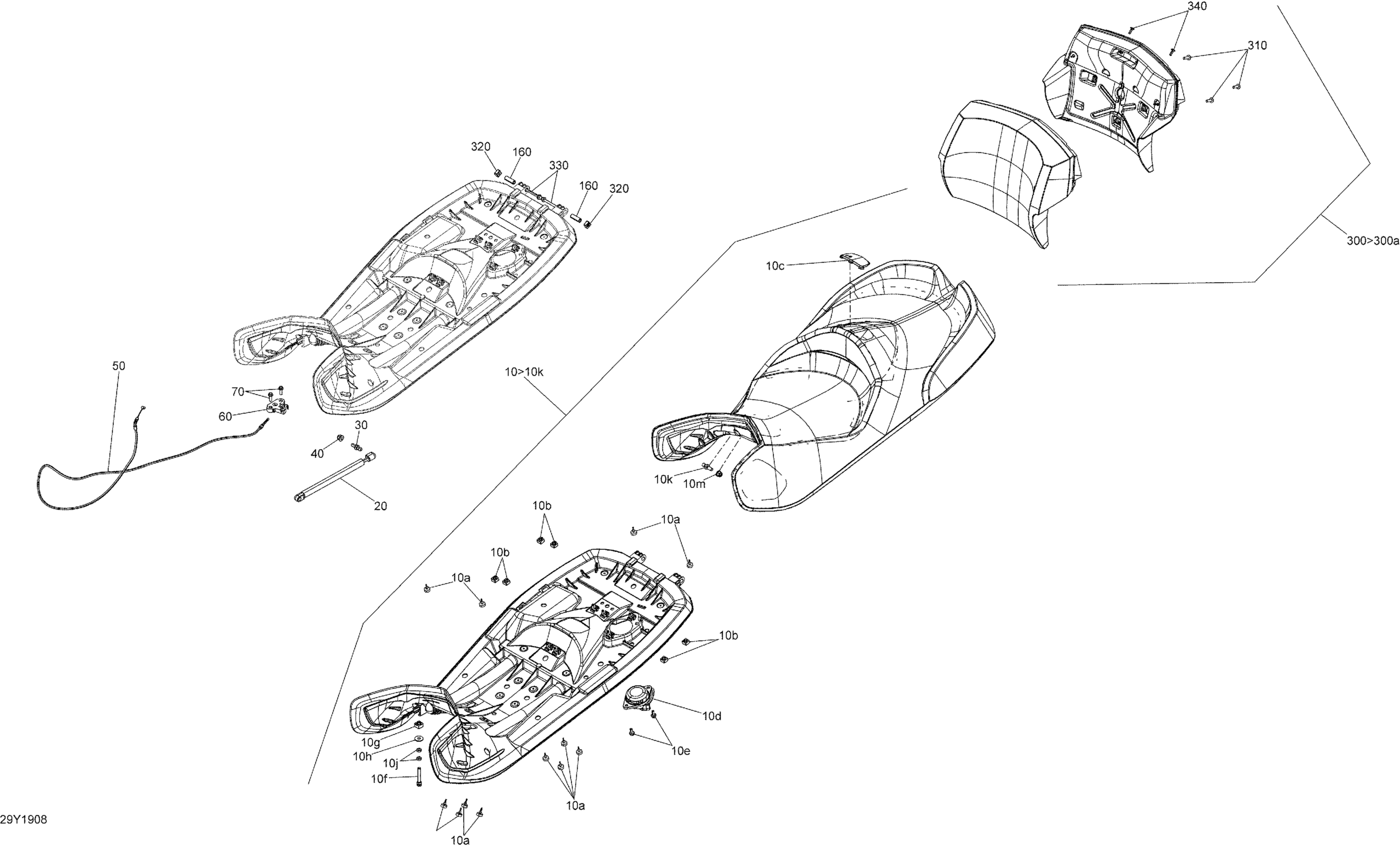

Can-Am RT LTD SE6, 2019 Seat Diagram

#

Description
Price

10>10k

Seat 2 Places Ass'y | Model with Package SPE

708002541

$689.99

10a

Rubber Stopper

708000759

$4.19

10b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

10c

Black Cap

708001633

$10.99

10d

Passenger Detection Switch

710008103

$76.99

10e

Hex. Flange Screw M6 X 16

207661644

$0.74

10f

Lug

705002223

$25.99

10g

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

10h

Flat Washer 8 mm

234082410

$1.47

10i

Hex. Jam Nut M8

232180600

$0.67

10j

Ball Head Stud

250300039

$7.51

10k

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Gaz Shock

708000658

$83.99

30

Ball Head Stud

250300039

$7.51

40

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Seat Cable

708001743

$53.99

60

Latch

705007379

$28.99

70

Hexagonal Head Screw

210262050

$2.11

160

Spacer

708000664

$6.49

300>300a

KIT BACKREST PASSENGER ASSY - Call your local BRP dealership | Package LTD

219800455

Unavailable

300a

Tuflok Plastic Rivet

293150230

$1.47

310

Torx Screw K50 X 16

250000720

$1.69

320

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

330

Hex. Flange Screw M6 X 60

250000778

$4.44

340

Torx Screw K50 X 16

250000720

$1.69
