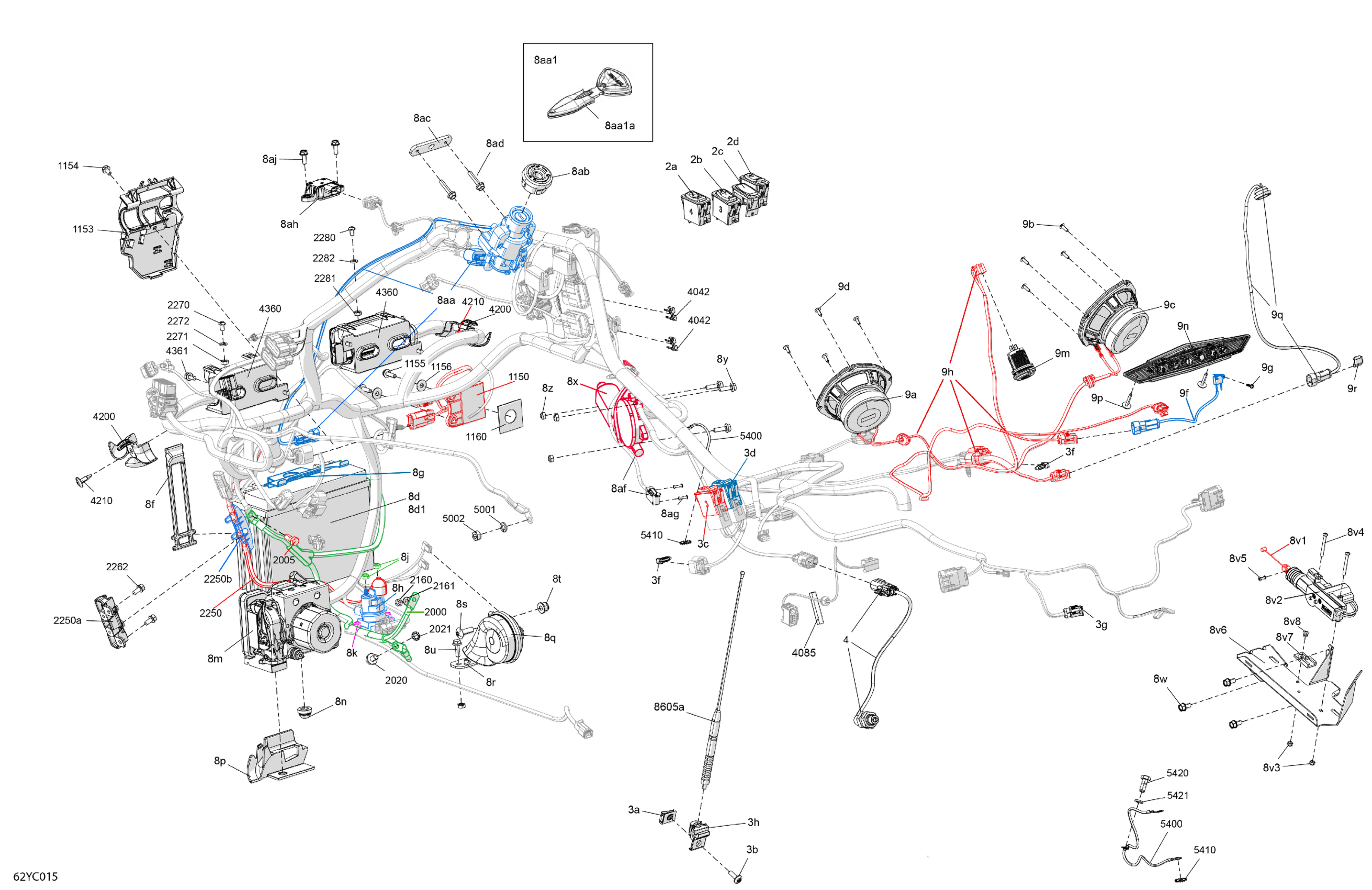

Can-Am RT LIMITED - Dark Edition - Hyper Silver, 2023 Electric - System Diagram

#

Description
Price

2a

Windshield Switch

710007705

$41.49

2b

Heated Grip Switch

710007706

$41.49

2c

Switch Hole Cap

517306808

$14.49

2d

Heated Seat Switch

710007707

$43.49

3a

Panel Nut M6 X 1.0

250100208

$1.46

3b

Torx Screw M6 X 20

250000722

$1.68

3c

Heated Grip Switch

710007706

$41.49

3d

Heated Seat Switch

710007707

$43.49

3f

Connector Holder

710002033

$3.39

3g

Connector Holder

710002033

$3.39

3h

Antenna Support | Includes 0ah to 0ah1

708301797

$13.99

4

Brake Switch

710008326

$49.99

8d

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

$142.98

8d1

Battery Bolt Kit

515179142

$8.22

8f

Latch

520000528

$7.69

8g

Battery Holder

710002893

$17.49

8h

Starter Relay

278003012

$42.49

8j

Hex. Elastic Stop Nut M6

232561600

$1.15

8k

Hex. Flange Elastic Nut M6

233261466

$2.00

8m

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

8n

Shock Damper

710003279

$10.49

8p

VCM Harness Protector

710003996

$2.79

8q

Horn

710004940

$29.49

8r

Horn Support

710005769

$15.99

8s

Torx Truss M8 X 25

250000874

$2.11

8t

Hex. Flange Elastic Nut M8

233281414

$1.47

8u

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8v1

Reverse Cable

710002889

$31.99

8v2

Actuator

710011269

$64.99

8v3

Elastic Stop Nut M4

232541414

$0.58

8v4

Socket Head Screw M4 X 40

205444056

$2.11

8v5

Pop Rivet 5/32

390403000

$0.40

8v6

Reverse Actuator Support

710005642

$30.99

8v7

Clip

270000141

$11.49

8v8

Pop Rivet 3/16"

390402400

$0.35

8w

Hex. Flange Screw M6 X 12

210261250

$1.90

8x

Actuator Motor

710007256

$227.99

8y

Hex. Flange Screw M6 X 20

207662054

$1.01

8z

Elastic Stop Nut M6

232561434

$1.99

8aa

Ignition Switch | Includes 35b to 35b2

710007316

$296.49

8aa1

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

8aa1a

Key Sleeve

710003597

$26.49

8aa2

DESS Antenna

219800373

$60.49

8ab

Switch Cover

710003594

$16.49

8ac

Switch Support

710001365

$20.99

8ad

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

8af

Brake Pressure Switch Ass'y

710001379

$43.49

8ag

Pop Rivet

293150150

$2.40

8ah

Yaw Rate Sensor

710005658

$179.99

8aj

Hex. Flange Screw M6 X 16

210261650

$1.67

9a

4.5" Speaker

710005433

$35.99

9b

Torx Truss PT K40 x 12

250001131

$2.11

9c

4.5" Speaker

710005433

$35.99

9d

Torx Truss PT K40 x 12

250001131

$2.11

9f

Open Detection

710005315

$18.54

9g

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.56

9h

Upper Rear Box Wiring Harness

710008257

$53.99

9m

USB Outlet

219400510

$42.99

9n

Tail Light

520002710

$78.49

9p

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

9q

Trunk Light

710001533

$67.99

9r

Clip Bracket Connector (edge)

409210100

$2.09

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

2000

Pos Cable

710008074

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Elastic Stop Nut M6

232561434

$1.99

2161

Stainless Flat Washer M6

234061600

$0.33

2250

Battery Wiring Harness | Includes 2250 to 2250r

710007687

$99.99

2250a

Fuse Holder Support

710008098

$23.99

2250b

Fuse Holder Cover

710008154

$43.49

2262

Hex. Flange Screw M6 X 12

210261250

$1.90

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

4042

Lock

710001222

$2.09

4085

Trim 1000Mm Long

219704354

$15.99

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Tank Cable

710004849

$19.49

5410

Lock Washer Serrated M6

250200041

$1.15

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5421

Washer

250200111

$2.11

8604

Connector Holder

710002033

$3.39

8605

Connector Holder

710002033

$3.39

8605a

Antenna

710005434

$27.49

8605b

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69
