Description

Price

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706001552

$116.49

160b

Shock Absorber Spring

706001542

$61.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160f

Urethane Cushion

503191609

$18.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

205

Air Valve

706002797

$18.49

210

Compressor

706001349

$469.99

230

Pneumatic Connector

706004028

$19.49

235

Circlip

293370123

$2.69

240

Connector

706000869

$34.99

245

Hose 4.32Mm 3000Mm Long

219704415

$55.99

250

Hose 4.32Mm 3000Mm Long

219704415

$55.99

260

Compressor Isolator

706000631

$13.99

270

Compressor Bracket

503193103

$4.69

280

Hex. Flange Nut M6

233061414

$1.68

290

Hex. Flange Screw M6 X 20

207662044

$2.00

300

Air Damper Kit

219800175

$291.49

300a

Not Available As Spare Parts

XXX

Unavailable

300b

Elbow 90°

706001018

$28.99

300c

Jam Nut M20

250100119

$4.13

310

Support Plate

706001082

$19.49

320

Hex. Forming Screw M6 X 10

210261050

$1.69

350

Hex. Flange Screw M8 X 75

207687544

$7.41

360

Air Pressure Manifold | Included 360 to 360d

706003947

$299.99

360c

Elbow 90°

706000928

$27.99

360d

Connector

706000869

$34.99

370

Torx Head Screw M4 X 12

250000915

$2.96

380

Tie Rod

706202505

$23.99

390

Suspension Sensor

710004740

$159.99

400

Hex. Flange Screw M5 X 10

207551044

$4.12

410

Hex. Flange Screw M6 X 20

207662044

$2.00

420

Hex. Flange Nut M6

233061414

$1.68

520

Elbow 90°

706000928

$27.99

530

Ckeck Valve

706000831

$38.99

540

Hose 4.32Mm 3000Mm Long

219704415

$55.99

600

Lever

706004639

$13.99

610

Torx Truss PT K40 x 12

250001131

$2.11

1810

Spacer

706000410

$13.99

1811

Hex. Flange Screw M10 X 140

230604034

$6.77

1812

Hex. Flange Elastic Nut M10

233201434

$2.09

1820

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

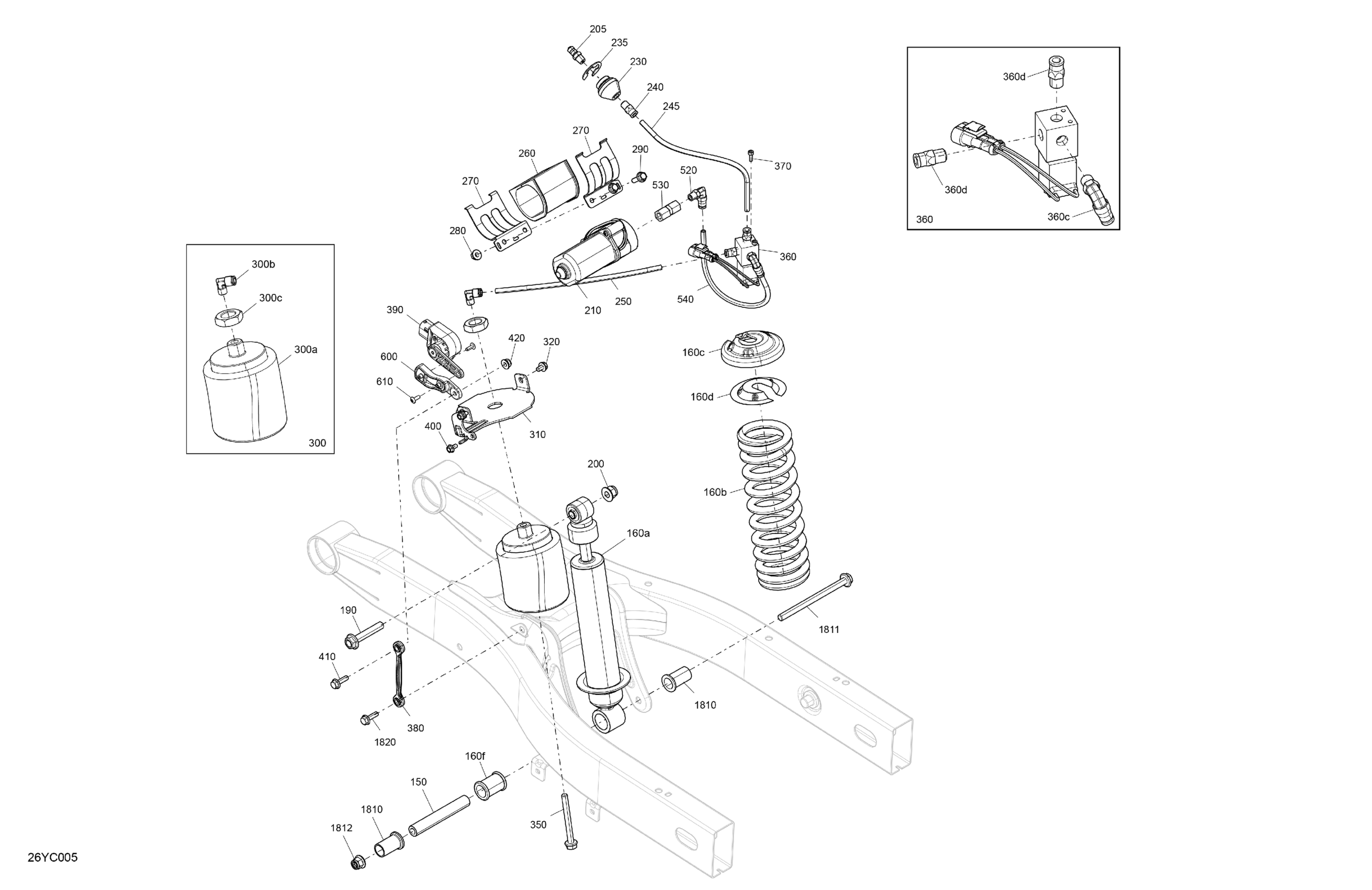

Can-Am RT LIMITED - Dark Edition - Hyper Silver, 2023 Suspension - Rear Shock Diagram

Shock Absorber Shaft

Shock Absorber

Shock Absorber Spring

Spring Stopper

Cap

Urethane Cushion

Hex. Flange Screw M10 X 55

Hex. Flange Elastic M10 x 1.5

Air Valve

Compressor

Pneumatic Connector

Circlip

Connector

Hose 4.32Mm 3000Mm Long

Hose 4.32Mm 3000Mm Long

Compressor Isolator

Compressor Bracket

Hex. Flange Nut M6

Hex. Flange Screw M6 X 20

Air Damper Kit

Not Available As Spare Parts

Elbow 90°

Jam Nut M20

Support Plate

Hex. Forming Screw M6 X 10

Hex. Flange Screw M8 X 75

Air Pressure Manifold | Included 360 to 360d

Elbow 90°

Connector

Torx Head Screw M4 X 12

Tie Rod

Suspension Sensor

Hex. Flange Screw M5 X 10

Hex. Flange Screw M6 X 20

Hex. Flange Nut M6

Elbow 90°

Ckeck Valve

Hose 4.32Mm 3000Mm Long

Lever

Torx Truss PT K40 x 12

Spacer

Hex. Flange Screw M10 X 140

Hex. Flange Elastic Nut M10

Hex. Flange Screw M6 X 20, Scotch Grip
