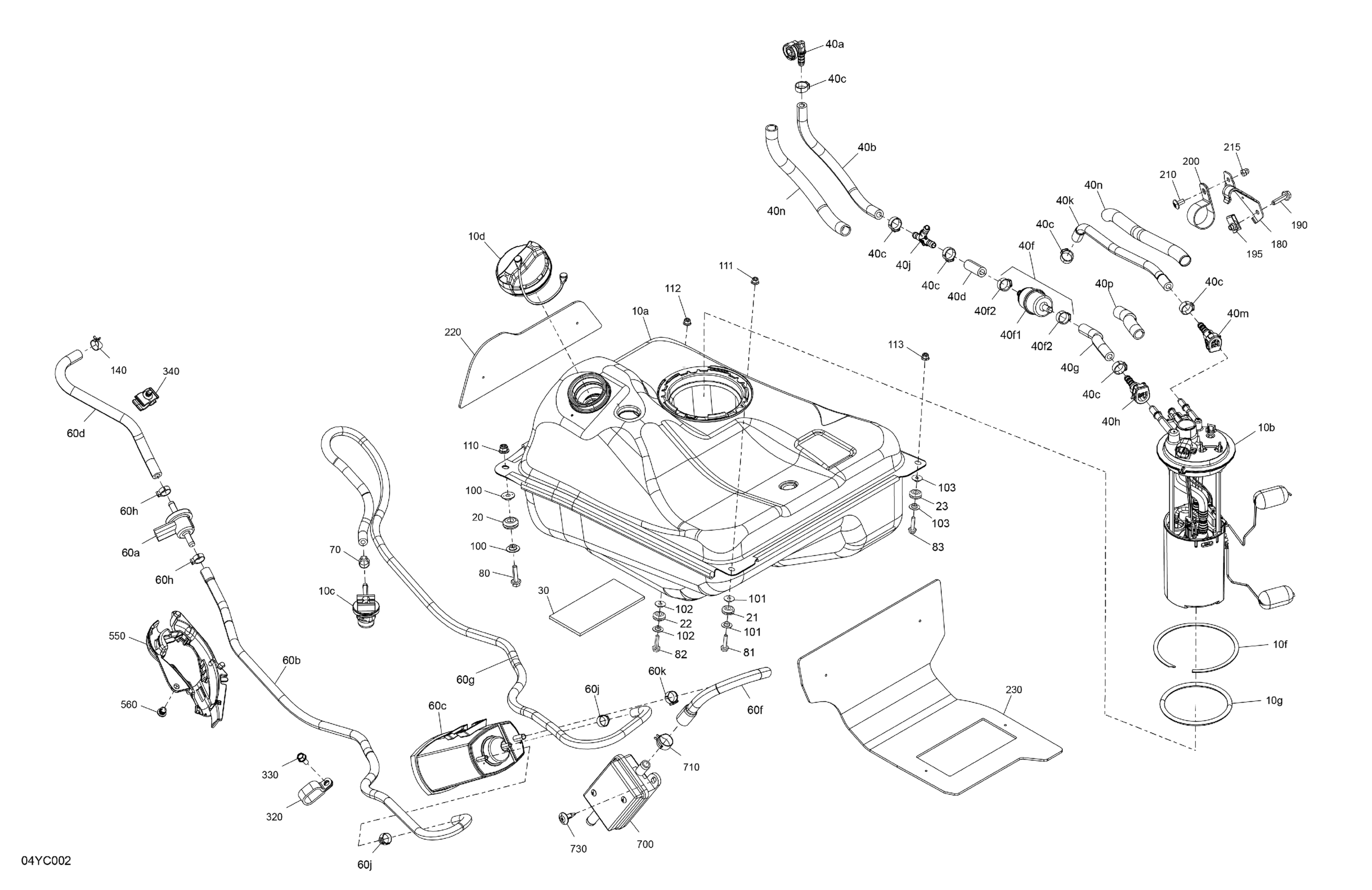

Can-Am RT LIMITED - Dark Edition - Hyper Silver, 2023 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank

709001447

$599.99

10b

Fuel Pump Module

709000370

$372.49

10c

Rollover Valve

709000413

$55.99

10d

Gaz Cap

709000683

$15.82

10f

Seal Kit

219800248

$38.99

10f1

Seal Kit

219800248

$38.99

10f2

Seal Kit

219800248

$38.99

10g

Seal Kit

219800248

$38.99

10g1

Seal Kit

219800248

$38.99

10g2

Seal Kit

219800248

$38.99

20

Grommet

709000582

$4.69

21

Grommet

709000582

$4.69

22

Grommet

709000582

$4.69

23

Grommet

709000582

$4.69

30

Carpet

709000130

$14.49

40a

Elbow Fitting 90°

293710105

$14.22

40b

Fuel Line 7.9 mm, Meter

709000264

$15.99

40c

Oetiker Clamp

293650140

$2.69

40d

Fuel Line 7.9 mm, Meter

709000265

$12.99

40f

Fuel Filter

513034047

$21.99

40f1

Fuel Filter

513034047

$21.99

40f2

Oetiker Clamp

293650125

$3.29

40g

Fuel Line 7.9 mm, Meter

709000264

$15.99

40h

Female Quick Fitting Ass'y

709000684

$15.49

40j

Y Fitting

513034117

$6.14

40k

Formed Hose

709001199

$15.99

40m

Quick Connect Pipe Fitting

293710192

$12.49

40n

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40p

Tubing 16 Mm 1000Mm Long

219704408

$7.49

60a

Bleed Valve

709000443

$73.99

60b

Hose, 880MM

709000656

$31.99

60c

Vapor Canister

709000090

$90.99

60d

Hose, 275MM

709000657

$12.99

60f

Hose, 238MM

709001112

$28.99

60g

Hose, 1275MM

709000658

$30.49

60h

Crimp Clamp, 15.3-706R

293650047

$3.29

60j

Oetiker Gear Clamp

293650025

$3.09

60k

Oetiker Clamp

293650140

$2.69

70

Oetiker Gear Clamp

293650025

$3.09

80

Hex. Flange Screw M6 X 25

207662544

$0.64

81

Hex. Flange Screw M6 X 25

207662544

$0.64

82

Hex. Flange Screw M6 X 25

207662544

$0.64

83

Hex. Flange Screw M6 X 25

207662544

$0.64

100

Bushing

709001287

$2.89

101

Bushing

709001287

$2.89

102

Bushing

709001287

$2.89

103

Bushing

709001287

$2.89

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

111

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

113

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

140

Universal Spring Clamp

513033029

$5.39

180

Fuel Filter Support

709000452

$19.49

190

Hex. Flange Screw M6 X 25

207662544

$0.64

195

Panel Nut M6 X 1.0

250100198

$2.11

200

Open Clamp

513033047

$5.19

210

Torx Truss Screw M6 X 12

250000767

$2.00

215

Domed Hexagonal Nut Din.1587

232361453

$1.68

220

Heat Shield

709001374

$20.99

230

Heat Shield

709001375

$38.99

320

Open Clamp

709000057

$5.39

330

Hex. Flange Screw M6 X 12

210261250

$1.90

340

Hose Support

709000571

$4.65

550

Hose Support

709000814

$6.66

560

Panel Fastener

518321954

$7.69

700

Air Filter

709000524

$45.99

710

Spring Clamp

513033865

$4.49

730

Tuflock Phillips Plastic Screw

414745900

$1.69
