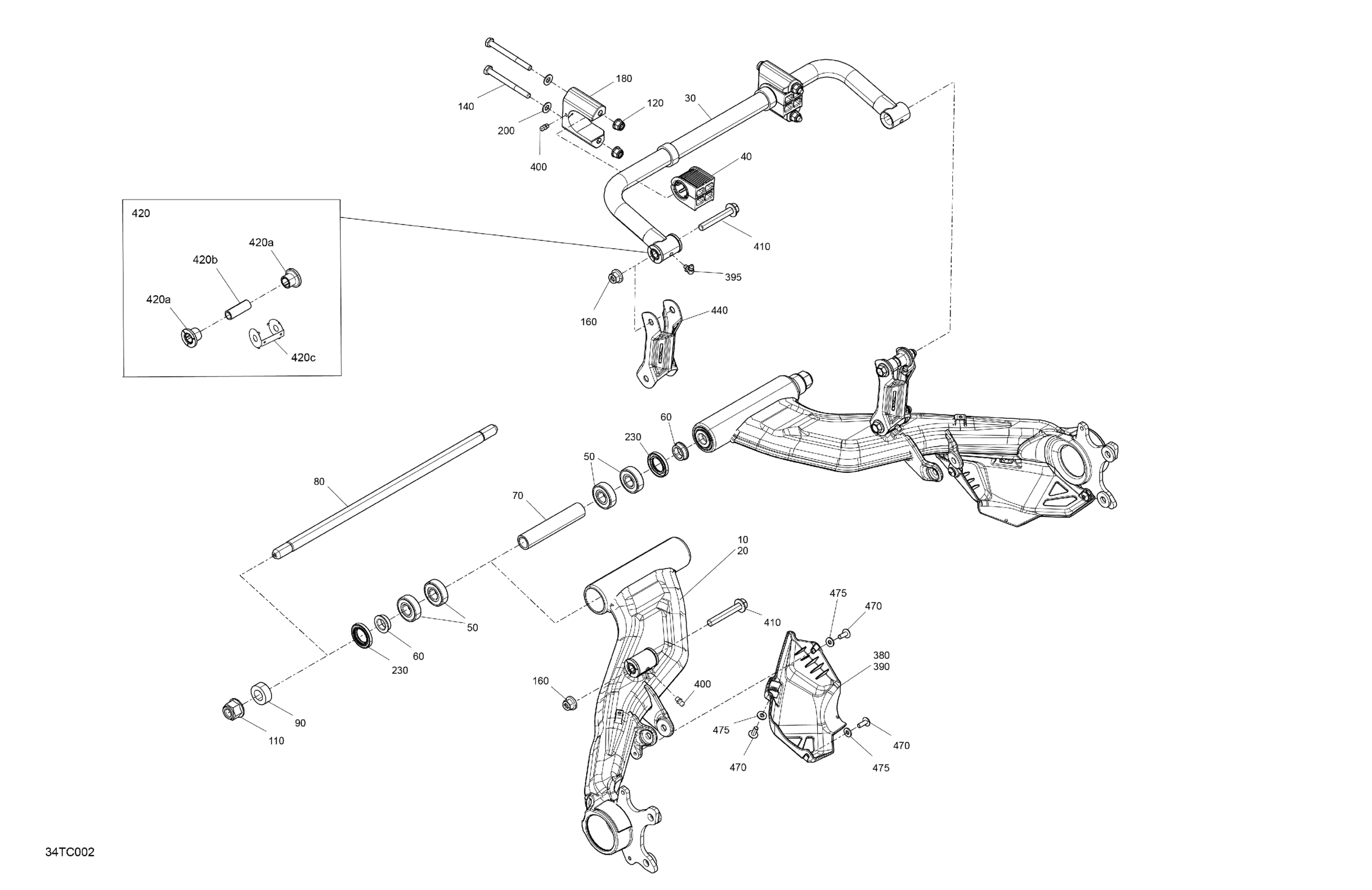

Can-Am Outlander 850 EFI - STD - (2HPA) 2023 Suspension - Rear Components Diagram

Description

Price

LH Swing Arm

706003041

$276.09

RH Swing Arm

706003042

$276.09

Sway Bar

706003050

$117.13

Stabilizer Bar Bushing

706004641

$9.04

Ball Bearing

293350145

$12.54

Spacer

706001282

$10.37

Spacer

706002259

$26.09

Axial Pivot M16

706001664

$64.90

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Screw M8 X 85

250001035

$1.46

160

Hex. Flange Elastic Nut M10

233201436

$1.74

180

Bushing Holder

706001099

$29.82

200

Flat Washer 8 mm

234081410

$0.69

230

Seal

293200144

$4.52

380

LH Protector | All Except Packages XXC & Hunting Edition

706003052

$14.90

390

RH Rear CV Joint Guard

706005102

$14.90

395

Grease Fitting 90°

293550056

$1.04

400

Grease Fitting

250000315

$4.82

410

Hex. Flange Screw M10 X 65

207606536

$3.61

420

Suspension Arm Bushing Kit | Includes 4

703500875

$13.76

420a

Not Available As Spare Parts

XXX

Unavailable

420b

Not Available As Spare Parts

XXX

Unavailable

420c

Not Available As Spare Parts

XXX

Unavailable

440

Sway Bar Linkage

706001020

$11.72

470

Tork Screw M6 X 16

250000534

$1.74

475

Flat Washer

250200039

$0.70
