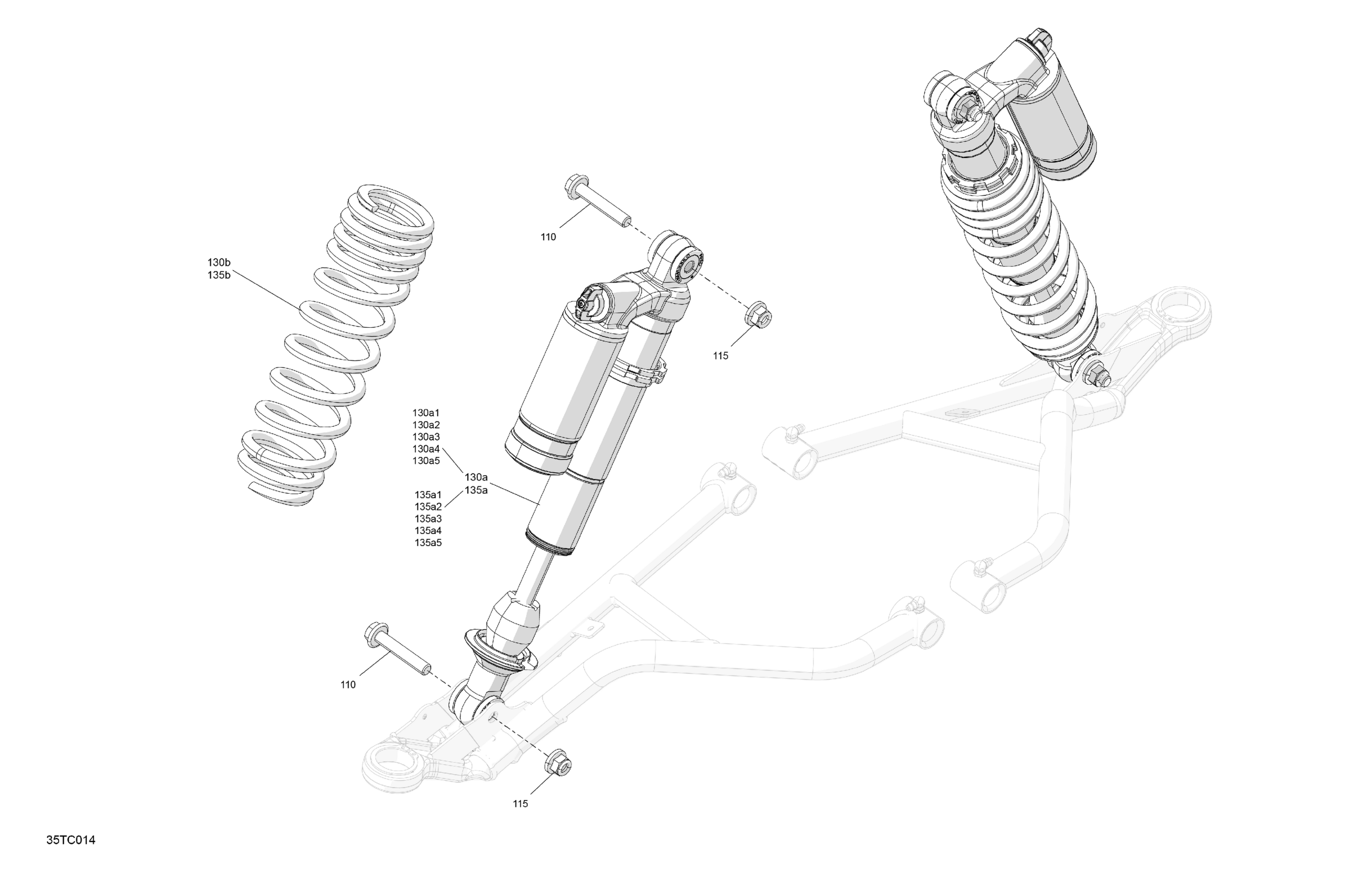

Can-Am Renegade 1000R EFI - XXC - 2023 Suspension - Front Shocks Diagram

Description

Price

110

Hex. Flange Screw M10 X 55

207605546

$2.11

115

Hex. Flange Elastic Nut M10

233201436

$2.11

130a

Front Shock Absorber | Includes 130a to 130a5

706204836

$679.99

130a1

Bushing

715900649

$10.49

130a2

Seal

715900472

$15.49

130a3

Sleeve

715900473

$27.99

130a4

Spacer

715900650

$10.99

130a5

Spacer

715900651

$10.99

130b

Carbon Black, Compression Spring

706205141

$100.49

135a

Front Shock Absorber | Includes 130a to 130a5

706204836

$679.99

135a1

Bushing

715900649

$10.49

135a2

Seal

715900472

$15.49

135a3

Sleeve

715900473

$27.99

135a4

Spacer

715900650

$10.99

135a5

Spacer

715900651

$10.99

135b

Carbon Black, Compression Spring

706205141

$100.49
