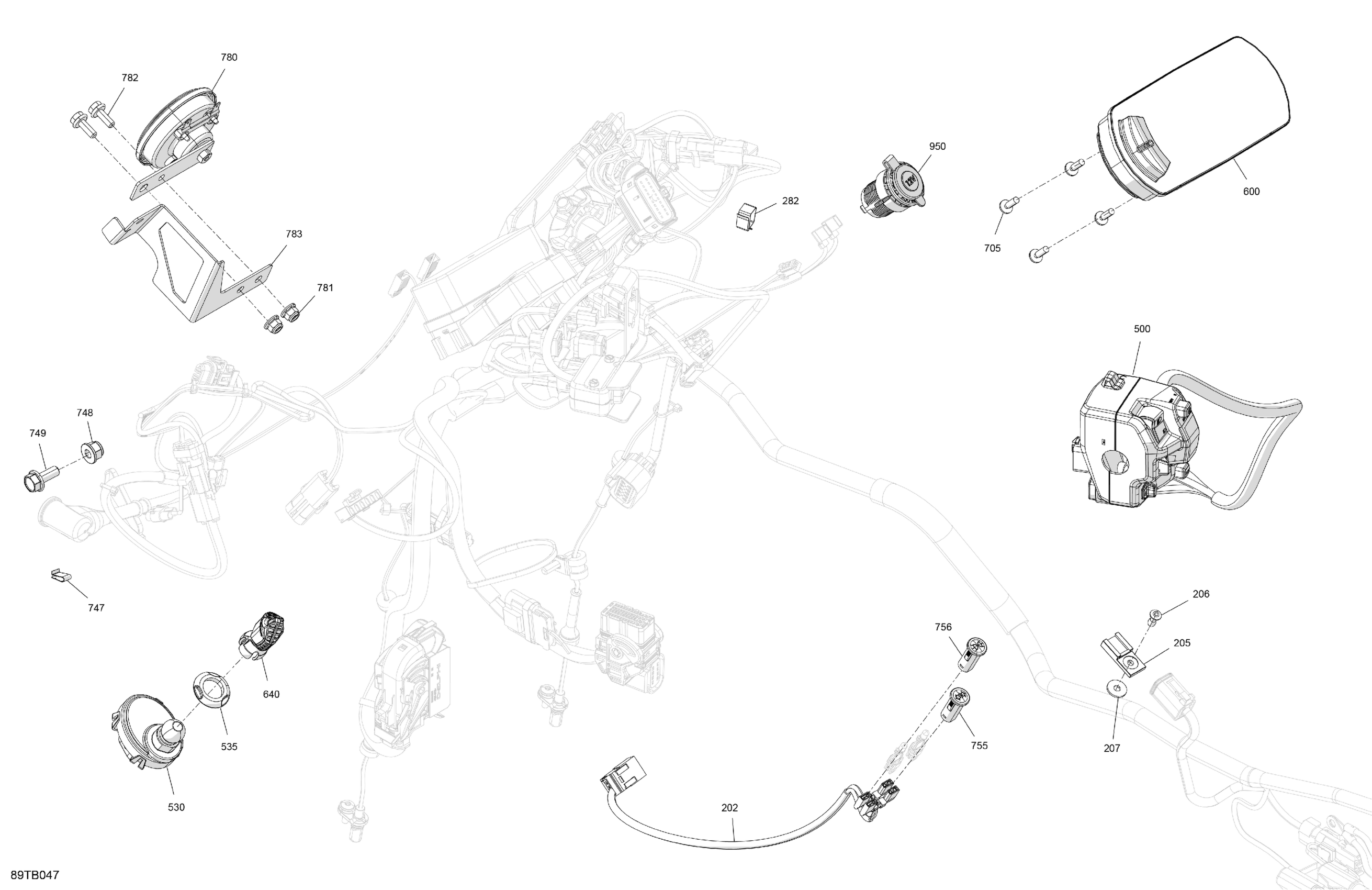

Can-Am Renegade T 1000 EFI - XXC - T Regulation, 2022 Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$22.36

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.46

282

Clip

710010204

$1.40

500

LH Front Multifunction Switch

710006945

$228.33

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

535

Specialized Nut

278004274

$2.72

600

Multifunction Gauge Compact Mono

710008108

$364.90

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

705

Torx Screw K50 X 16

250000720

$1.39

747

Clip

414479100

$1.81

748

Hex. Flange Elastic Nut M8

233281414

$1.14

749

Hex. Flange Screw M8 X 20

207682044

$0.92

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

783

Horn Support

710006112

$5.90

950

DC Outlet

710001248

$31.17
