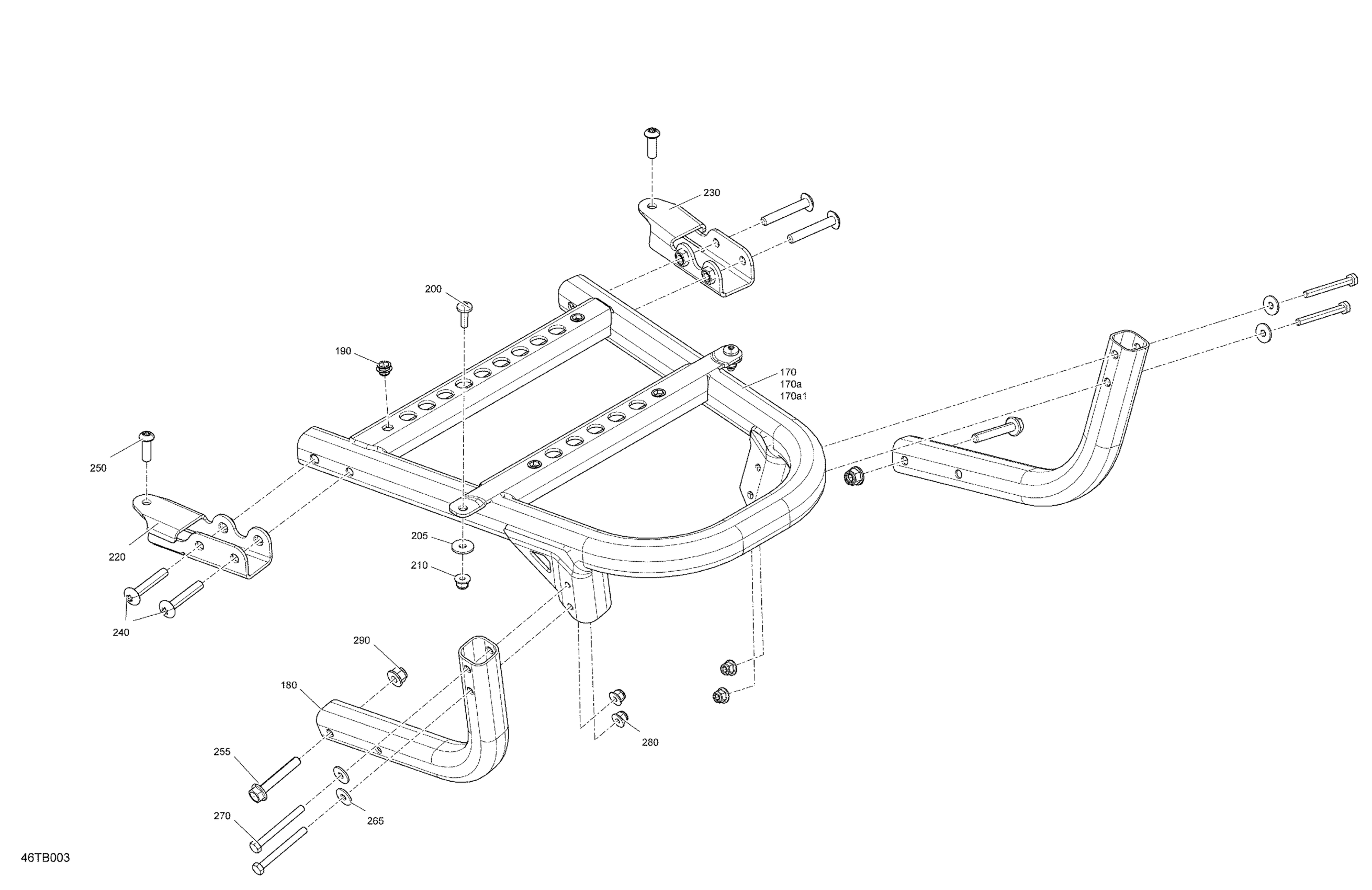

Can-Am Renegade T 1000 EFI - XXC - T Regulation, 2022 Body - Rear Bumper Diagram

Description

Price

170

Deep Black, Rear Support | Includes 170 to 170a1

705016126

Unavailable

170a

Kit Rear Bumper

715001894

$229.82

170a1

Rear Bumper

705016098

Unavailable

180

Deep Black, Rear Pillar

705016209

$29.82

190

Insert Half Hex Body M6 x 1.0

250100199

$2.54

200

Torx Screw M6 X 20

250000712

$1.74

205

Flat Washer

224061201

$1.11

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

220

LH Front Bracket

705004977

$31.31

230

RH Front Bracket

705004978

$31.31

240

Torx Screw M8 X 50 S.GRIP

250000844

$5.54

250

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

255

Hex. Flange Screw M8 X 50

207685044

$1.39

265

Stainless Steel Flat Washer

234062670

$1.74

270

Hex. Flange Screw M6 X 60

250000778

$3.61

280

Hex. Flange Elastic Nut M6

233261494

$1.26

290

Hex. Flange Elastic Nut M8

233281414

$1.14
