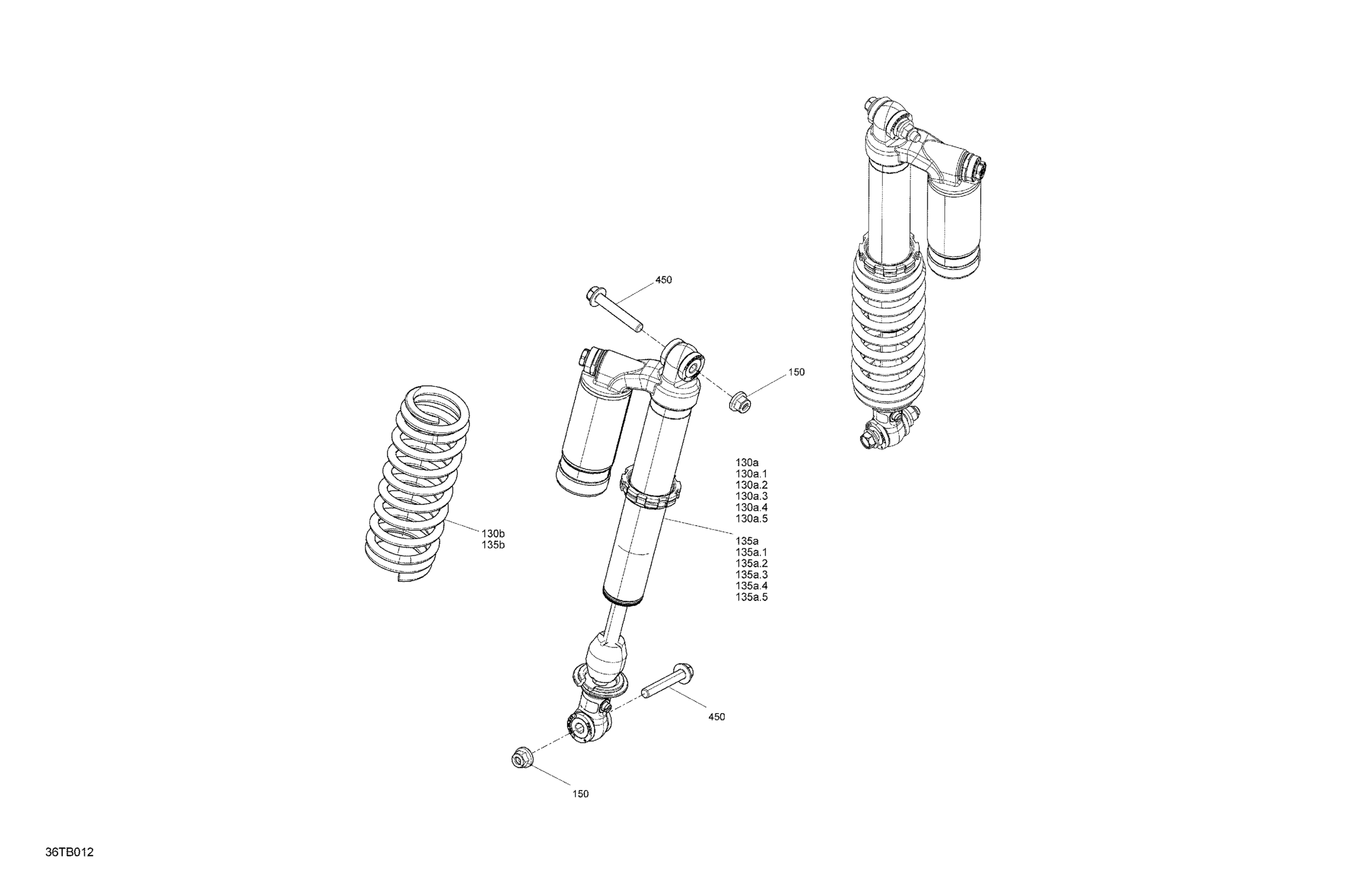

Can-Am Outlander 1000R EFI - XXC - 2022 Suspension - Rear Shocks Diagram

Description

Price

130a

Rear Shock Absorber | Includes 135a to 135a5

706004492

$679.99

130a.1

Bushing

715900649

$10.49

130a.2

Seal

715900472

$15.49

130a.3

Sleeve

715900473

$27.99

130a.4

Spacer

715900650

$10.99

130a.5

Spacer

715900651

$10.99

130b

Magma Red, Compression Spring

706004071

$96.49

135a

Rear Shock Absorber | Includes 135a to 135a5

706004492

$679.99

135a.1

Bushing

715900649

$10.49

135a.2

Seal

715900472

$15.49

135a.3

Sleeve

715900473

$27.99

135a.4

Spacer

715900650

$10.99

135a.5

Spacer

715900651

$10.99

135b

Magma Red, Compression Spring

706004071

$96.49

150

Hex. Flange Elastic Nut M10

233201436

$2.11

450

Hex. Flange Screw M10 X 6

207606046

$4.12
