07- Body - Front Section

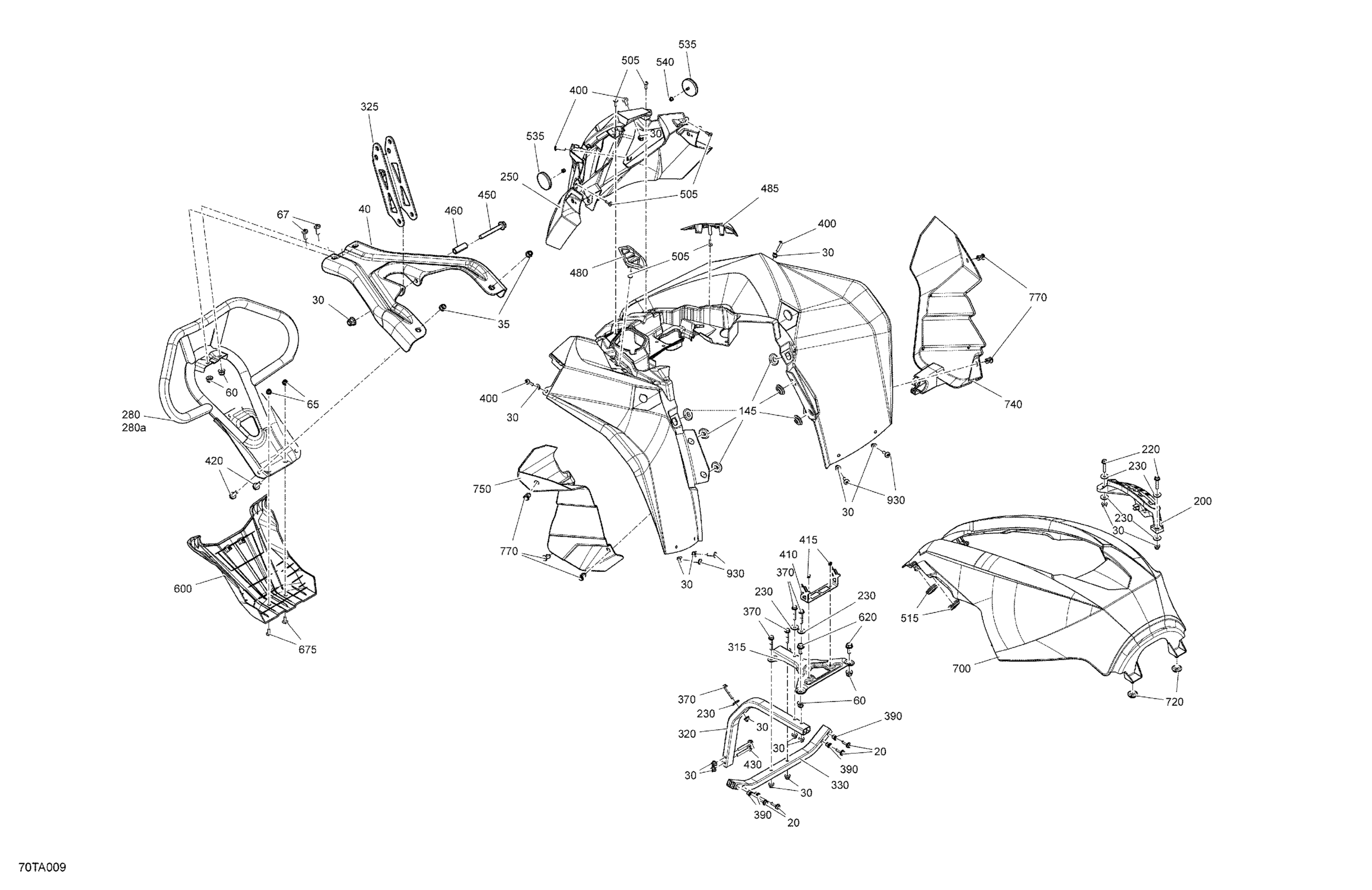

Can-Am 003 - Renegade 850 EFI - STD_XXC - North America, 2021 07- Body - Front Section Diagram
#
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
35
Hex. Flange Elastic Nut M8
233281434
Unavailable
40
Black, Bumper Support | Package XXC, Model Black
705015692
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
65
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
67
Torx Screw M8 X 20, Scotch Grip
250000740
Unavailable
145
Oval Washer
705000321
Unavailable
200
Lever Indicator
705003838
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Front Facia
705003948
Unavailable
280
Black, Front Bumper | Package XXC, Model Black
705015695
Unavailable
280a
Front Bumper
705011635
Unavailable
315
Bracket
705003599
Unavailable
320
Front Bent Sectional Tube
705016094
Unavailable
325
Black, Support | Package XXC, Model Black
705015691
Unavailable
330
Bent Sectional Tube
705016093
Unavailable
370
Hex. Flange Screw M6 X 35
207663544
Unavailable
390
Insert
293450275
Unavailable
400
Torx Screw M6 X 25
250000758
Unavailable
410
Fuse Holder
710002482
Unavailable
415
Pop Rivet 3/16"
390402400
Unavailable
420
Hex. Flange Screw M8 X 25
207682534
Unavailable
430
Hex. Flange Screw M6 X 45
207664544
Unavailable
450
Hex. Flange Screw M6 X 50
207665044
Unavailable
460
Spacer
705005809
Unavailable
480
LH Grille
705008137
Unavailable
485
RH Grille
705008138
Unavailable
505
Torx Screw K50 X 16
250000720
Unavailable
515
Oblong Grommet
705003668
Unavailable
535
Amber Reflector | Except Europe Model
705011222
Unavailable
540
Flange Elastic Nut M5
233251434
Unavailable
600
Front Bumper Plate
705004850
Unavailable
620
Hex. Flange Screw M8 X 20
207682044
Unavailable
675
Torx Screw M6 X 16
250000755
Unavailable
700
Central Panel Kit
715007455
Unavailable
700
Central Panel Kit | Package XXC
715007460
Unavailable
720
Grommet
705003264
Unavailable
740
RH Front Wheel Arch Protector
705017922
Unavailable
750
LH Front Wheel Arch Protector
705017926
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
930
Torx Screw M6 X 20
250000712
Unavailable
