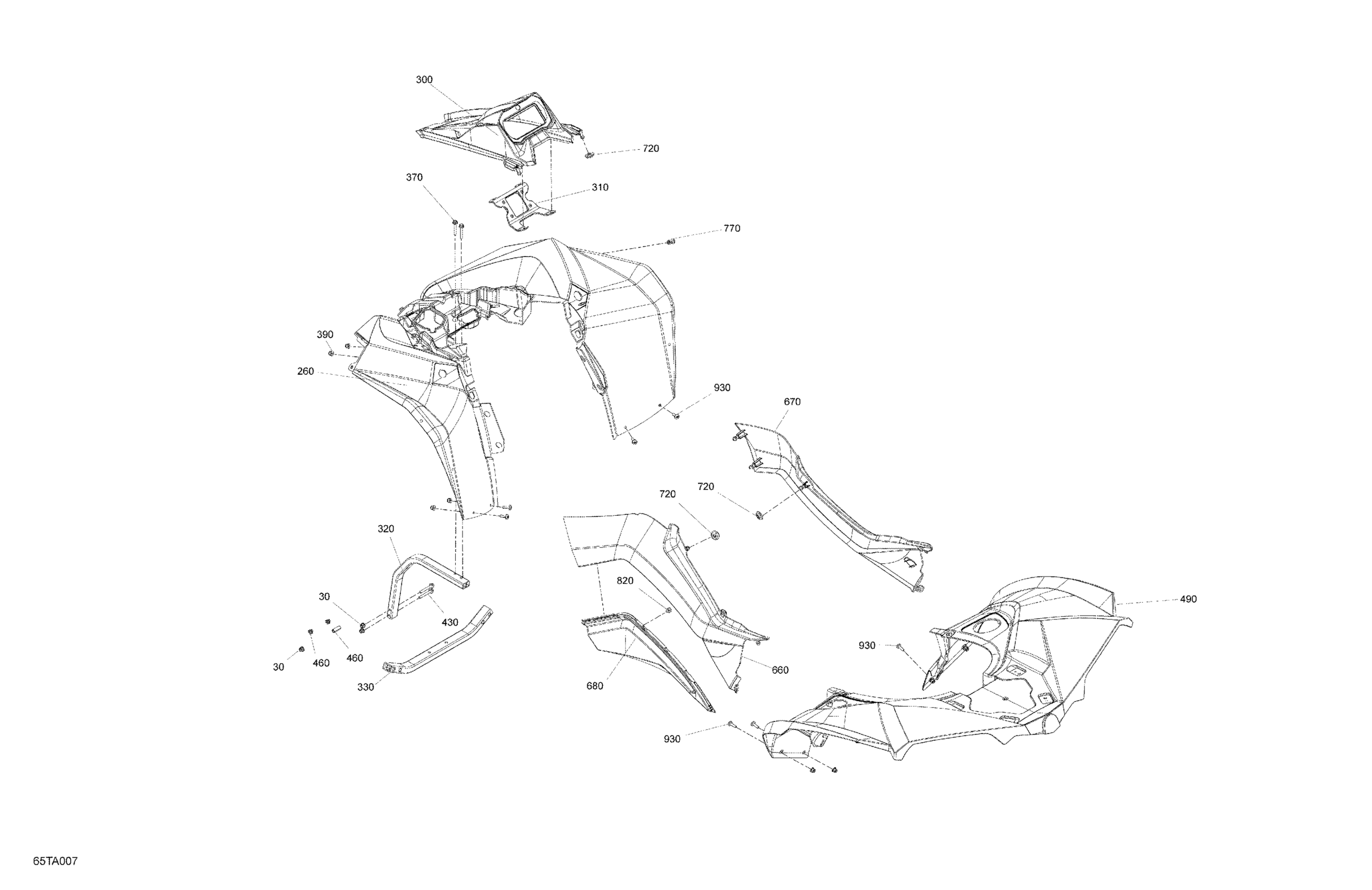

Can-Am Renegade 850 EFI - STD_XXC - 2021 Body - Fender Kit Diagram

Description

Price

Flange Elastic Nut M6

233261434

$4.44

260

Northern Lichen, Front Fender Ass'y

715007445

$139.99

300

Gauge Support

705015167

$45.99

310

Int Gauge Support

705015168

$7.29

320

Front Bent Sectional Tube

705016094

$104.99

330

Bent Sectional Tube

705016093

$104.99

370

Hex. Flange Screw M6 X 35

207663544

$0.90

390

Insert

293450275

$12.99

460

Spacer

705005809

$12.99

490

Northern Lichen, Rear Fender Kit

715007449

$409.99

490

Carbon Black, Rear Fender Kit | Model XXC

715007452

$469.99

660

Black, LH Lateral Panel

705002958

$43.99

660

Northern Lichen, LH Lateral Panel

705015358

$43.99

670

Black, RH Side Panel

705002959

$43.99

670

Northern Lichen, RH Lateral Panel

705015359

$43.99

680

Panel Extension

705004988

$15.49

720

Grommet

705003264

$4.09

770

Tuflok Plastic Rivet

293150230

$1.47

820

Rubber Bumper

293830005

$8.09

430

Hex. Flange Screw M6 X 45

207664544

$1.46

930

Torx Screw M6 X 20

250000712

$2.11
