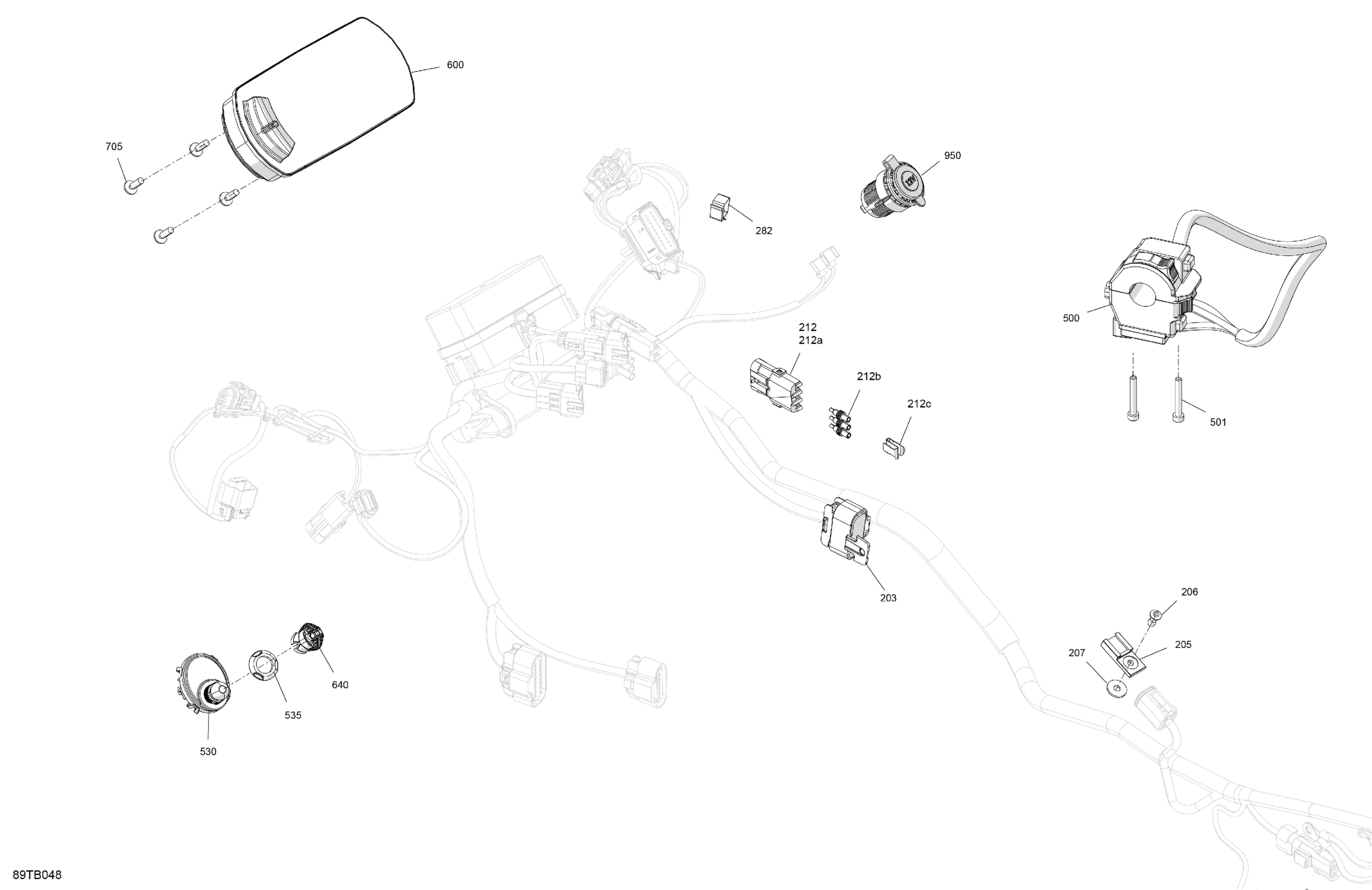

Can-Am 003 - Renegade 850 EFI - STD - North America, 2022 08- Electric - Front Section Diagram

DPS Connector Cap | Not Shown

710005760

Unavailable

Clip

270000141

Unavailable

Pop Rivet 3/16 X ,551

293150301

Unavailable

Washer | DS 650 X

391301600

Unavailable

Connector Ass'y | STD / Includes 7 to 10

710000917

Unavailable

Female Terminal Housing, 3 Circuits | XT Models

278000281

Unavailable

Wire Seal

278000216

Unavailable

Clip

710000992

Unavailable

Clip

710010204

Unavailable

Multi Fonction Control | Package STD

710006229

Unavailable

Socket Head Screw M5 X 35

205053588

Unavailable

Terminal Dess One-Wire | Except Model Europe

515178840

Unavailable

Specialized Nut

278004274

Unavailable

Multifunction Gauge Compact Mono

710008108

Unavailable

Grey Key RFID | Except Model Europe, Except T3

710004964

Unavailable

Torx Screw K50 X 16

250000720

Unavailable

DC Outlet

710001248

Unavailable
