- 003 - Renegade 850 EFI - North America, 2020
10- Electrical System - Main Section

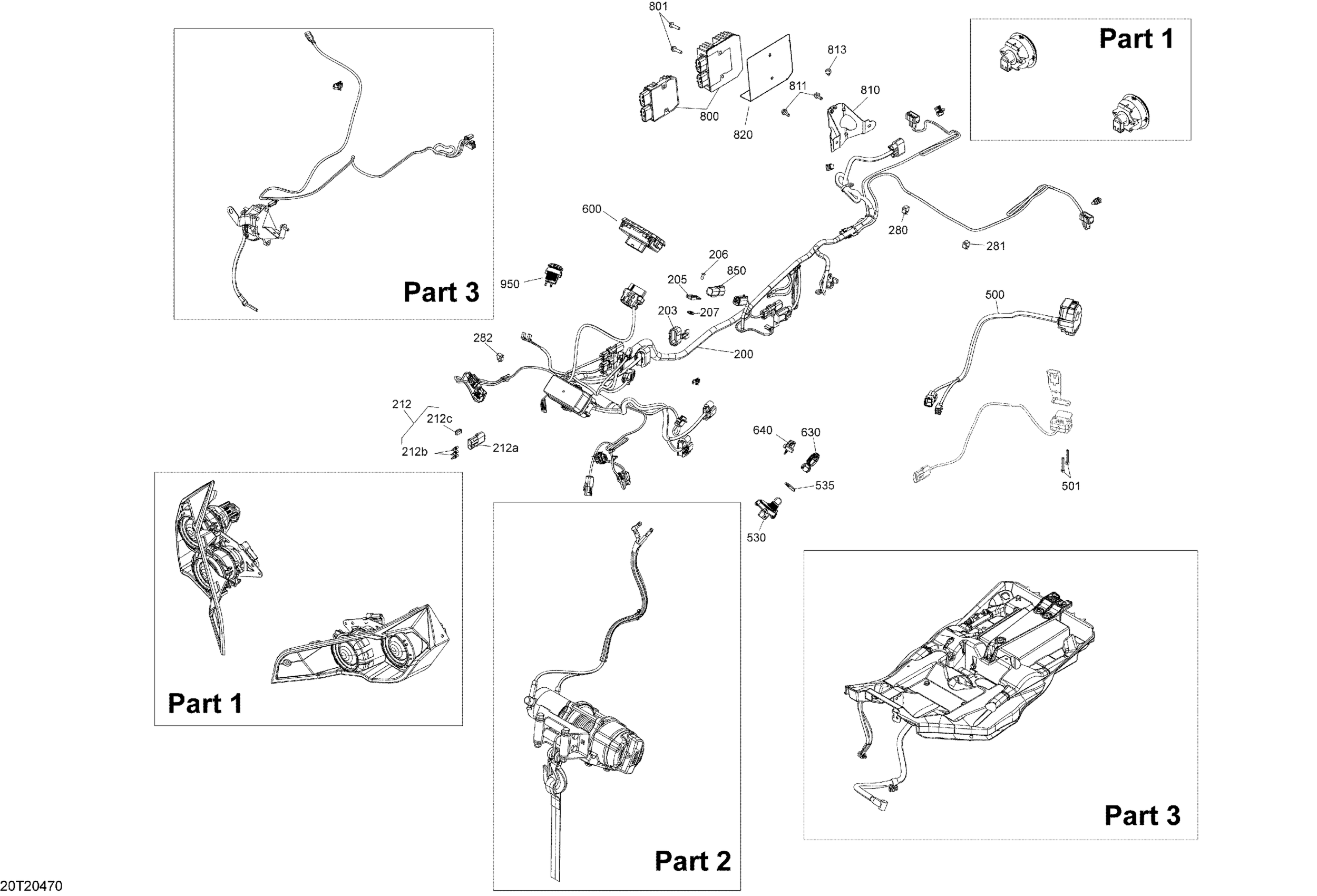

Can-Am 003 - Renegade 850 EFI - North America, 2020 10- Electrical System - Main Section Diagram
#
Description
Price
200
Harness | Package XXC
710006239
Unavailable
203
DPS Connector Cap | Not Shown
710005760
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
212
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
212a
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
212b
Wire Seal
278000216
Unavailable
212c
Clip
710000992
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
282
Clip
414227300
Unavailable
500
Switch Handle
710006134
Unavailable
500
Multi Fonction Control | Package STD
710006229
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
535
Safety Nut (DESS Switch)
278002963
Unavailable
600
Speedometer
710006216
Unavailable
630
Green Key RFID | Except Model Europe, Except T3
710005232
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
800
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
800
Voltage Regulator
710005842
Unavailable
801
Hex. Flange Forming Screw M6 X 25
210262550
Unavailable
810
Rectifier Support
710002587
Unavailable
811
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
813
Rubber Bumper
293830005
Unavailable
820
Deflector
710006746
Unavailable
850
Housing
710003006
Unavailable
950
DC Outlet
710001248
Unavailable
