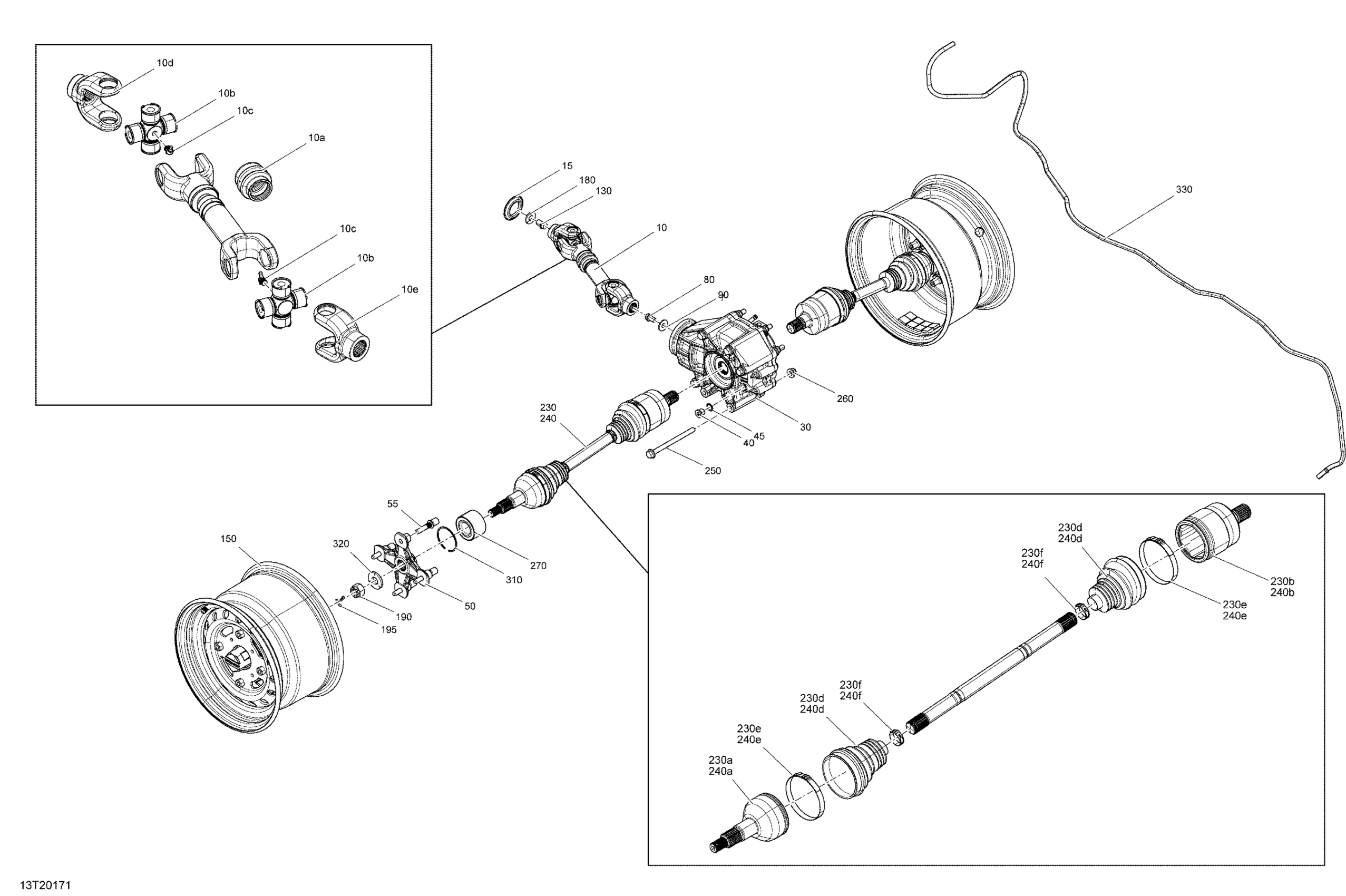

Can-Am Renegade 850 EFI - 2020 Rear Drive - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit

703500988

$328.49

10a

Rubber Boot

715900118

$14.30

10b

Universal Joint Ass'y | T3

703500846

$59.49

10c

Grease Fitting | T3

715900295

$5.24

10d

Yoke

715900499

$24.99

10e

Yoke

715900438

$24.99

15

Protector

705501123

$7.55

30

Rear Final Drive Unit | Includes 30 to 30n

705503536

$1,292.99

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub Ass'y

705501716

$105.99

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

150

Wheel Rear | STD

705502323

Unavailable

150

Wheel Rear | XMR

705502789

Unavailable

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230>230f

RH CV Joint | All Except Package XMR

705502711

$243.99

230>230g

RH CV Joint | Package XMR

705503024

$243.99

230a

CV Joint

705501776

$259.49

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230b

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230e

Oetiker Clamp, 82.1 mm

715900241

$10.33

230f

Oetiker Clamp, 27.3 mm

715900242

$10.33

230g

Joint Protector

705501842

$8.85

240>240f

LH CV Joint | All Except Package XMR

705502710

$243.99

240>240g

LH CV Joint | Package XMR

705503025

$243.99

240a

CV Joint

705501776

$259.49

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership | Package XMR

705503031

Unavailable

240c

Circlip

705501781

$6.50

240d

Boot Kit

705501864

$42.49

240e

Oetiker Clamp, 82.1 mm

715900241

$10.33

240f

Oetiker Clamp, 27.3 mm

715900242

$10.33

240g

Joint Protector

705501842

$8.85

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
