Description

Price

10

Platinum Silver, Chassis Tunnel Module 137" | Model Platinum Silver/Spartan Red

518334120

Unavailable

10

Deep Black, Chassis Tunnel Module 137" | Model Deep Black

518334319

Unavailable

10a

Insert M5 - 0.8

293450267

$4.59

10c2

Clinch Stud M6 X 20

250300027

$2.09

10d

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10j

RH Footrest

518332921

$42.99

10k

LH Footrest

518332306

$42.99

10r

RH Suspension Bracket This part replaces 518329622.

518329622

Unavailable

10s

LH Rear Suspension Arm Anchorange

518332310

$45.99

10t

Stirrup Reinforcement

518331253

$21.99

10u

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10v

LH Under Chassis Reinforcement

518331744

$18.99

10w

RH Under Chassis Reinforcement

518331745

$19.99

10x

RH Roller

518329023

$194.99

10y

LH Exterior Footrest Reinforcement

518332307

$194.99

10z

Radiator Tunnel 137 Ass'y

518334488

$720.49

10ab

Clinch Nut M6 Hexsert

605636003

$4.23

10ac

Rear Cap

518328990

$22.49

10ad

RH Footrest

518333006

$40.99

10af

LH Footrest

518333007

$40.99

10ak

Avex Rivet

390909100

$0.30

10am

Rivet Hucklok

293150163

$2.99

10an

Avex Rivet

390909200

$0.30

10aq

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10ar

Rivet Ornit 6,5 X 16.5

293150267

$2.40

20

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329980

$10.13

1750a

Rubber Bumper

293830005

$8.09

1760

Front Protective Structure

518333935

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1800

Rear Protector

518329979

$9.23

1820

Central Protective Structure

518333936

$3.69

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40

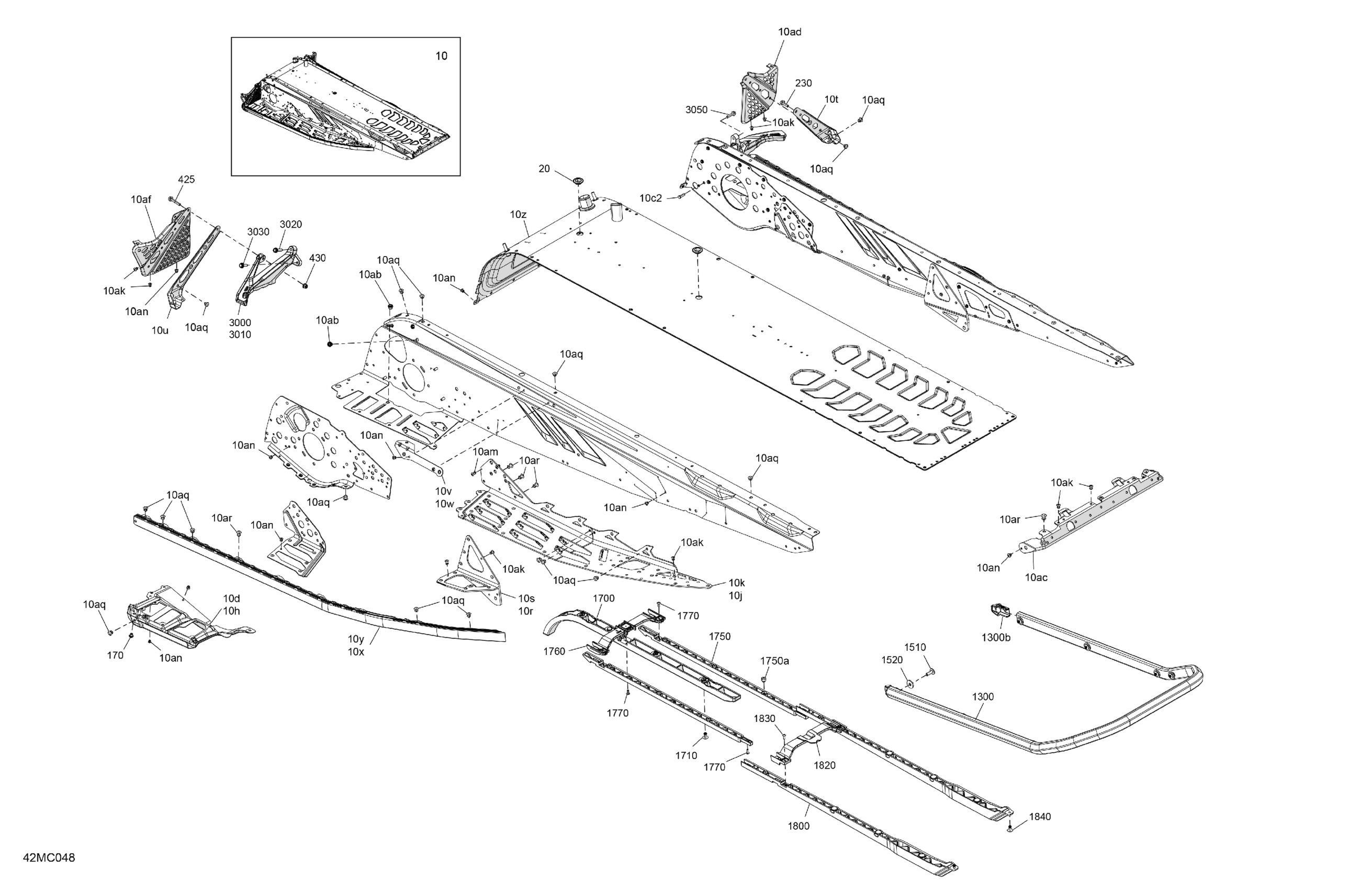

Ski-Doo 003 - RENEGADE 850 E-TEC - XRS - Europe, 2023 06- Frame - System - Rear Section Diagram

Platinum Silver, Chassis Tunnel Module 137" | Model Platinum Silver/Spartan Red

Deep Black, Chassis Tunnel Module 137" | Model Deep Black

Insert M5 - 0.8

Clinch Stud M6 X 20

Deep Black, LH Footrest Reinforcement

Deep Black, RH Footrest Reinforcement

RH Footrest

LH Footrest

RH Suspension Bracket This part replaces 518329622.

LH Rear Suspension Arm Anchorange

Stirrup Reinforcement

Deep Black, LH Chassis Reinforcement

LH Under Chassis Reinforcement

RH Under Chassis Reinforcement

RH Roller

LH Exterior Footrest Reinforcement

Radiator Tunnel 137 Ass'y

Clinch Nut M6 Hexsert

Rear Cap

RH Footrest

LH Footrest

Avex Rivet

Rivet Hucklok

Avex Rivet

Rivet Ornit 6,5 X 12.5

Rivet Ornit 6,5 X 16.5

Black, Plug

Insert M5 - 0.8

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 x 35

Elastic Flange Nut M6 X 1.0

Rear Bumper | Includes 1300 to 1300b

Cap

Torx Screw M6 X 1.0 X 18, Scotch Grip

Flat Washer

Front Protector

Pop Rivet 3/16”

Rear Protector

Rubber Bumper

Front Protective Structure

Torx Truss PT K40 x 12

Rear Protector

Central Protective Structure

Torx Truss PT K40 x 12

Pop Rivet 3/16”

Black Toe-hold

Toe Hold

Hex. Flange Screw M6 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex Screw Forming M6 x 25
