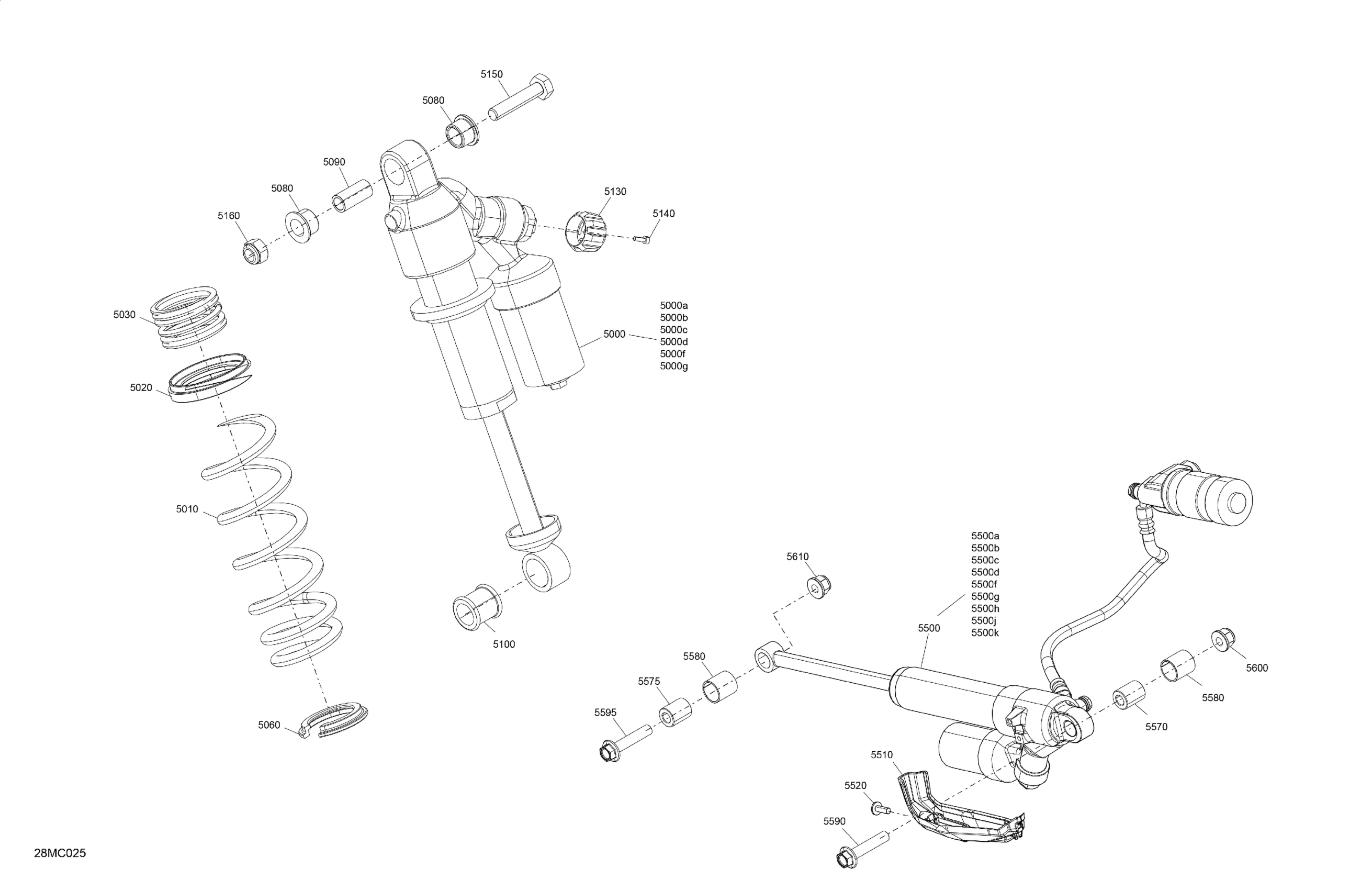

Ski-Doo RENEGADE 850 E-TEC - XRS - Europe, 2023 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock Absorber | Includes 5000 to 5000g

503196191

$812.99

5000a

O-Ring

415093807

$33.55

5000b

Piston Ring | Not Shown

415093806

$14.52

5000c

Screw | Not Shown

505070399

$3.88

5000d

O-Ring

505070400

$4.25

5000f

Circlip - Call your local BRP dealership

715900076

$3.91

5000g

O-Ring

415093804

$4.25

5010

Black, Spring (162mm) Long

503193065

$69.37

5020

Spring Spacer

503192743

$12.27

5030

Black, Spring (52mm) Short

503193479

$85.79

5060

Spring Stopper

503194270

$16.39

5080

Urethane Bushing

503189117

$6.67

5090

Bushing | Includes 240d to 240d1

503189282

$4.06

5100

Bushing

503189271

$10.15

5130

Adjustment Button

503196209

$2.49

5140

Allen Screw M3 X 0.5 X 10

250000644

$2.00

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5160

Elastic Locking Nut M10

233601466

$2.00

5500

Rear Shock Absorber | Includes 5500 to 5500k

503195622

$1,529.99

5500a

O-Ring

415093807

$33.55

5500b

Piston Ring | Not Shown

415093806

$14.52

5500c

Screw | Not Shown

505070399

$3.88

5500d

O-Ring

505070400

$4.25

5500f

Circlip - Call your local BRP dealership

715900076

$3.91

5500g

O-Ring

415093804

$4.25

5500h

Bolt

415093810

$14.52

5500j

O-Ring

415038700

$38.78

5500k

Base Valve

415130165

$72.36

5510

Connector Guard

503196017

$10.93

5520

Torx Screw M5 X 14

250000742

$1.37

5570

Axle Shock Absorber

503196509

$9.69

5575

Axle Shock Absorber

503196596

$9.93

5580

Leg Cushion

505072663

$7.18

5590

Hex Flange Screw M8 X 40

207684056

$1.40

5595

Cap Screw Hex. M10 X 40

207204056

$7.09

5600

Elastic Flange Nut M8

233281466

$0.96

5610

Elastic Locking Nut M10

233601466

$2.00
