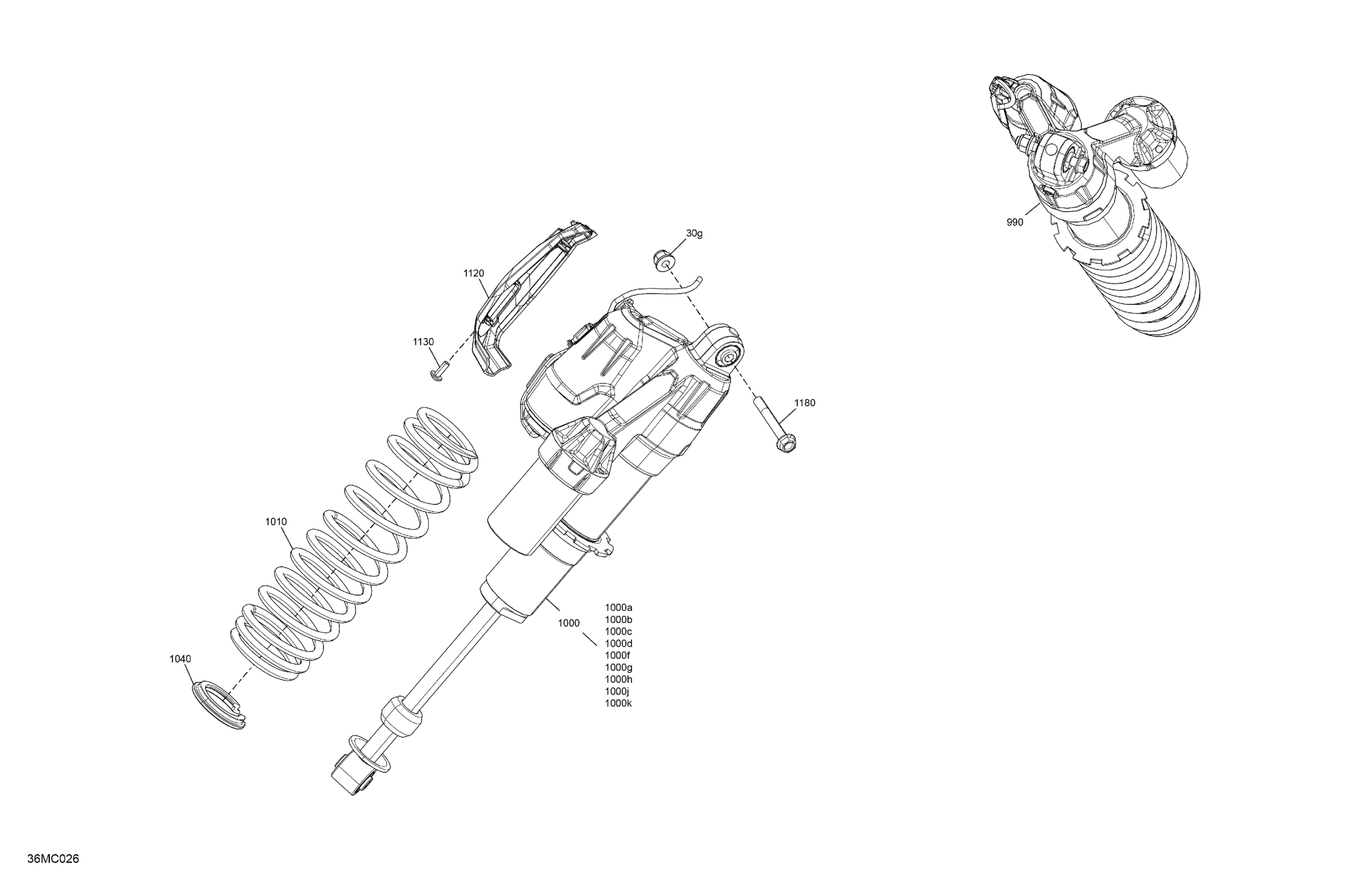

Ski-Doo 003 - RENEGADE 850 E-TEC - XRS - Europe, 2023 05- Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber

505074749

$1.00

1000

LH Front Shock Absorber | Includes 1000 to 1000k

505074750

$1.00

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Screw | Not Shown

505070399

$4.12

1000f

O-Ring

505070400

$4.54

1000g

Circlip - Call your local BRP dealership

715900076

$4.12

1000h

O-Ring

415093804

$4.54

1000j

Bolt

415093810

$16.86

1000k

O-Ring

415038700

$42.99

1000m

Base Valve

415130165

$78.99

1010

Deep Black, Spring

505075194

$62.49

1040

Spring Stopper

503194270

$19.99

1120

Connector Guard

503196017

$11.64

1130

Torx Screw M5 X 14

250000742

$1.47

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

30g

Elastic Flange Nut M8

233281466

$1.01
