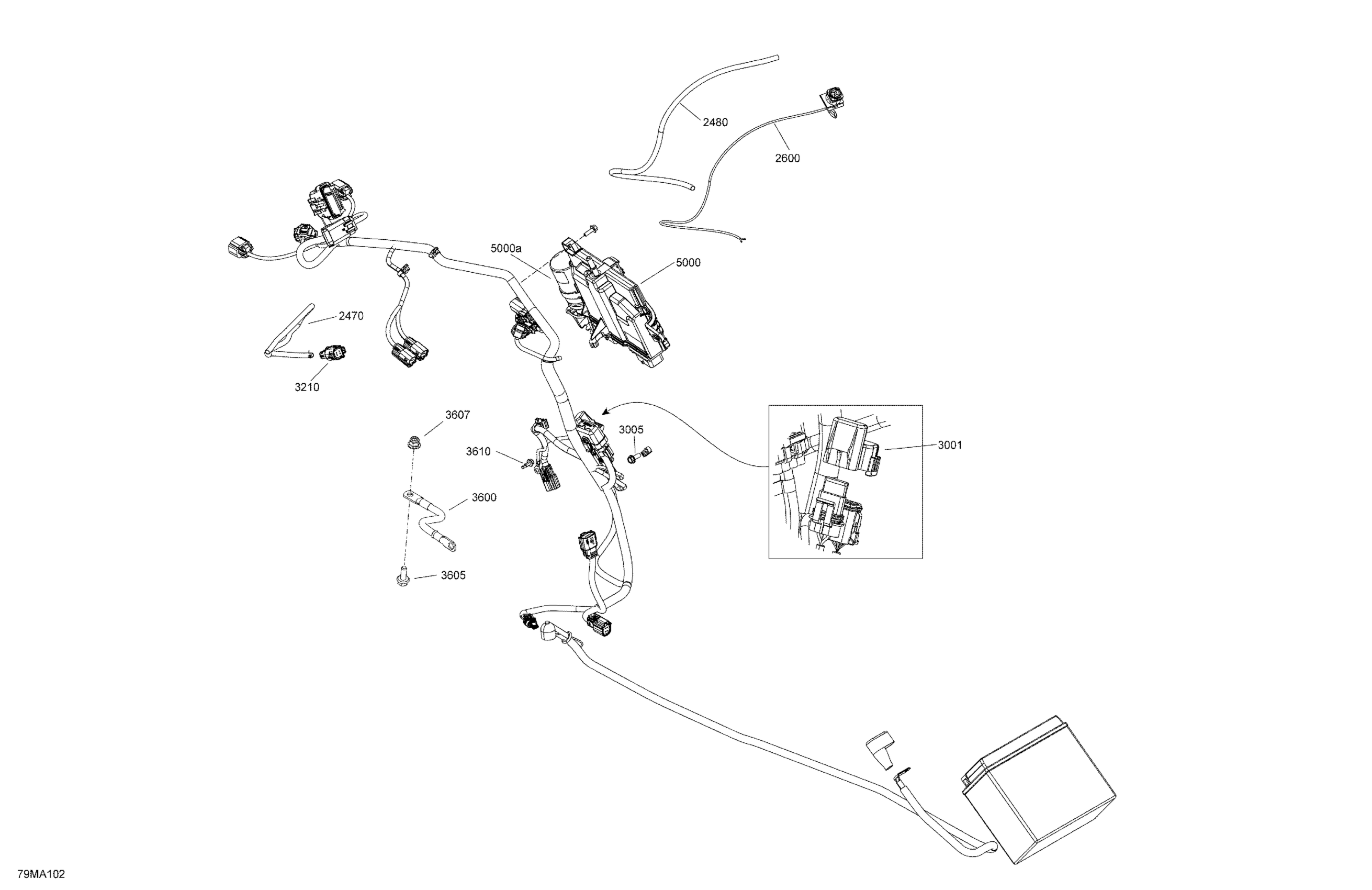

Ski-Doo 003 - RENEGADE 600R E-TEC - X Iron Dog - North America, 2021 08- Electric - Lower Section Diagram

Description

Price

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3600

Ground Wire

515178248

$24.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.00

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

5000

Engine Control Module | Includes 5000 to 5000a

512061392

$589.99

5000a

Capacitor

515177272

$90.99
