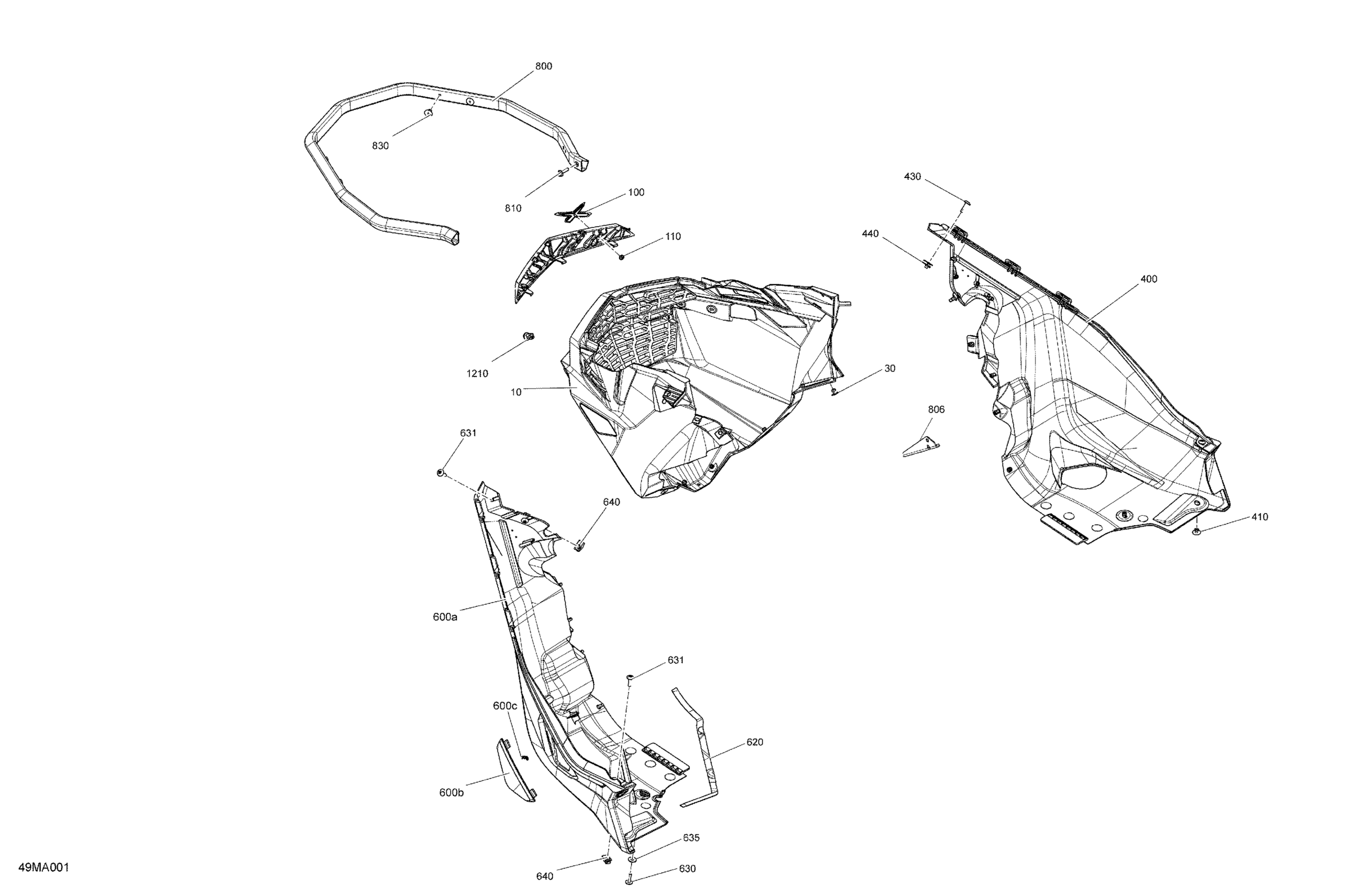

Ski-Doo 003 - RENEGADE 600R E-TEC - X Iron Dog - North America, 2021 07- Body - Bottom Pan Diagram

Description

Price

Front Bottom Pan

502007673

$149.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

100

Emblem X

291004770

$10.99

110

Push Nut

250100206

$1.01

400

RH Bottom Pan

502007929

$109.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

600a

LH Bottom Pan

502007675

$129.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Neoprene Seal (1PAC=3M)

219704364

$27.49

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

800

Front Bumper

502007460

$170.49

806

RH Bumper Fastener

502008192

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1210

Tuflok Plastic Rivet

293150230

$1.47
