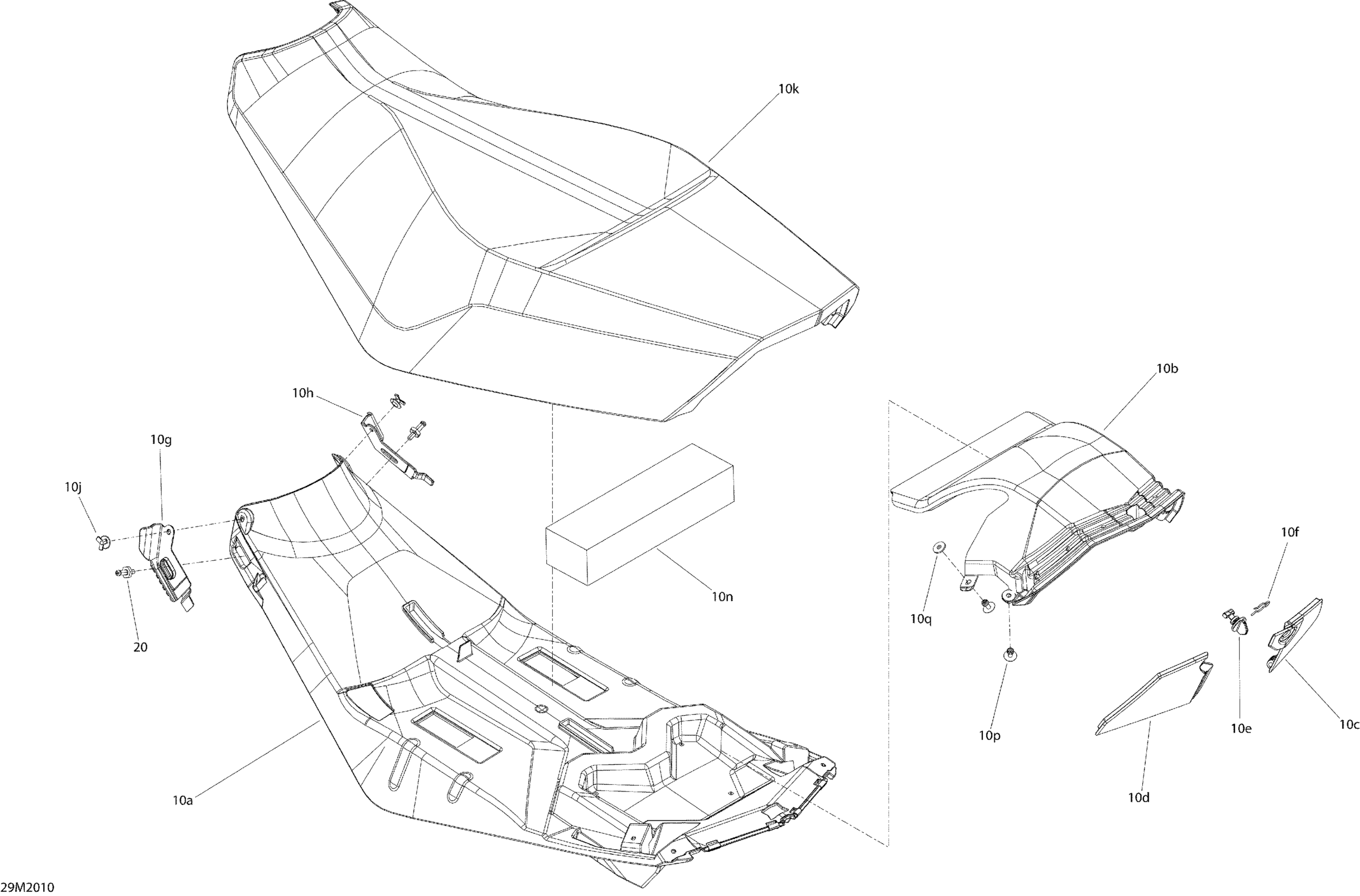

Ski-Doo 003 - RENEGADE 600R E-TEC - Enduro - North America, 2020 09- Seat - Main Section Diagram

#

Description
Price

10a

Seat Base

510006312

$67.99

10b

Seat Box

510005413

$23.99

10c

Deep Black, RH Door

510005414

$6.19

10d

Deep Black, LH Door

510005415

$7.19

10e

Lock

510005416

$1.69

10f

Hairpin Clip

250400055

$5.19

10g

LH Seat Latch

510006530

$7.19

10h

RH Seat Latch

510006531

$7.19

10j

Pop Rivet 3/16"

293150222

$1.29

10k

Seat Foam

510006313

$139.99

10m

Heated Seat Cover | Not Shown

510006644

$319.99

10n

Foam

510005504

$9.59

10p

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

10q

Washer | DS 650 X

391301600

$0.48

20

Pin

510006514

$6.69

500

Flat Washer

224061201

$1.37

510

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

520

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44
